Suzuki DT 140 Parts Listings 1983 to 1985

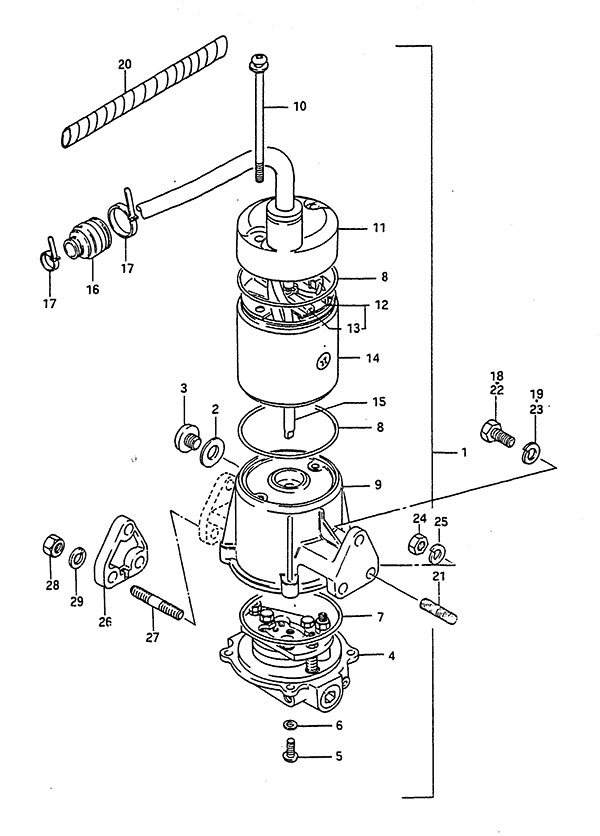

Fig. 22 - Power Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 48500-94520-02M Power Unit Assembly (NLA)
SKU: 48500-94520-02M Weight: 0.100000 Brand: Price: $ 451.10 |
Power Unit Assembly (NLA) | 1 | $ 451.10 | S/N 405549 Older | |
| 1-2 | 48500-94521-02M Power Unit Assembly (NLA)
SKU: 48500-94521-02M Weight: 0.100000 Brand: Price: $ 451.10 |
Power Unit Assembly (NLA) | 1 | $ 451.10 | S/N 405550 to 406441 | |
| 1-3 | 48500-94523-02M Power Unit Assembly (NLA)
SKU: 48500-94523-02M Weight: 0.100000 Brand: Price: $ 388.36 |
Power Unit Assembly (NLA) | 1 | $ 388.36 | S/N 406442 Newer | |
| 1-4 | 48500-94690-0ED Power Trim Power Unit Assembly (NLA)
SKU: 48500-94690-0ED Weight: 10.000000 Brand: Price: $ 1,881.86 |
Power Trim Power Unit Assembly (NLA) | 1 | $ 1,881.86 | Opt: Port Side | |
| 2 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 1 | $ 1.60 | ||
| 3 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 | ||
| 4 | 48502-94530 Pump & Valve Body (NLA)
SKU: 48502-94530 Weight: 2.000000 Brand: Price: $ 1,043.54 |
Pump & Valve Body (NLA) | 1 | $ 1,043.54 | ||
| 5-1 | 09125-05074 Screw (5x16)
SKU: 09125-05074 Weight: 0.125000 Brand: Price: $ 2.10 |
Screw (5x16) | 4 | $ 2.10 | 1983 | |
| 5-2 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 4 | $ 1.97 | 1984 to 1985 | |
| 6 | 09160-05032 Washer (NLA)
SKU: 09160-05032 Weight: 0.100000 Brand: Price: $ 0.94 |
Washer (NLA) | 4 | $ 0.94 | ||
| 7 | 48585-94520 Valve Body O-Ring
SKU: 48585-94520 Weight: 0.060000 Brand: Price: $ 5.34 |
Valve Body O-Ring | 1 | $ 5.34 | ||
| 8 | 09280-70005 O-Ring
SKU: 09280-70005 Weight: 0.060000 Brand: Price: $ 6.34 |
O-Ring | 2 | $ 6.34 | ||
| 9 | 48570-94521-02M Reservoir Assembly (NLA)
SKU: 48570-94521-02M Weight: 0.100000 Brand: Price: $ 74.99 |
Reservoir Assembly (NLA) | 1 | $ 74.99 | ||
| 10 | 31281-94510 Through Bolt
SKU: 31281-94510 Weight: 0.200000 Brand: Price: $ 15.49 |
Through Bolt | 2 | $ 15.49 | ||
| 11 | 31170-94520-02M Upper Cover (NLA)
SKU: 31170-94520-02M Weight: 0.100000 Brand: Price: $ 50.01 |
Upper Cover (NLA) | 1 | $ 50.01 | ||
| 12 | 31173-94520 Brush Holder Assembly (NLA)
SKU: 31173-94520 Weight: 0.100000 Brand: Price: $ 21.87 |
Brush Holder Assembly (NLA) | 1 | $ 21.87 | ||
| 13 | 31133-94521 Brush (NLA)
SKU: 31133-94521 Weight: 0.060000 Brand: Price: $ 12.52 |
Brush (NLA) | 2 | $ 12.52 | ||
| 16 | 31110-94520-02M Yoke Assembly (NLA)
SKU: 31110-94520-02M Weight: 0.100000 Brand: Price: $ 98.42 |
Yoke Assembly (NLA) | 1 | $ 98.42 | ||
| 15 | 31311-94520 Armature (NLA)
SKU: 31311-94520 Weight: 5.000000 Brand: Price: $ 350.16 |
Armature (NLA) | 1 | $ 350.16 | ||
| 16 | 33899-95500 PTT Cable Seal (NLA)
SKU: 33899-95500 Weight: 0.100000 Brand: Price: $ 7.29 |
PTT Cable Seal (NLA) | 1 | $ 7.29 | ||
| 17 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 2 | $ 4.73 | ||
| 18 | 09100-08219 Bolt (8x20) (NLA)
SKU: 09100-08219 Weight: 0.060000 Brand: Price: $ 2.27 |
Bolt (8x20) (NLA) | 3 | $ 2.27 | 1983 | |
| 19 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | 1983 | |
| 20 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | 1983 | |
| 21 | 09108-08130 Stud Bolt (8x20)
SKU: 09108-08130 Weight: 0.200000 Brand: Price: $ 5.67 |
Stud Bolt (8x20) | 2 | $ 5.67 | 1984 to 1985 | |
| 22 | 09100-08219 Bolt (8x20) (NLA)
SKU: 09100-08219 Weight: 0.060000 Brand: Price: $ 2.27 |
Bolt (8x20) (NLA) | 1 | $ 2.27 | 1984 to 1985 | |
| 23 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 1 | $ 1.49 | 1984 to 1985 | |
| 24 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | 1984 to 1985 | |
| 25 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | 1984 to 1985 | |
| 26 | 48131-95200 Power Unit Spacer (NLA)
SKU: 48131-95200 Weight: 0.100000 Brand: Price: $ 3.95 |
Power Unit Spacer (NLA) | 1 | $ 3.95 | Opt: Port Side | |
| 27 | 09108-08137 Stud Bolt (8x40)
SKU: 09108-08137 Weight: 0.200000 Brand: Price: $ 5.23 |
Stud Bolt (8x40) | 3 | $ 5.23 | Opt: Port Side | |
| 28 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 3 | $ 2.52 | Opt: Port Side | |
| 29 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | Opt: Port Side |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
