Suzuki DT 140 Parts Listings 1983 to 1985

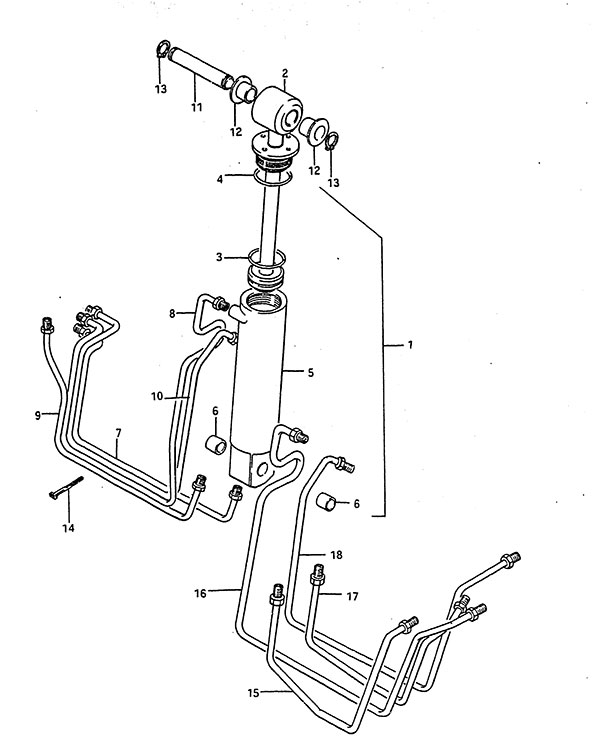

Fig. 21 - Tilt Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48400-94511-0ED Tilt Cylinder Assembly (NLA)
SKU: 48400-94511-0ED Weight: 4.000000 Brand: Price: $ 362.40 |
Tilt Cylinder Assembly (NLA) | 1 | $ 362.40 | ||
| 2 | 48401-94501 Piston & Rod Sub Assembly
SKU: 48401-94501 Weight: 4.000000 Brand: Price: $ 345.46 |
Piston & Rod Sub Assembly | 1 | $ 345.46 | ||
| 3 | 48427-94500 Tilt Piston O-Ring (NLA)
SKU: 48427-94500 Weight: 0.060000 Brand: Price: $ 2.98 |
Tilt Piston O-Ring (NLA) | 1 | $ 2.98 | ||
| 4 | 48433-94500 O-Ring (NLA)
SKU: 48433-94500 Weight: 0.060000 Brand: Price: $ 2.98 |
O-Ring (NLA) | 1 | $ 2.98 | ||
| 5 | 48441-94510 Cylinder Tube (NLA)
SKU: 48441-94510 Weight: 1.000000 Brand: Price: $ 189.82 |
Cylinder Tube (NLA) | 1 | $ 189.82 | ||
| 6 | 09303-18001 Bushing (NLA)
SKU: 09303-18001 Weight: 0.100000 Brand: Price: $ 3.04 |
Bushing (NLA) | 2 | $ 3.04 | ||
| 7-1 | 48720-94520 Tilt Inlet Tube (NLA)
SKU: 48720-94520 Weight: 0.100000 Brand: Price: $ 0.00 |
Tilt Inlet Tube (NLA) | 1 | $ 0.00 | 1983 | |
| 7-2 | 48720-94521 Tilt Inlet Tube (NLA)
SKU: 48720-94521 Weight: 0.100000 Brand: Price: $ 26.55 |
Tilt Inlet Tube (NLA) | 1 | $ 26.55 | 1984 to 1985 | |
| 8 | 48730-94521 Tilt Outlet Tube (NLA)
SKU: 48730-94521 Weight: 0.500000 Brand: Price: $ 29.41 |
Tilt Outlet Tube (NLA) | 1 | $ 29.41 | ||
| 9 | 48740-94521 Trim Inlet Tube (NLA)
SKU: 48740-94521 Weight: 0.500000 Brand: Price: $ 27.46 |
Trim Inlet Tube (NLA) | 1 | $ 27.46 | ||
| 10-1 | 48750-94520 Trim Outlet Tube (NLA)
SKU: 48750-94520 Weight: 0.100000 Brand: Price: $ 0.00 |
Trim Outlet Tube (NLA) | 1 | $ 0.00 | 1983 | |
| 10-2 | 48750-94521 Trim Outlet Tube (NLA)
SKU: 48750-94521 Weight: 0.100000 Brand: Price: $ 27.15 |
Trim Outlet Tube (NLA) | 1 | $ 27.15 | 1984 to 1985 | |
| 11 | 48321-94510 Tilt Cylinder Shaft
SKU: 48321-94510 Weight: 0.500000 Brand: Price: $ 17.82 |
Tilt Cylinder Shaft | 1 | $ 17.82 | ||
| 12 | 09306-16003 Bushing
SKU: 09306-16003 Weight: 0.060000 Brand: Price: $ 1.89 |
Bushing | 2 | $ 1.89 | ||
| 13 | 09380-16003 Circlip
SKU: 09380-16003 Weight: 0.062500 Brand: Price: $ 2.43 |
Circlip | 2 | $ 2.43 | ||
| 14 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 6 | $ 4.73 | ||
| 15 | 48720-94580 Tilt Inlet Tube (NLA)
SKU: 48720-94580 Weight: 0.100000 Brand: Price: $ 67.15 |
Tilt Inlet Tube (NLA) | 1 | $ 67.15 | Opt: Port Side | |
| 16 | 48730-94580 Tilt Outlet Tube (NLA)
SKU: 48730-94580 Weight: 0.100000 Brand: Price: $ 74.43 |
Tilt Outlet Tube (NLA) | 1 | $ 74.43 | Opt: Port Side | |
| 17 | 48740-94580 Trim Inlet Tube (NLA)
SKU: 48740-94580 Weight: 0.100000 Brand: Price: $ 74.43 |
Trim Inlet Tube (NLA) | 1 | $ 74.43 | Opt: Port Side | |
| 18 | 48750-94580 Trim Outlet Tube (NLA)
SKU: 48750-94580 Weight: 0.100000 Brand: Price: $ 74.43 |
Trim Outlet Tube (NLA) | 1 | $ 74.43 | Opt: Port Side |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
