Suzuki DT 140 Parts Listings 1983 to 1985

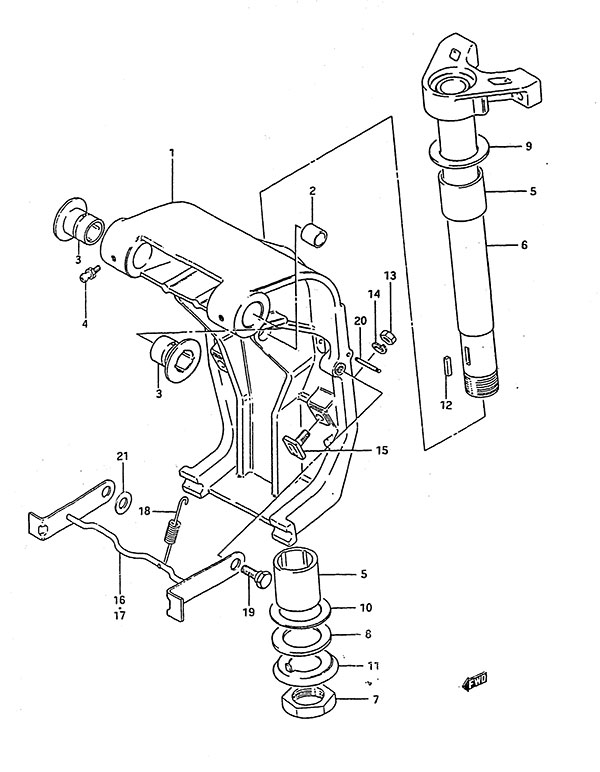

Fig. 20 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 43110-94500-02M Swivel Bracket (NLA)
SKU: 43110-94500-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Swivel Bracket (NLA) | 1 | $ 0.00 | 1983 | |
| 1-2 | 43111-94502-02M Swivel Bracket (NLA)
SKU: 43111-94502-02M Weight: 0.100000 Brand: Price: $ 124.92 |
Swivel Bracket (NLA) | 1 | $ 124.92 | S/N 405082 to 406554 | |
| 1-3 | 43111-94503-02M Swivel Bracket (NLA)
SKU: 43111-94503-02M Weight: 0.100000 Brand: Price: $ 188.50 |
Swivel Bracket (NLA) | 1 | $ 188.50 | S/N 406555 to 406620 | |
| 1-4 | 43111-94510-02M Swivel Bracket (NLA)
SKU: 43111-94510-02M Weight: 0.100000 Brand: Price: $ 134.64 |
Swivel Bracket (NLA) | 1 | $ 134.64 | 1985 | |
| 2 | 09303-18001 Bushing (NLA)
SKU: 09303-18001 Weight: 0.100000 Brand: Price: $ 3.04 |
Bushing (NLA) | 2 | $ 3.04 | ||
| 3-1 | 43211-95250 Bushing (NLA)
SKU: 43211-95250 Weight: 0.060000 Brand: Price: $ 4.82 |
Bushing (NLA) | 2 | $ 4.82 | 1983 | |
| 3-2 | 43211-94500 Bushing (NLA)
SKU: 43211-94500 Weight: 0.100000 Brand: Price: $ 4.46 |
Bushing (NLA) | 2 | $ 4.46 | 1984 | |
| 3-3 | 43211-95510 Bushing (NLA)
SKU: 43211-95510 Weight: 0.060000 Brand: Price: $ 7.24 |
Bushing (NLA) | 2 | $ 7.24 | 1985 | |
| 4-1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | 1983 to 1984 | |
| 4-2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 5 | $ 3.36 | 1985 | |
| 5 | 09306-36002 Bushing (NLA)
SKU: 09306-36002 Weight: 0.100000 Brand: Price: $ 3.25 |
Bushing (NLA) | 2 | $ 3.25 | ||
| 6 | 43740-94504-02M Pilot Shaft (NLA)
SKU: 43740-94504-02M Weight: 0.100000 Brand: Price: $ 136.21 |
Pilot Shaft (NLA) | 1 | $ 136.21 | ||
| 7-1 | 09140-33001 Nut (NLA)
SKU: 09140-33001 Weight: 0.100000 Brand: Price: $ 6.12 |
Nut (NLA) | 1 | $ 6.12 | 1983 | |
| 7-2 | 09140-33002 Nut (NLA)
SKU: 09140-33002 Weight: 0.100000 Brand: Price: $ 7.76 |
Nut (NLA) | 1 | $ 7.76 | 1984 to 1985 | |
| 8-1 | 09160-33001 Lower Washer (NLA)
SKU: 09160-33001 Weight: 0.100000 Brand: Price: $ 2.03 |
Lower Washer (NLA) | 1 | $ 2.03 | 1983 | |
| 8-2 | 09160-33002 Lower Washer (NLA)
SKU: 09160-33002 Weight: 0.100000 Brand: Price: $ 4.81 |
Lower Washer (NLA) | 1 | $ 4.81 | 1984 to 1985 | |
| 9-1 | 09160-36002 Upper Washer (NLA)
SKU: 09160-36002 Weight: 0.100000 Brand: Price: $ 2.03 |
Upper Washer (NLA) | 1 | $ 2.03 | 1983 | |
| 9-2 | 09160-36004 Upper Washer (NLA)
SKU: 09160-36004 Weight: 0.100000 Brand: Price: $ 3.09 |
Upper Washer (NLA) | 1 | $ 3.09 | 1984 to 1985 | |
| 10-1 | 09181-36005 Shim (0.3) (NLA)
SKU: 09181-36005 Weight: 0.100000 Brand: Price: $ 1.76 |
Shim (0.3) (NLA) | 1 | $ 1.76 | 1984 to 1985 | |
| 10-2 | 09181-36006 Shim (0.5) (NLA)
SKU: 09181-36006 Weight: 0.100000 Brand: Price: $ 1.67 |
Shim (0.5) (NLA) | 1 | $ 1.67 | 1984 to 1985 | |
| 11-1 | 09166-33001 Washer (NLA)
SKU: 09166-33001 Weight: 0.100000 Brand: Price: $ 1.34 |
Washer (NLA) | 1 | $ 1.34 | 1983 | |
| 11-2 | 09166-33002 Washer (NLA)
SKU: 09166-33002 Weight: 0.100000 Brand: Price: $ 3.80 |
Washer (NLA) | 1 | $ 3.80 | 1984 to 1985 | |
| 12 | 09421-05006 Key (NLA)
SKU: 09421-05006 Weight: 0.100000 Brand: Price: $ 3.65 |
Key (NLA) | 1 | $ 3.65 | ||
| 13 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 14 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 15 | 48311-94501 Trim Cylinder Ram Pad
SKU: 48311-94501 Weight: 0.200000 Brand: Price: $ 49.72 |
Trim Cylinder Ram Pad | 2 | $ 49.72 | ||
| 16 | 41220-94503-02M Tilt Lock Lever (NLA)
SKU: 41220-94503-02M Weight: 0.100000 Brand: Price: $ 27.01 |
Tilt Lock Lever (NLA) | 1 | $ 27.01 | 1983 | |
| 17-1 | 41220-95500 Tilt Lock Lever (NLA)
SKU: 41220-95500 Weight: 0.100000 Brand: Price: $ 10.43 |
Tilt Lock Lever (NLA) | 1 | $ 10.43 | 1984 | |
| 17-2 | 41220-95501-0ED Tilt Lock Lever (NLA)
SKU: 41220-95501-0ED Weight: 0.500000 Brand: Price: $ 23.82 |
Tilt Lock Lever (NLA) | 1 | $ 23.82 | 1985 | |
| 18-1 | 09443-10021 Spring (NLA)
SKU: 09443-10021 Weight: 0.100000 Brand: Price: $ 2.87 |
Spring (NLA) | 1 | $ 2.87 | 1983 | |
| 18-2 | 09443-10029 Tilt Lock Lever Spring (NLA)
SKU: 09443-10029 Weight: 0.100000 Brand: Price: $ 2.44 |
Tilt Lock Lever Spring (NLA) | 1 | $ 2.44 | 1984 to 1985 | |
| 19 | 09111-12008 Bolt (NLA)
SKU: 09111-12008 Weight: 0.200000 Brand: Price: $ 4.50 |
Bolt (NLA) | 2 | $ 4.50 | ||
| 20-1 | 41225-94500 Release Arm Pin (NLA)
SKU: 41225-94500 Weight: 0.100000 Brand: Price: $ 3.26 |
Release Arm Pin (NLA) | 1 | $ 3.26 | 1983 | |
| 20-2 | 41225-94502 Release Arm Pin
SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | 1984 to 1985 | |
| 21 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
