Suzuki DT 140 Parts Listings 1984 to 1985

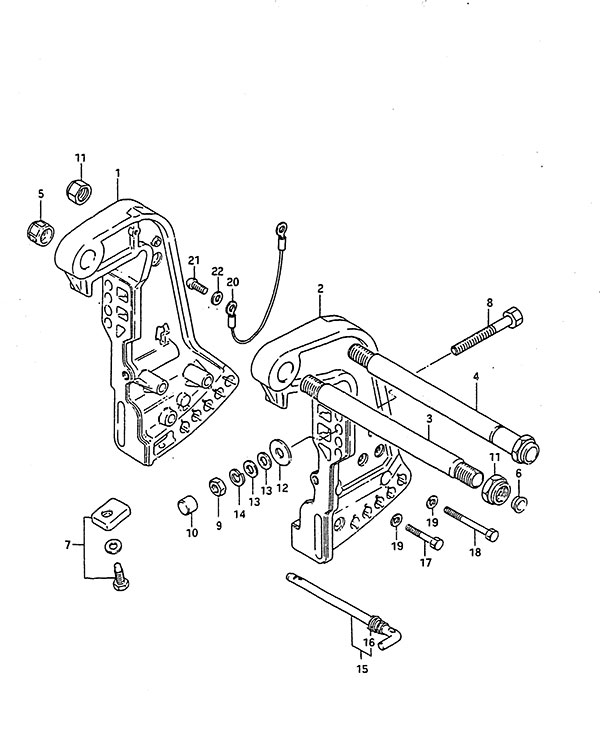

Fig. 19 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-94505-02M Starboard Clamp Bracket (NLA)
SKU: 41111-94505-02M Weight: 0.100000 Brand: Price: $ 115.24 |
Starboard Clamp Bracket (NLA) | 1 | $ 115.24 | 1984 | |
| 1-2 | 41111-94510-02M Starboard Clamp Bracket (NLA)
SKU: 41111-94510-02M Weight: 0.100000 Brand: Price: $ 57.41 |
Starboard Clamp Bracket (NLA) | 1 | $ 57.41 | 1985 | |
| 2-1 | 41121-94503-02M Port Clamp Bracket (NLA)
SKU: 41121-94503-02M Weight: 0.100000 Brand: Price: $ 116.09 |
Port Clamp Bracket (NLA) | 1 | $ 116.09 | 1984 | |
| 2-2 | 41121-94530-02M Port Clamp Bracket (NLA)
SKU: 41121-94530-02M Weight: 0.100000 Brand: Price: $ 60.92 |
Port Clamp Bracket (NLA) | 1 | $ 60.92 | 1985 | |
| 3 | 41131-94510 Clamp Bracket Shaft (NLA)
SKU: 41131-94510 Weight: 0.100000 Brand: Price: $ 45.22 |
Clamp Bracket Shaft (NLA) | 1 | $ 45.22 | 1984 | |
| 4 | 41130-95510 Clamp Bracket Shaft (NLA)
SKU: 41130-95510 Weight: 0.100000 Brand: Price: $ 48.05 |
Clamp Bracket Shaft (NLA) | 1 | $ 48.05 | 1985 | |
| 5 | 41151-94500 Clamp Bracket Shaft Cap
SKU: 41151-94500 Weight: 0.060000 Brand: Price: $ 2.85 |
Clamp Bracket Shaft Cap | 1 | $ 2.85 | ||
| 6 | 41152-94500 Clamp Bracket Shaft Plug
SKU: 41152-94500 Weight: 0.125000 Brand: Price: $ 2.22 |
Clamp Bracket Shaft Plug | 1 | $ 2.22 | ||
| 7 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 8 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | Requires Ref# 23 | |
| 9 | 09140-12028 Nut
SKU: 09140-12028 Weight: 0.060000 Brand: Price: $ 3.60 |
Nut | 4 | $ 3.60 | ||
| 10 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 11-1 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 2 | $ 25.75 | 1984 | |
| 11-2 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | 1985 | |
| 12 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 13 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 6 | $ 1.80 | ||
| 14 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | ||
| 15 | 45420-95500 Tilt Lock Pin
SKU: 45420-95500 Weight: 0.250000 Brand: Price: $ 35.98 |
Tilt Lock Pin | 1 | $ 35.98 | ||
| 16 | 09441-24002 Spring (NLA)
SKU: 09441-24002 Weight: 0.100000 Brand: Price: $ 1.96 |
Spring (NLA) | 1 | $ 1.96 | ||
| 17 | 09100-10155 Bolt (10x50)
SKU: 09100-10155 Weight: 0.250000 Brand: Price: $ 5.56 |
Bolt (10x50) | 2 | $ 5.56 | ||
| 18 | 09100-10264 Bolt (10x80)
SKU: 09100-10264 Weight: 0.120000 Brand: Price: $ 8.05 |
Bolt (10x80) | 4 | $ 8.05 | ||
| 19 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 6 | $ 1.86 | ||
| 20 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 2 | $ 12.07 | S/N 406555 Newer | |
| 21 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 3 | $ 1.88 | S/N 406555 Newer | |
| 22 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 3 | $ 2.90 | S/N 406555 Newer | |
| 23 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
