Suzuki DT 140 Parts Listings 1983

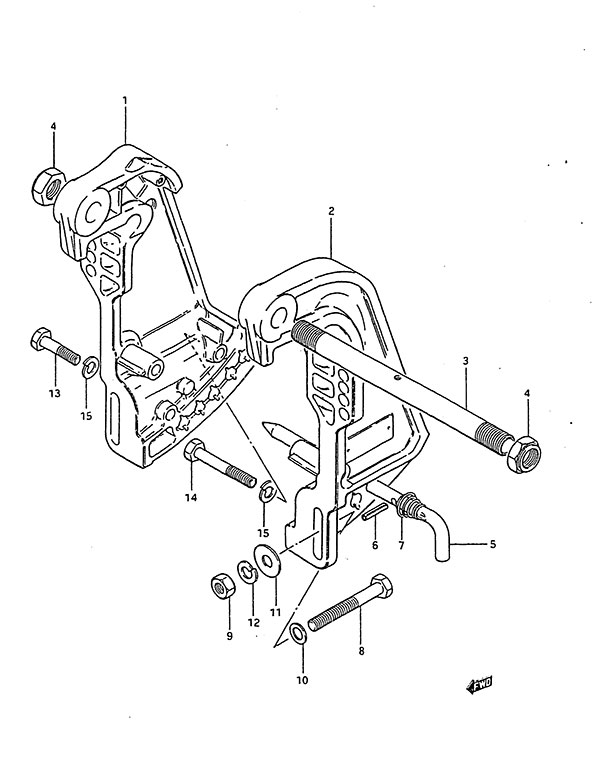

Fig. 18 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-94502-02M Starboard Clamp Bracket (NLA)
SKU: 41111-94502-02M Weight: 0.100000 Brand: Price: $ 55.52 |
Starboard Clamp Bracket (NLA) | 1 | $ 55.52 | S/N 304637 Older | |
| 1-2 | 41111-94503-02M Starboard Clamp Bracket (NLA)
SKU: 41111-94503-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Starboard Clamp Bracket (NLA) | 1 | $ 0.00 | S/N 304638 Newer | |
| 2 | 41121-94502-02M Port Clamp Bracket (NLA)
SKU: 41121-94502-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Port Clamp Bracket (NLA) | 1 | $ 0.00 | ||
| 3 | 41131-94500 Clamp Bracket Shaft (NLA)
SKU: 41131-94500 Weight: 0.100000 Brand: Price: $ 83.25 |
Clamp Bracket Shaft (NLA) | 1 | $ 83.25 | ||
| 4 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 2 | $ 25.75 | ||
| 5 | 45421-94501 Tilt Lock Pin (NLA)
SKU: 45421-94501 Weight: 0.100000 Brand: Price: $ 27.20 |
Tilt Lock Pin (NLA) | 1 | $ 27.20 | ||
| 6 | 09205-03017 Spring Pin (NLA)
SKU: 09205-03017 Weight: 0.100000 Brand: Price: $ 0.63 |
Spring Pin (NLA) | 1 | $ 0.63 | ||
| 7 | 09441-24002 Spring (NLA)
SKU: 09441-24002 Weight: 0.100000 Brand: Price: $ 1.96 |
Spring (NLA) | 1 | $ 1.96 | ||
| 8 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | Requires Ref# 16 | |
| 9 | 09140-12029 Nut
SKU: 09140-12029 Weight: 0.060000 Brand: Price: $ 3.08 |
Nut | 4 | $ 3.08 | ||
| 10 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | ||
| 11 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | ||
| 12 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | ||
| 13 | 09100-10155 Bolt (10x50)
SKU: 09100-10155 Weight: 0.250000 Brand: Price: $ 5.56 |
Bolt (10x50) | 2 | $ 5.56 | ||
| 14 | 09100-10264 Bolt (10x80)
SKU: 09100-10264 Weight: 0.120000 Brand: Price: $ 8.05 |
Bolt (10x80) | 4 | $ 8.05 | ||
| 15 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 6 | $ 1.86 | ||
| 16 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
