Suzuki DT 140 Parts Listings 1983 to 1985

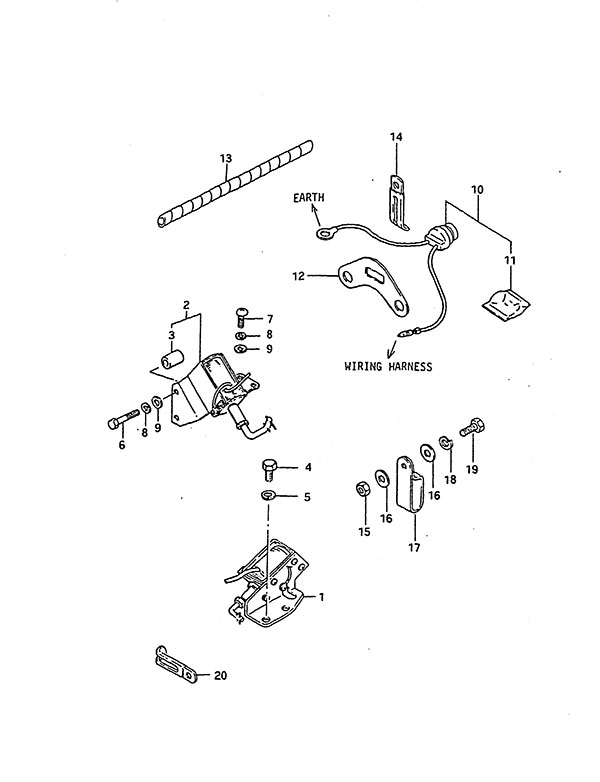

Fig. 17 - Electrical (2)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38600-94810 Choke Solenoid Assembly (NLA)
SKU: 38600-94810 Weight: 1.180000 Brand: Price: $ 178.43 |
Choke Solenoid Assembly (NLA) | 1 | $ 178.43 | 1983 | |
| 2 | 38600-94810 Choke Solenoid Assembly (NLA)
SKU: 38600-94810 Weight: 1.180000 Brand: Price: $ 178.43 |
Choke Solenoid Assembly (NLA) | 1 | $ 178.43 | 1984 to 1985 | |
| 3 | 38601-94500 Spacer (NLA)
SKU: 38601-94500 Weight: 0.100000 Brand: Price: $ 1.89 |
Spacer (NLA) | 2 | $ 1.89 | 1984 to 1985 | |
| 4 | 09100-05102 Bolt (5x10) (NLA)
SKU: 09100-05102 Weight: 0.100000 Brand: Price: $ 0.43 |
Bolt (5x10) (NLA) | 2 | $ 0.43 | 1983 | |
| 5 | 09162-05002 Lock Washer
SKU: 09162-05002 Weight: 0.125000 Brand: Price: $ 1.27 |
Lock Washer | 2 | $ 1.27 | 1983 | |
| 6 | 01500-05307 Bolt (NLA)
SKU: 01500-05307 Weight: 0.200000 Brand: Price: $ 1.76 |
Bolt (NLA) | 2 | $ 1.76 | 1984 to 1985 | |
| 7 | 02112-05127 SCREW
SKU: 02112-05127 Weight: 0.060000 Brand: Price: $ 1.97 |
SCREW | 2 | $ 1.97 | 1984 to 1985 | |
| 8 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 4 | $ 1.85 | 1984 to 1985 | |
| 9 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 4 | $ 1.85 | 1984 to 1985 | |
| 10 | 34850-94510 Heat Switch (NLA)
SKU: 34850-94510 Weight: 0.100000 Brand: Price: $ 88.36 |
Heat Switch (NLA) | 1 | $ 88.36 | ||
| 11 | 34855-95550 Heat Switch Grease (NLA)
SKU: 34855-95550 Weight: 0.060000 Brand: Price: $ 6.77 |
Heat Switch Grease (NLA) | 1 | $ 6.77 | ||
| 12 | 34853-94500 Supporter (NLA)
SKU: 34853-94500 Weight: 0.060000 Brand: Price: $ 1.88 |
Supporter (NLA) | 1 | $ 1.88 | ||
| 13 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | 1984 to 1985 | |
| 14 | 09404-10206 Clamp
SKU: 09404-10206 Weight: 0.200000 Brand: Price: $ 2.04 |
Clamp | 1 | $ 2.04 | ||
| 15 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 16 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 2 | $ 1.97 | ||
| 17 | 33816-94500 Clamp (NLA)
SKU: 33816-94500 Weight: 0.100000 Brand: Price: $ 1.55 |
Clamp (NLA) | 1 | $ 1.55 | ||
| 18 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | ||
| 19 | 09100-06122 Bolt (6x20)
SKU: 09100-06122 Weight: 0.060000 Brand: Price: $ 1.31 |
Bolt (6x20) | 1 | $ 1.31 | ||
| 20-1 | 09404-08420 Clamp
SKU: 09404-08420 Weight: 0.125000 Brand: Price: $ 3.21 |
Clamp | 2 | $ 3.21 | 1983 | |
| 20-2 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | 1984 to 1985 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
