Suzuki DT 140 Parts Listings 1983 to 1985

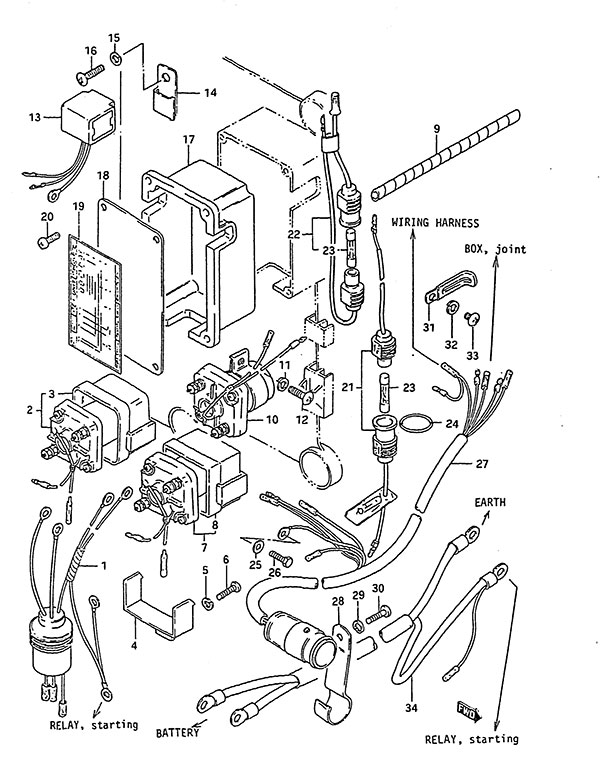

Fig. 16 - Electrical (1)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 33830-94502 Trim Relay Cable (NLA)
SKU: 33830-94502 Weight: 0.100000 Brand: Price: $ 0.00 |
Trim Relay Cable (NLA) | 1 | $ 0.00 | 1983 | |
| 1-2 | 33830-94504 Trim Relay Cable (NLA)
SKU: 33830-94504 Weight: 5.000000 Brand: Price: $ 33.63 |
Trim Relay Cable (NLA) | 1 | $ 33.63 | 1984 to 1985 | |
| 2-1 | 38410-94540 PTT Relay Assembly (NLA)
SKU: 38410-94540 Weight: 0.380000 Brand: Price: $ 131.56 |
PTT Relay Assembly (NLA) | 1 | $ 131.56 | UP | |
| 2-2 | 38410-94530 Trim Relay w/Damper (NLA)
SKU: 38410-94530 Weight: 0.100000 Brand: Price: $ 37.17 |
Trim Relay w/Damper (NLA) | 1 | $ 37.17 | Opt: UP | |
| 3 | 38422-94520 Relay Damper (NLA)
SKU: 38422-94520 Weight: 0.250000 Brand: Price: $ 11.22 |
Relay Damper (NLA) | 1 | $ 11.22 | Optional | |
| 4 | 38412-94500 PTT Bracket (NLA)
SKU: 38412-94500 Weight: 0.100000 Brand: Price: $ 3.06 |
PTT Bracket (NLA) | 2 | $ 3.06 | ||
| 5 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 6 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 2 | $ 1.44 | ||
| 7-1 | 38410-94540 PTT Relay Assembly (NLA)
SKU: 38410-94540 Weight: 0.380000 Brand: Price: $ 131.56 |
PTT Relay Assembly (NLA) | 1 | $ 131.56 | Down | |
| 7-2 | 38420-94530 Trim Relay w/Damper (NLA)
SKU: 38420-94530 Weight: 0.100000 Brand: Price: $ 42.53 |
Trim Relay w/Damper (NLA) | 1 | $ 42.53 | Opt: Down | |
| 8 | 38422-94520 Relay Damper (NLA)
SKU: 38422-94520 Weight: 0.250000 Brand: Price: $ 11.22 |
Relay Damper (NLA) | 1 | $ 11.22 | ||
| 9-1 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | 1983 | |
| 9-2 | 34863-94500 Tube (NLA)
SKU: 34863-94500 Weight: 0.100000 Brand: Price: $ 0.95 |
Tube (NLA) | 2 | $ 0.95 | 1985 | |
| 10 | 31800-95522 Starter Relay
SKU: 31800-95522 Weight: 0.500000 Brand: Price: $ 191.22 |
Starter Relay | 1 | $ 191.22 | ||
| 11 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 12 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 1 | $ 1.44 | ||
| 13 | 34861-94501 Oil Level Semi Conductor (NLA)
SKU: 34861-94501 Weight: 0.100000 Brand: Price: $ 26.53 |
Oil Level Semi Conductor (NLA) | 1 | $ 26.53 | ||
| 16 | 34862-94500 Semi Conductor Bracket (NLA)
SKU: 34862-94500 Weight: 0.100000 Brand: Price: $ 2.02 |
Semi Conductor Bracket (NLA) | 1 | $ 2.02 | ||
| 15 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 16 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 1 | $ 1.44 | ||
| 17 | 36653-94501 Insulator Box (NLA)
SKU: 36653-94501 Weight: 0.100000 Brand: Price: $ 5.38 |
Insulator Box (NLA) | 1 | $ 5.38 | ||
| 18 | 36650-94500 Junction Box Cover (NLA)
SKU: 36650-94500 Weight: 0.100000 Brand: Price: $ 7.49 |
Junction Box Cover (NLA) | 1 | $ 7.49 | ||
| 19 | 36652-94504 Diagram Label (NLA)
SKU: 36652-94504 Weight: 0.100000 Brand: Price: $ 1.50 |
Diagram Label (NLA) | 1 | $ 1.50 | ||
| 20 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 4 | $ 1.82 | ||
| 21 | 36740-95253 Fuse Case Assembly
SKU: 36740-95253 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | ||
| 22 | 36740-94500 Fuse Case Assembly (NLA)
SKU: 36740-94500 Weight: 0.100000 Brand: Price: $ 6.17 |
Fuse Case Assembly (NLA) | 1 | $ 6.17 | ||
| 23 | 09481-20001 20 Amp Fuse
SKU: 09481-20001 Weight: 0.060000 Brand: Price: $ 2.54 |
20 Amp Fuse | 1 | $ 2.54 | ||
| 24 | 09280-21013 O-Ring
SKU: 09280-21013 Weight: 0.125000 Brand: Price: $ 2.29 |
O-Ring | 2 | $ 2.29 | 1984 to 1985 | |
| 25 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 1 | $ 1.85 | ||
| 26 | 01500-06127 BOLT
SKU: 01500-06127 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 27-1 | 36610-94506 Wiring Harness Assembly (NLA)
SKU: 36610-94506 Weight: 5.000000 Brand: Price: $ 26.22 |
Wiring Harness Assembly (NLA) | 1 | $ 26.22 | 1983 to 1984 | |
| 27-2 | 36610-94507 Wiring Harness Assembly (NLA)
SKU: 36610-94507 Weight: 5.000000 Brand: Price: $ 49.81 |
Wiring Harness Assembly (NLA) | 1 | $ 49.81 | 1985 | |
| 28 | 36791-94502 Harness Holder (NLA)
SKU: 36791-94502 Weight: 0.100000 Brand: Price: $ 1.75 |
Harness Holder (NLA) | 1 | $ 1.75 | ||
| 29 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 30 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 1 | $ 1.44 | ||
| 31 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 32 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 33 | 02112-06087 6X8 CROSS SCREW
SKU: 02112-06087 Weight: 0.125000 Brand: Price: $ 1.44 |
6X8 CROSS SCREW | 1 | $ 1.44 | ||
| 34-1 | 33810-94501 Starter Cable Assembly (NLA)
SKU: 33810-94501 Weight: 0.100000 Brand: Price: $ 0.00 |
Starter Cable Assembly (NLA) | 1 | $ 0.00 | 1983 | |
| 34-2 | 33810-94502 Starter Cable Assembly (NLA)
SKU: 33810-94502 Weight: 2.000000 Brand: Price: $ 69.58 |
Starter Cable Assembly (NLA) | 1 | $ 69.58 | 1984 to 1985 |
