Suzuki DT 140 Parts Listings 1983 to 1985

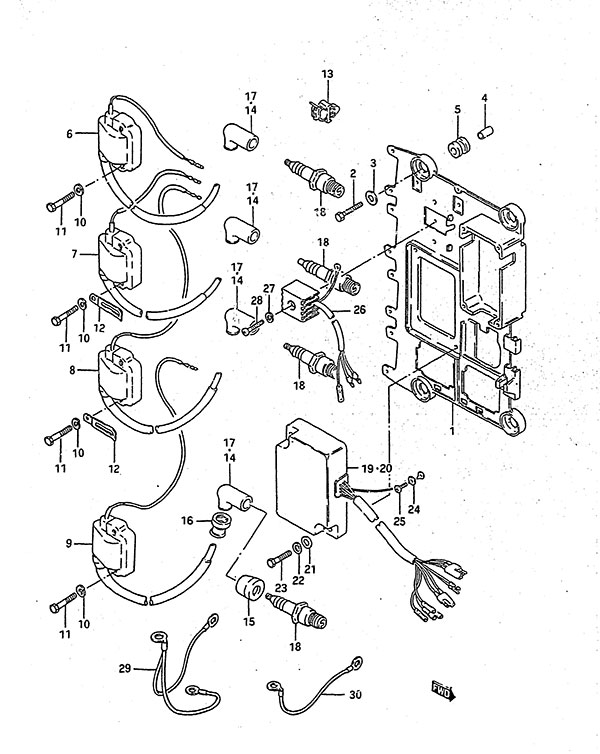

Fig. 15 - Ignition
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32890-94500 Electric Parts Holder (NLA)
SKU: 32890-94500 Weight: 0.100000 Brand: Price: $ 42.39 |
Electric Parts Holder (NLA) | 1 | $ 42.39 | ||
| 2 | 01500-08307 BOLT
SKU: 01500-08307 Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 4 | $ 3.09 | ||
| 3 | 09160-08054 Washer
SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 4 | $ 1.44 | ||
| 4 | 09180-08143 Spacer
SKU: 09180-08143 Weight: 0.125000 Brand: Price: $ 3.83 |
Spacer | 4 | $ 3.83 | ||
| 5 | 09320-12028 Cushion (NLA)
SKU: 09320-12028 Weight: 0.100000 Brand: Price: $ 0.88 |
Cushion (NLA) | 4 | $ 0.88 | ||
| 6 | 33410-94500 Ignition Coil (NLA)
SKU: 33410-94500 Weight: 0.100000 Brand: Price: $ 66.16 |
Ignition Coil (NLA) | 1 | $ 66.16 | ||
| 7 | 33420-94500 Ignition Coil (NLA)
SKU: 33420-94500 Weight: 0.100000 Brand: Price: $ 73.31 |
Ignition Coil (NLA) | 1 | $ 73.31 | ||
| 8 | 33430-94500 Ignition Coil (NLA)
SKU: 33430-94500 Weight: 0.100000 Brand: Price: $ 73.31 |
Ignition Coil (NLA) | 1 | $ 73.31 | ||
| 9 | 33440-94500 Ignition Coil (NLA)
SKU: 33440-94500 Weight: 0.600000 Brand: Price: $ 73.31 |
Ignition Coil (NLA) | 1 | $ 73.31 | ||
| 10 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 8 | $ 1.85 | ||
| 11 | 01500-06307 BOLT
SKU: 01500-06307 Weight: 0.060000 Brand: Price: $ 2.52 |
BOLT | 8 | $ 2.52 | ||
| 12-1 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 2 | $ 1.86 | 1983 | |
| 12-2 | 09404-06201 Wire Clamp (NLA)
SKU: 09404-06201 Weight: 0.060000 Brand: Price: $ 0.39 |
Wire Clamp (NLA) | 2 | $ 0.39 | 1984 to 1985 | |
| 13 | 09403-07308 Clamp
SKU: 09403-07308 Weight: 0.060000 Brand: Price: $ 1.79 |
Clamp | 2 | $ 1.79 | ||
| 14 | 33510-97313 Spark Plug Cap
SKU: 33510-97313 Weight: 0.060000 Brand: Price: $ 15.55 |
Spark Plug Cap | 4 | $ 15.55 | 1983 | |
| 15 | 33541-93950 Spark Plug Seal
SKU: 33541-93950 Weight: 0.060000 Brand: Price: $ 9.53 |
Spark Plug Seal | 4 | $ 9.53 | 1983 | |
| 16 | 33542-38B00 Spark Plug Cap Seal
SKU: 33542-38B00 Weight: 0.060000 Brand: Price: $ 4.58 |
Spark Plug Cap Seal | 4 | $ 4.58 | 1983 | |
| 17 | 33510-95520 Spark Plug Cap
SKU: 33510-95520 Weight: 0.060000 Brand: Price: $ 18.63 |
Spark Plug Cap | 4 | $ 18.63 | 1984 to 1985 | |
| 18 | 09482-00198 NGK B8HS Spark Plug
SKU: 09482-00198 Weight: 0.187500 Brand: Price: $ 3.27 |
NGK B8HS Spark Plug | 4 | $ 3.27 | ||
| 19 | 32900-94501 CDI Unit Assembly (NLA)
SKU: 32900-94501 Weight: 1.100000 Brand: Price: $ 799.03 |
CDI Unit Assembly (NLA) | 1 | $ 799.03 | 1983 to 1984 | |
| 20 | 32900-94510 CDI Unit Assembly (NLA)
SKU: 32900-94510 Weight: 1.040000 Brand: Price: $ 820.86 |
CDI Unit Assembly (NLA) | 1 | $ 820.86 | 1985 | |
| 21 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | ||
| 22 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 23 | 01500-06257 BOLT
SKU: 01500-06257 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 24 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 25 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 1 | $ 1.44 | ||
| 26 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | ||
| 27 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 28 | 02112-05257 SCREW 5X25
SKU: 02112-05257 Weight: 0.060000 Brand: Price: $ 1.49 |
SCREW 5X25 | 1 | $ 1.49 | ||
| 29 | 36895-95300 Lead (NLA)
SKU: 36895-95300 Weight: 0.100000 Brand: Price: $ 4.49 |
Lead (NLA) | 1 | $ 4.49 | S/N 406555 Newer | |
| 30 | 36895-94400 Wire Lead (NLA)
SKU: 36895-94400 Weight: 0.100000 Brand: Price: $ 1.61 |
Wire Lead (NLA) | 1 | $ 1.61 | 1985 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
