Suzuki DT 140 Parts Listings 1983 to 1985

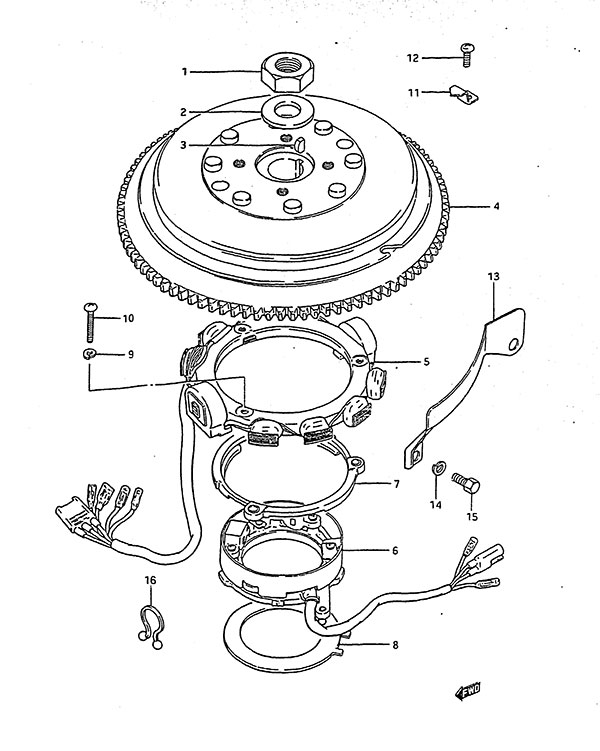

Fig. 14 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09140-18007 Nut (NLA)
SKU: 09140-18007 Weight: 0.120000 Brand: Price: $ 3.77 |
Nut (NLA) | 1 | $ 3.77 | ||
| 2 | 09160-18011 Washer
SKU: 09160-18011 Weight: 0.062500 Brand: Price: $ 5.96 |
Washer | 1 | $ 5.96 | ||
| 3 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.52 |
Woodruff Key 5mm | 1 | $ 2.52 | ||
| 4-1 | 32102-94503 Flywheel (NLA)
SKU: 32102-94503 Weight: 0.100000 Brand: Price: $ 606.56 |
Flywheel (NLA) | 1 | $ 606.56 | 1983 to 1984 | |
| 4-2 | 32102-94510 Flywheel (NLA)
SKU: 32102-94510 Weight: 0.100000 Brand: Price: $ 606.56 |
Flywheel (NLA) | 1 | $ 606.56 | 1985 | |
| 5 | 32101-94500 Stator Assembly (NLA)
SKU: 32101-94500 Weight: 2.120000 Brand: Price: $ 537.05 |
Stator Assembly (NLA) | 1 | $ 537.05 | ||
| 6-1 | 32160-94501 Timer Base & Sensor Assembly (NLA)
SKU: 32160-94501 Weight: 0.100000 Brand: Price: $ 296.83 |
Timer Base & Sensor Assembly (NLA) | 1 | $ 296.83 | 1983 to 1984 | |
| 6-2 | 32160-94510 Timer Base & Sensor Assembly (NLA)
SKU: 32160-94510 Weight: 0.100000 Brand: Price: $ 290.40 |
Timer Base & Sensor Assembly (NLA) | 1 | $ 290.40 | 1985 | |
| 7 | 32390-94501 Retainer (NLA)
SKU: 32390-94501 Weight: 0.100000 Brand: Price: $ 8.08 |
Retainer (NLA) | 1 | $ 8.08 | ||
| 8 | 32395-94502 Retainer (NLA)
SKU: 32395-94502 Weight: 0.100000 Brand: Price: $ 4.60 |
Retainer (NLA) | 1 | $ 4.60 | ||
| 9 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 3 | $ 1.85 | ||
| 10 | 02112-06307 SCREW, 6X30 CRO
SKU: 02112-06307 Weight: 0.125000 Brand: Price: $ 1.97 |
SCREW, 6X30 CRO | 3 | $ 1.97 | ||
| 11 | 32495-94500 Timing Pointer (NLA)
SKU: 32495-94500 Weight: 0.100000 Brand: Price: $ 1.08 |
Timing Pointer (NLA) | 1 | $ 1.08 | ||
| 12 | 02112-06107 SCREW
SKU: 02112-06107 Weight: 0.125000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 13 | 11511-94503-02M Ring Gear Cover (NLA)
SKU: 11511-94503-02M Weight: 0.100000 Brand: Price: $ 1.40 |
Ring Gear Cover (NLA) | 1 | $ 1.40 | ||
| 14 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 15 | 01500-08207 BOLT
SKU: 01500-08207 Weight: 0.200000 Brand: Price: $ 2.54 |
BOLT | 2 | $ 2.54 | ||
| 16 | 09408-00021 Clamp (NLA)
SKU: 09408-00021 Weight: 0.100000 Brand: Price: $ 0.85 |
Clamp (NLA) | 1 | $ 0.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
