Suzuki DT 140 Parts Listings 1985

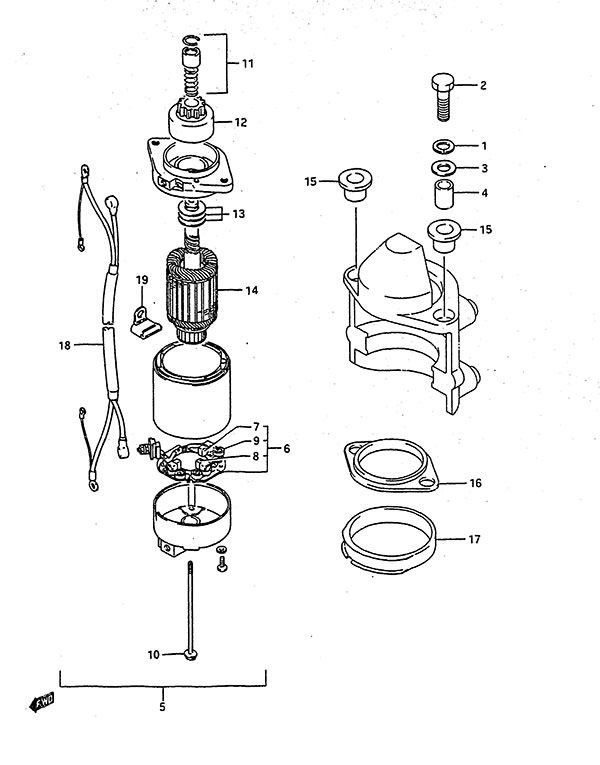

Fig. 13 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 2 | 01500-0835B BOLT
SKU: 01500-0835B Weight: 0.200000 Brand: Price: $ 3.09 |
BOLT | 2 | $ 3.09 | ||
| 3 | 09160-08062 Washer
SKU: 09160-08062 Weight: 0.060000 Brand: Price: $ 2.27 |
Washer | 2 | $ 2.27 | ||
| 4 | 09180-08097-XC0 Spacer
SKU: 09180-08097-XC0 Weight: 0.060000 Brand: Price: $ 2.71 |
Spacer | 2 | $ 2.71 | ||
| 5 | 31100-94610 Starter Motor Assembly (NLA)
SKU: 31100-94610 Weight: 8.000000 Brand: Price: $ 764.39 |
Starter Motor Assembly (NLA) | 1 | $ 764.39 | ||
| 6 | 31173-95310 Brush Holder
SKU: 31173-95310 Weight: 0.160000 Brand: Price: $ 62.73 |
Brush Holder | 1 | $ 62.73 | ||
| 7 | 31131-95310 Brush (+)
SKU: 31131-95310 Weight: 0.060000 Brand: Price: $ 25.72 |
Brush (+) | 2 | $ 25.72 | ||
| 8 | 31131-95241 Brush
SKU: 31131-95241 Weight: 0.060000 Brand: Price: $ 14.27 |
Brush | 1 | $ 14.27 | ||
| 9 | 31135-95310 Spring (NLA)
SKU: 31135-95310 Weight: 0.060000 Brand: Price: $ 4.46 |
Spring (NLA) | 3 | $ 4.46 | ||
| 10 | 31281-94510 Through Bolt
SKU: 31281-94510 Weight: 0.200000 Brand: Price: $ 15.49 |
Through Bolt | 2 | $ 15.49 | ||
| 12 | 31320-94510 Pinion Assembly (NLA)
SKU: 31320-94510 Weight: 0.100000 Brand: Price: $ 123.13 |
Pinion Assembly (NLA) | 1 | $ 123.13 | ||
| 11 | 31312-94601 Pinion Stopper Set
SKU: 31312-94601 Weight: 0.250000 Brand: Price: $ 13.39 |
Pinion Stopper Set | 1 | $ 13.39 | ||
| 13 | 31360-95520 Washer Kit (NLA)
SKU: 31360-95520 Weight: 0.100000 Brand: Price: $ 4.53 |
Washer Kit (NLA) | 1 | $ 4.53 | ||
| 14 | 31310-94600 Armature (NLA)
SKU: 31310-94600 Weight: 5.000000 Brand: Price: $ 347.90 |
Armature (NLA) | 1 | $ 347.90 | ||
| 15 | 31916-94500 Starter Motor Upper Damper
SKU: 31916-94500 Weight: 0.100000 Brand: Price: $ 4.84 |
Starter Motor Upper Damper | 2 | $ 4.84 | ||
| 16 | 31917-94500 Starter Motor Middle Damper (NLA)
SKU: 31917-94500 Weight: 0.100000 Brand: Price: $ 9.16 |
Starter Motor Middle Damper (NLA) | 1 | $ 9.16 | ||
| 17 | 31918-94600 Lower Damper (NLA)
SKU: 31918-94600 Weight: 0.100000 Brand: Price: $ 7.01 |
Lower Damper (NLA) | 1 | $ 7.01 | ||
| 18 | 33840-94520 Starter Sub Cable (NLA)
SKU: 33840-94520 Weight: 0.100000 Brand: Price: $ 28.78 |
Starter Sub Cable (NLA) | 1 | $ 28.78 | ||
| 19 | 33841-94501 Clamp (NLA)
SKU: 33841-94501 Weight: 0.100000 Brand: Price: $ 2.57 |
Clamp (NLA) | 1 | $ 2.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
