Suzuki DT 140 Parts Listings 1983 to 1984

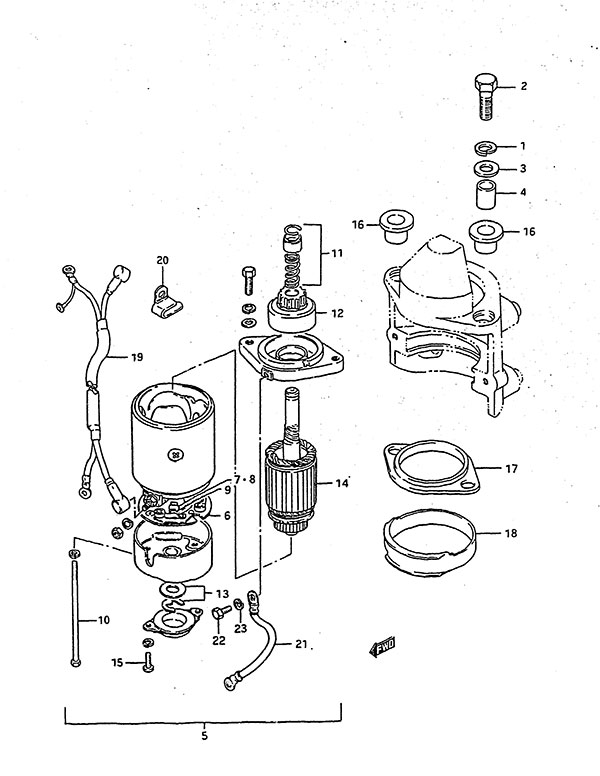

Fig. 12 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 2 | 01500-0835B BOLT
SKU: 01500-0835B Weight: 0.200000 Brand: Price: $ 3.09 |
BOLT | 2 | $ 3.09 | ||
| 3 | 09160-08062 Washer
SKU: 09160-08062 Weight: 0.060000 Brand: Price: $ 2.27 |
Washer | 2 | $ 2.27 | ||
| 4 | 09180-08097-XC0 Spacer
SKU: 09180-08097-XC0 Weight: 0.060000 Brand: Price: $ 2.71 |
Spacer | 2 | $ 2.71 | ||
| 5 | 31100-94610 Starter Motor Assembly (NLA)
SKU: 31100-94610 Weight: 8.000000 Brand: Price: $ 764.39 |
Starter Motor Assembly (NLA) | 1 | $ 764.39 | ||
| 6-1 | 31173-94510 Brush Holder Assembly (NLA)
SKU: 31173-94510 Weight: 0.100000 Brand: Price: $ 0.00 |
Brush Holder Assembly (NLA) | 1 | $ 0.00 | 1983 | |
| 6-2 | 31173-94511 Brush Holder Assembly (NLA)
SKU: 31173-94511 Weight: 0.100000 Brand: Price: $ 40.84 |
Brush Holder Assembly (NLA) | 1 | $ 40.84 | 1984 | |
| 7 | 31131-94510 Brush (+) (NLA)
SKU: 31131-94510 Weight: 0.100000 Brand: Price: $ 17.31 |
Brush (+) (NLA) | 2 | $ 17.31 | ||
| 8 | 31132-94510 Brush (-) (NLA)
SKU: 31132-94510 Weight: 0.100000 Brand: Price: $ 20.14 |
Brush (-) (NLA) | 1 | $ 20.14 | ||
| 9 | 31135-95310 Spring (NLA)
SKU: 31135-95310 Weight: 0.060000 Brand: Price: $ 4.46 |
Spring (NLA) | 3 | $ 4.46 | ||
| 10 | 31281-94510 Through Bolt
SKU: 31281-94510 Weight: 0.200000 Brand: Price: $ 15.49 |
Through Bolt | 2 | $ 15.49 | ||
| 11 | 31312-94601 Pinion Stopper Set
SKU: 31312-94601 Weight: 0.250000 Brand: Price: $ 13.39 |
Pinion Stopper Set | 1 | $ 13.39 | ||
| 12 | 31320-94510 Pinion Assembly (NLA)
SKU: 31320-94510 Weight: 0.100000 Brand: Price: $ 123.13 |
Pinion Assembly (NLA) | 1 | $ 123.13 | ||
| 13-1 | 31361-95240 Washer Kit (NLA)
SKU: 31361-95240 Weight: 0.100000 Brand: Price: $ 4.11 |
Washer Kit (NLA) | 1 | $ 4.11 | 1983 | |
| 13-2 | 31361-94510 Washer Kit (NLA)
SKU: 31361-94510 Weight: 0.100000 Brand: Price: $ 6.68 |
Washer Kit (NLA) | 1 | $ 6.68 | 1984 | |
| 14 | 31311-94511 Armature (NLA)
SKU: 31311-94511 Weight: 5.000000 Brand: Price: $ 329.12 |
Armature (NLA) | 1 | $ 329.12 | ||
| 15 | 02112-0412A SCREW
SKU: 02112-0412A Weight: 0.125000 Brand: Price: $ 1.24 |
SCREW | 2 | $ 1.24 | ||
| 16 | 31916-94500 Starter Motor Upper Damper
SKU: 31916-94500 Weight: 0.100000 Brand: Price: $ 4.84 |
Starter Motor Upper Damper | 2 | $ 4.84 | ||
| 17 | 31917-94500 Starter Motor Middle Damper (NLA)
SKU: 31917-94500 Weight: 0.100000 Brand: Price: $ 9.16 |
Starter Motor Middle Damper (NLA) | 1 | $ 9.16 | ||
| 18 | 31918-94500 Starter Motor Lower Damper (NLA)
SKU: 31918-94500 Weight: 0.100000 Brand: Price: $ 7.96 |
Starter Motor Lower Damper (NLA) | 1 | $ 7.96 | ||
| 19 | 33840-94520 Starter Sub Cable (NLA)
SKU: 33840-94520 Weight: 0.100000 Brand: Price: $ 28.78 |
Starter Sub Cable (NLA) | 1 | $ 28.78 | ||
| 20 | 33841-94501 Clamp (NLA)
SKU: 33841-94501 Weight: 0.100000 Brand: Price: $ 2.57 |
Clamp (NLA) | 1 | $ 2.57 | ||
| 21 | 33850-94501 Ground Cable (NLA)
SKU: 33850-94501 Weight: 0.100000 Brand: Price: $ 8.03 |
Ground Cable (NLA) | 1 | $ 8.03 | ||
| 22 | 01500-0816B BOLT
SKU: 01500-0816B Weight: 0.200000 Brand: Price: $ 2.52 |
BOLT | 1 | $ 2.52 | ||
| 23 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
