Suzuki DT 140 Parts Listings 1983 to 1985

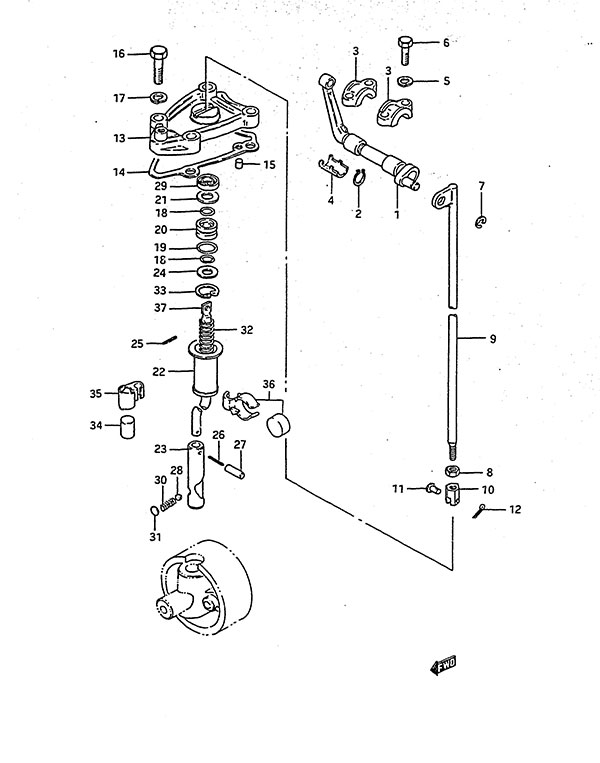

Fig. 11 - Clutch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21210-94500 Clutch Shift Shaft (NLA)
SKU: 21210-94500 Weight: 0.250000 Brand: Price: $ 65.94 |
Clutch Shift Shaft (NLA) | 1 | $ 65.94 | ||
| 2 | 09380-12004 Circlip (NLA)
SKU: 09380-12004 Weight: 0.100000 Brand: Price: $ 1.29 |
Circlip (NLA) | 1 | $ 1.29 | ||
| 3-1 | 21311-94502 Clutch Shaft Holder (NLA)
SKU: 21311-94502 Weight: 0.100000 Brand: Price: $ 2.71 |
Clutch Shaft Holder (NLA) | 2 | $ 2.71 | S/N 405444 Older | |
| 4 | 21312-94500 Clutch Shaft Bushing (NLA)
SKU: 21312-94500 Weight: 0.100000 Brand: Price: $ 8.12 |
Clutch Shaft Bushing (NLA) | 2 | $ 8.12 | S/N 405445 Newer | |
| 3-2 | 21311-94503 Clutch Shaft Holder
SKU: 21311-94503 Weight: 0.200000 Brand: Price: $ 4.82 |
Clutch Shaft Holder | 2 | $ 4.82 | S/N 405445 Newer | |
| 5 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 4 | $ 1.49 | ||
| 6 | 09100-06089 Bolt (6x25) (NLA)
SKU: 09100-06089 Weight: 0.100000 Brand: Price: $ 0.82 |
Bolt (6x25) (NLA) | 4 | $ 0.82 | ||
| 7 | 09383-08004 E Ring
SKU: 09383-08004 Weight: 0.060000 Brand: Price: $ 0.91 |
E Ring | 1 | $ 0.91 | ||
| 8-1 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | Type: L | |
| 8-2 | 09140-08019 Nut (8mm)
SKU: 09140-08019 Weight: 0.060000 Brand: Price: $ 2.02 |
Nut (8mm) | 1 | $ 2.02 | Type: X | |
| 9-1 | 23110-94502 Clutch Rod (L) (NLA)
SKU: 23110-94502 Weight: 0.500000 Brand: Price: $ 20.58 |
Clutch Rod (L) (NLA) | 1 | $ 20.58 | Type: L | |
| 9-2 | 23110-94510 Clutch Rod (X) (NLA)
SKU: 23110-94510 Weight: 0.100000 Brand: Price: $ 22.56 |
Clutch Rod (X) (NLA) | 1 | $ 22.56 | Type: X | |
| 10-2 | 23315-94510 Clutch Rod Connector (X)
SKU: 23315-94510 Weight: 0.100000 Brand: Price: $ 15.99 |
Clutch Rod Connector (X) | 1 | $ 15.99 | Type: X | |
| 11-1 | 23313-87D00 Clutch Rod Connector Pin (L)
SKU: 23313-87D00 Weight: 0.060000 Brand: Price: $ 4.15 |
Clutch Rod Connector Pin (L) | 1 | $ 4.15 | Type: L | |
| 11-2 | 23313-99E01 Clutch Rod Connector Pin
SKU: 23313-99E01 Weight: 0.060000 Brand: Price: $ 4.08 |
Clutch Rod Connector Pin | 1 | $ 4.08 | Type: X | |
| 12 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 13 | 25141-94503 Shift Rod Housing Guide (NLA)
SKU: 25141-94503 Weight: 0.100000 Brand: Price: $ 18.32 |
Shift Rod Housing Guide (NLA) | 1 | $ 18.32 | ||
| 14 | 25142-94560 Shift Guide Gasket
SKU: 25142-94560 Weight: 0.060000 Brand: Price: $ 8.03 |
Shift Guide Gasket | 1 | $ 8.03 | ||
| 15 | 04221-05109 PIN
SKU: 04221-05109 Weight: 0.125000 Brand: Price: $ 1.49 |
PIN | 2 | $ 1.49 | ||
| 16 | 09100-08224-XC0 Bolt (8x35)
SKU: 09100-08224-XC0 Weight: 0.060000 Brand: Price: $ 5.06 |
Bolt (8x35) | 4 | $ 5.06 | ||
| 17 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 4 | $ 1.49 | ||
| 18 | 09280-08008 O-Ring
SKU: 09280-08008 Weight: 0.060000 Brand: Price: $ 1.07 |
O-Ring | 2 | $ 1.07 | ||
| 19 | 09280-15003 O-Ring
SKU: 09280-15003 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 1 | $ 1.78 | ||
| 20 | 25211-94501 Shift Rod Guide
SKU: 25211-94501 Weight: 0.060000 Brand: Price: $ 11.45 |
Shift Rod Guide | 1 | $ 11.45 | ||
| 21 | 09160-09009 Washer (NLA)
SKU: 09160-09009 Weight: 0.125000 Brand: Price: $ 1.62 |
Washer (NLA) | 1 | $ 1.62 | ||
| 22 | 25205-94501 Shift Rod Spring Collar
SKU: 25205-94501 Weight: 0.100000 Brand: Price: $ 13.26 |
Shift Rod Spring Collar | 1 | $ 13.26 | ||
| 23-1 | 25311-94501 Clutch Cam (NLA)
SKU: 25311-94501 Weight: 0.100000 Brand: Price: $ 30.12 |
Clutch Cam (NLA) | 1 | $ 30.12 | 1983 | |
| 23-2 | 25311-94510 Shift Cam
SKU: 25311-94510 Weight: 0.250000 Brand: Price: $ 49.00 |
Shift Cam | 1 | $ 49.00 | 1984 to 1985 | |
| 24 | 09160-09010 Washer (9x30x1.6)
SKU: 09160-09010 Weight: 0.100000 Brand: Price: $ 1.86 |
Washer (9x30x1.6) | 1 | $ 1.86 | ||
| 25 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.92 |
Spring Pin (2.5x12) | 1 | $ 0.92 | ||
| 26 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 1 | $ 1.07 | ||
| 27 | 09205-03021 Spring Pin (3.5x12)
SKU: 09205-03021 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (3.5x12) | 1 | $ 1.07 | ||
| 28 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 29 | 09284-08003 Dust Seal
SKU: 09284-08003 Weight: 0.060000 Brand: Price: $ 3.36 |
Dust Seal | 1 | $ 3.36 | ||
| 30 | 09440-07033 Cam Notch Spring
SKU: 09440-07033 Weight: 0.060000 Brand: Price: $ 1.51 |
Cam Notch Spring | 1 | $ 1.51 | ||
| 31 | 21121-93300 Clutch Notch Plate
SKU: 21121-93300 Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Notch Plate | 1 | $ 1.46 | ||
| 32 | 09440-12025 Spring
SKU: 09440-12025 Weight: 0.100000 Brand: Price: $ 1.85 |
Spring | 1 | $ 1.85 | ||
| 33 | 08331-41309 Circlip
SKU: 08331-41309 Weight: 0.060000 Brand: Price: $ 2.45 |
Circlip | 1 | $ 2.45 | ||
| 34 | 25230-94300 Gear Case Magnet Set
SKU: 25230-94300 Weight: 0.060000 Brand: Price: $ 17.66 |
Gear Case Magnet Set | 1 | $ 17.66 | S/N 304983 Older | |
| 35 | 25230-94300 Gear Case Magnet Set
SKU: 25230-94300 Weight: 0.060000 Brand: Price: $ 17.66 |
Gear Case Magnet Set | 1 | $ 17.66 | S/N 304983 Older | |
| 36 | 25230-94300 Gear Case Magnet Set
SKU: 25230-94300 Weight: 0.060000 Brand: Price: $ 17.66 |
Gear Case Magnet Set | 1 | $ 17.66 | S/N 304984 Newer | |
| 37-2 | 25111-94511 Shift Rod (X)
SKU: 25111-94511 Weight: 0.500000 Brand: Price: $ 25.96 |
Shift Rod (X) | 1 | $ 25.96 | Type: X |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
