Suzuki DT 140 Parts Listings 1983 to 1985

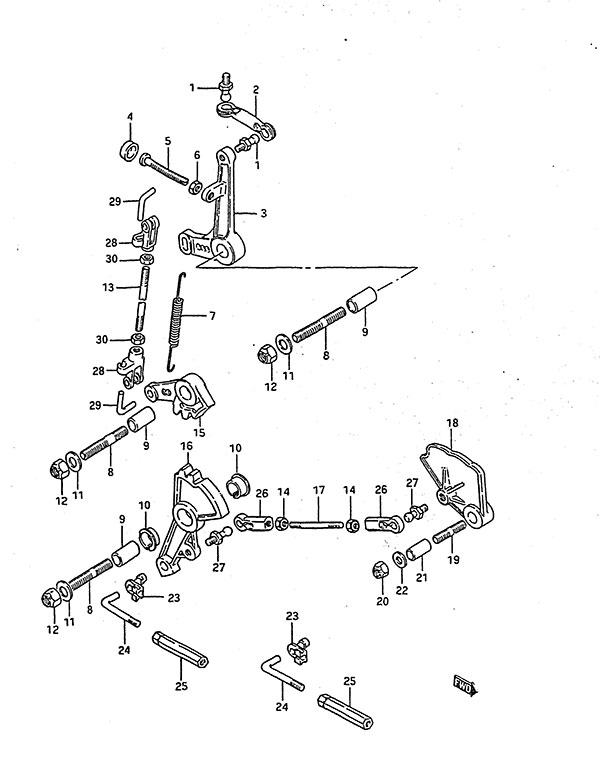

Fig. 10 - Throttle Link
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09119-05010 Pivot Ball
SKU: 09119-05010 Weight: 0.060000 Brand: Price: $ 6.97 |
Pivot Ball | 2 | $ 6.97 | ||
| 2 | 19132-94501 Connector
SKU: 19132-94501 Weight: 0.060000 Brand: Price: $ 2.90 |
Connector | 1 | $ 2.90 | ||
| 3 | 19211-94503 Spark Advance Lever (NLA)
SKU: 19211-94503 Weight: 0.100000 Brand: Price: $ 8.98 |
Spark Advance Lever (NLA) | 1 | $ 8.98 | ||
| 4 | 09329-06002 Cushion (NLA)
SKU: 09329-06002 Weight: 0.100000 Brand: Price: $ 1.38 |
Cushion (NLA) | 1 | $ 1.38 | ||
| 5 | 09139-06015 Screw (NLA)
SKU: 09139-06015 Weight: 0.100000 Brand: Price: $ 2.47 |
Screw (NLA) | 1 | $ 2.47 | ||
| 6 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 7 | 09443-09015 Spring (NLA)
SKU: 09443-09015 Weight: 0.100000 Brand: Price: $ 1.65 |
Spring (NLA) | 1 | $ 1.65 | ||
| 8 | 01421-0835A BOLT,STUD
SKU: 01421-0835A Weight: 0.200000 Brand: Price: $ 2.30 |
BOLT,STUD | 3 | $ 2.30 | ||
| 9 | 09180-08098 Spacer (NLA)
SKU: 09180-08098 Weight: 0.100000 Brand: Price: $ 2.42 |
Spacer (NLA) | 3 | $ 2.42 | ||
| 10 | 09301-11002 Bushing (NLA)
SKU: 09301-11002 Weight: 0.100000 Brand: Price: $ 0.44 |
Bushing (NLA) | 2 | $ 0.44 | ||
| 11 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 3 | $ 2.68 | ||
| 12 | 09159-08018 Nut (8mm) (NLA)
SKU: 09159-08018 Weight: 0.200000 Brand: Price: $ 2.08 |
Nut (8mm) (NLA) | 3 | $ 2.08 | ||
| 13 | 19136-94502 Rod (NLA)
SKU: 19136-94502 Weight: 0.100000 Brand: Price: $ 6.25 |
Rod (NLA) | 1 | $ 6.25 | ||
| 14 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 15 | 19121-94504 Lever (NLA)
SKU: 19121-94504 Weight: 0.100000 Brand: Price: $ 6.34 |
Lever (NLA) | 1 | $ 6.34 | ||
| 16 | 19111-94502 Throttle Control Lever (NLA)
SKU: 19111-94502 Weight: 0.100000 Brand: Price: $ 14.43 |
Throttle Control Lever (NLA) | 1 | $ 14.43 | ||
| 17 | 67413-98100 Rod (NLA)
SKU: 67413-98100 Weight: 0.125000 Brand: Price: $ 10.37 |
Rod (NLA) | 1 | $ 10.37 | ||
| 18 | 19141-94512 Throttle Cam (NLA)
SKU: 19141-94512 Weight: 0.100000 Brand: Price: $ 4.47 |
Throttle Cam (NLA) | 1 | $ 4.47 | ||
| 19 | 01421-06307 BOLTSTUD
SKU: 01421-06307 Weight: 0.200000 Brand: Price: $ 2.62 |
BOLTSTUD | 1 | $ 2.62 | ||
| 20 | 09159-06015 Nut
SKU: 09159-06015 Weight: 0.100000 Brand: Price: $ 1.83 |
Nut | 1 | $ 1.83 | ||
| 21 | 09180-06094 Spacer (NLA)
SKU: 09180-06094 Weight: 0.060000 Brand: Price: $ 0.00 |
Spacer (NLA) | 1 | $ 0.00 | ||
| 22 | 09160-06062 Washer (NLA)
SKU: 09160-06062 Weight: 0.060000 Brand: Price: $ 0.45 |
Washer (NLA) | 1 | $ 0.45 | ||
| 23 | 19131-94503 Cable Rod Retainer
SKU: 19131-94503 Weight: 0.060000 Brand: Price: $ 2.18 |
Cable Rod Retainer | 2 | $ 2.18 | ||
| 24 | 19137-94500 Cable Link Rod
SKU: 19137-94500 Weight: 0.060000 Brand: Price: $ 4.60 |
Cable Link Rod | 2 | $ 4.60 | ||
| 25 | 09159-05011 Turnbuckle
SKU: 09159-05011 Weight: 0.060000 Brand: Price: $ 7.96 |
Turnbuckle | 2 | $ 7.96 | ||
| 26 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 27 | 09119-05010 Pivot Ball
SKU: 09119-05010 Weight: 0.060000 Brand: Price: $ 6.97 |
Pivot Ball | 2 | $ 6.97 | ||
| 28 | 19138-94500 Connector (NLA)
SKU: 19138-94500 Weight: 0.100000 Brand: Price: $ 3.20 |
Connector (NLA) | 2 | $ 3.20 | ||
| 29 | 19139-94500 Pin (NLA)
SKU: 19139-94500 Weight: 0.100000 Brand: Price: $ 1.87 |
Pin (NLA) | 2 | $ 1.87 | ||
| 30 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
