Suzuki DT 140 Parts Listings 1983 to 1985

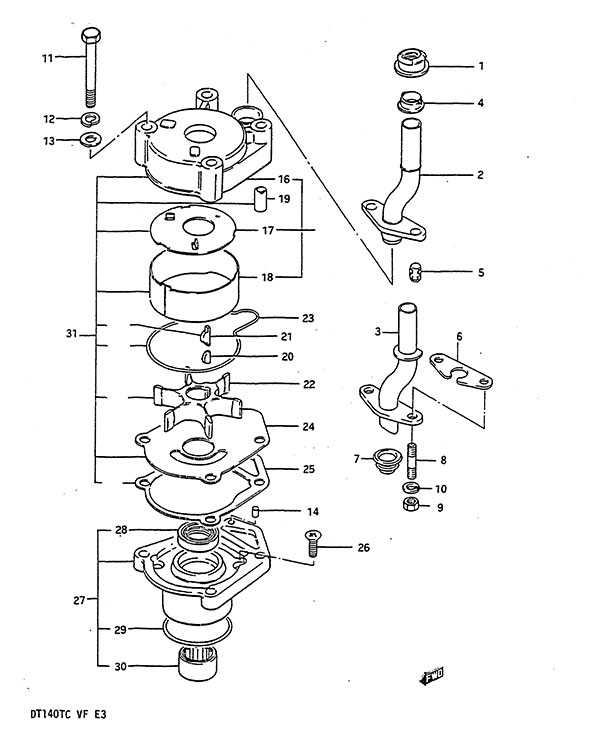

Fig. 9 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17563-94502 Water Tube Bushing
SKU: 17563-94502 Weight: 0.060000 Brand: Price: $ 2.87 |
Water Tube Bushing | 1 | $ 2.87 | ||
| 2-1 | 17560-94502 Water Tube (L) (NLA)
SKU: 17560-94502 Weight: 0.200000 Brand: Price: $ 14.44 |
Water Tube (L) (NLA) | 1 | $ 14.44 | S/N 406441 Older | |
| 2-2 | 17560-94511 Water Tube (X) (NLA)
SKU: 17560-94511 Weight: 0.100000 Brand: Price: $ 17.34 |
Water Tube (X) (NLA) | 1 | $ 17.34 | S/N 406441 Older | |
| 3-1 | 17560-94521 Water Tube (L)
SKU: 17560-94521 Weight: 0.250000 Brand: Price: $ 39.88 |
Water Tube (L) | 1 | $ 39.88 | S/N 406442 Newer | |
| 3-2 | 17560-94530 Water Tube (X) (NLA)
SKU: 17560-94530 Weight: 0.100000 Brand: Price: $ 15.44 |
Water Tube (X) (NLA) | 1 | $ 15.44 | S/N 406442 Newer | |
| 4 | 09306-16002 Bushing
SKU: 09306-16002 Weight: 0.060000 Brand: Price: $ 1.62 |
Bushing | 1 | $ 1.62 | ||
| 5 | 09250-09004 Cap (NLA)
SKU: 09250-09004 Weight: 0.100000 Brand: Price: $ 0.87 |
Cap (NLA) | 2 | $ 0.87 | S/N 406441 Older | |
| 6 | 17567-94510 Water Tube Gasket (NLA)
SKU: 17567-94510 Weight: 0.060000 Brand: Price: $ 2.95 |
Water Tube Gasket (NLA) | 1 | $ 2.95 | S/N 406442 Newer | |
| 7 | 09320-16011 Bushing
SKU: 09320-16011 Weight: 0.060000 Brand: Price: $ 2.67 |
Bushing | 1 | $ 2.67 | S/N 406442 Newer | |
| 8 | 09108-06060 Stud Bolt (6x18)
SKU: 09108-06060 Weight: 0.060000 Brand: Price: $ 1.74 |
Stud Bolt (6x18) | 2 | $ 1.74 | S/N 406442 Newer | |
| 9 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | S/N 406442 Newer | |
| 10 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | S/N 406442 Newer | |
| 11 | 09117-08062 Bolt (8x70)
SKU: 09117-08062 Weight: 0.080000 Brand: Price: $ 8.18 |
Bolt (8x70) | 4 | $ 8.18 | ||
| 12 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 4 | $ 1.49 | ||
| 13 | 09160-08059 Washer (8.5x18x1.6)
SKU: 09160-08059 Weight: 0.060000 Brand: Price: $ 1.69 |
Washer (8.5x18x1.6) | 4 | $ 1.69 | ||
| 14 | 09202-04008 Dowel Pin (4x9)
SKU: 09202-04008 Weight: 0.060000 Brand: Price: $ 1.49 |
Dowel Pin (4x9) | 1 | $ 1.49 | ||
| 16 | 17410-94513 Water Pump Case (NLA)
SKU: 17410-94513 Weight: 0.700000 Brand: Price: $ 110.67 |
Water Pump Case (NLA) | 1 | $ 110.67 | ||
| 17 | 17412-94500 Water Pump Case Panel (NLA)
SKU: 17412-94500 Weight: 0.060000 Brand: Price: $ 5.88 |
Water Pump Case Panel (NLA) | 1 | $ 5.88 | ||
| 18 | 17413-94501 Water Pump Case Sleeve (NLA)
SKU: 17413-94501 Weight: 0.100000 Brand: Price: $ 3.71 |
Water Pump Case Sleeve (NLA) | 1 | $ 3.71 | ||
| 19 | 09206-11009 Pin (NLA)
SKU: 09206-11009 Weight: 0.125000 Brand: Price: $ 4.54 |
Pin (NLA) | 4 | $ 4.54 | ||
| 20 | 09420-05005 Key (NLA)
SKU: 09420-05005 Weight: 0.060000 Brand: Price: $ 9.39 |
Key (NLA) | 1 | $ 9.39 | S/N 406000 Older | |
| 21 | 09420-05005 Key (NLA)
SKU: 09420-05005 Weight: 0.060000 Brand: Price: $ 9.39 |
Key (NLA) | 1 | $ 9.39 | S/N 406001 Newer | |
| 22 | 17461-90J01 Water Pump Impeller
SKU: 17461-90J01 Weight: 0.160000 Brand: Price: $ 67.58 |
Water Pump Impeller | 1 | $ 67.58 | ||
| 23 | 17416-94501 Seal Ring
SKU: 17416-94501 Weight: 0.060000 Brand: Price: $ 4.64 |
Seal Ring | 1 | $ 4.64 | ||
| 24 | 17471-94501 Water Pump Plate (NLA)
SKU: 17471-94501 Weight: 0.200000 Brand: Price: $ 13.72 |
Water Pump Plate (NLA) | 1 | $ 13.72 | ||
| 25 | 17472-94510 Water Pump Plate Gasket
SKU: 17472-94510 Weight: 0.060000 Brand: Price: $ 7.42 |
Water Pump Plate Gasket | 1 | $ 7.42 | ||
| 26 | 09126-06006 Screw (6x20)
SKU: 09126-06006 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (6x20) | 4 | $ 1.88 | ||
| 27 | 56130-94502 Drive Shaft Bearing Housing (NLA)
SKU: 56130-94502 Weight: 1.000000 Brand: Price: $ 103.85 |
Drive Shaft Bearing Housing (NLA) | 1 | $ 103.85 | ||
| 28-1 | 09289-24001 Oil Seal (24x35x10) (NLA)
SKU: 09289-24001 Weight: 0.200000 Brand: Price: $ 9.46 |
Oil Seal (24x35x10) (NLA) | 1 | $ 9.46 | 1983 | |
| 28-2 | 09282-24003 Oil Seal (24x36x6)
SKU: 09282-24003 Weight: 0.060000 Brand: Price: $ 5.41 |
Oil Seal (24x36x6) | 2 | $ 5.41 | 1984 to 1985 | |
| 29 | 09280-55002 O-Ring
SKU: 09280-55002 Weight: 0.060000 Brand: Price: $ 2.86 |
O-Ring | 1 | $ 2.86 | ||
| 30 | 09263-26010 Bearing (26x34x20)(NLA)
SKU: 09263-26010 Weight: 0.100000 Brand: Price: $ 37.45 |
Bearing (26x34x20)(NLA) | 1 | $ 37.45 | ||
| 31 | 17400-94553 Water Pump Repair Kit DT115 / DT140 (NLA)
SKU: 17400-94553 Weight: 0.980000 Brand: Price: $ 233.98 |
Water Pump Repair Kit DT115 / DT140 (NLA) | 1 | $ 233.98 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
