Suzuki DT 140 Parts Listings 1983

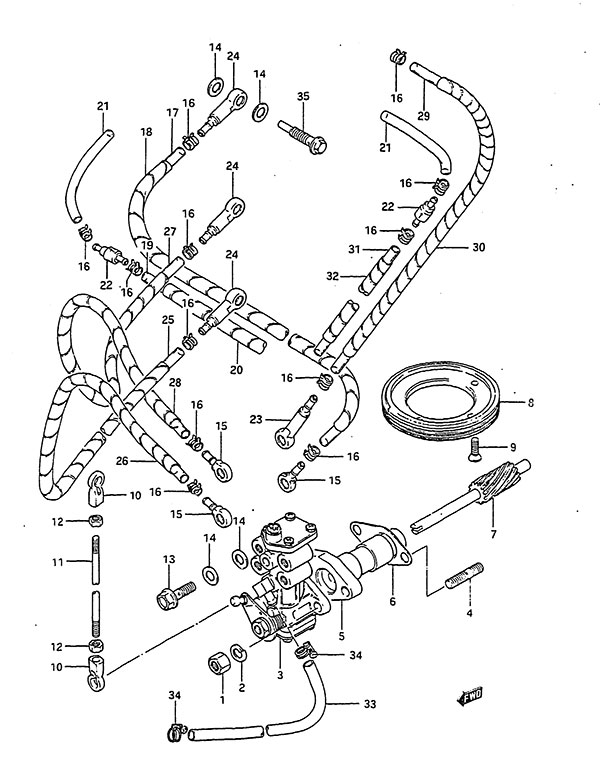

Fig. 7 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09140-06013 Nut (NLA)
SKU: 09140-06013 Weight: 0.100000 Brand: Price: $ 0.66 |
Nut (NLA) | 2 | $ 0.66 | ||
| 2 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.57 |
Lock Washer | 2 | $ 1.57 | ||
| 3 | 16100-94506 Oil Pump Assembly (NLA)
SKU: 16100-94506 Weight: 0.100000 Brand: Price: $ 77.02 |
Oil Pump Assembly (NLA) | 1 | $ 77.02 | ||
| 4 | 01421-06307 BOLTSTUD
SKU: 01421-06307 Weight: 0.200000 Brand: Price: $ 2.77 |
BOLTSTUD | 2 | $ 2.77 | ||
| 5 | 16340-94501 Driven Gear Retainer (NLA)
SKU: 16340-94501 Weight: 0.100000 Brand: Price: $ 21.84 |
Driven Gear Retainer (NLA) | 1 | $ 21.84 | ||
| 6 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 7 | 16331-94500 Oil Pump Driven Gear (NLA)
SKU: 16331-94500 Weight: 0.100000 Brand: Price: $ 27.95 |
Oil Pump Driven Gear (NLA) | 1 | $ 27.95 | ||
| 8 | 16321-94501 Drive Gear (NLA)
SKU: 16321-94501 Weight: 0.100000 Brand: Price: $ 100.61 |
Drive Gear (NLA) | 1 | $ 100.61 | ||
| 9 | 02122-0630B SCREW
SKU: 02122-0630B Weight: 0.125000 Brand: Price: $ 2.17 |
SCREW | 3 | $ 2.17 | ||
| 10 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.68 |
Connector | 2 | $ 4.68 | ||
| 11 | 16411-94502 Oil Pump Control Rod (NLA)
SKU: 16411-94502 Weight: 0.100000 Brand: Price: $ 5.30 |
Oil Pump Control Rod (NLA) | 1 | $ 5.30 | ||
| 12 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.74 |
Nut | 2 | $ 2.74 | ||
| 13 | 09360-06012 Union Bolt
SKU: 09360-06012 Weight: 0.100000 Brand: Price: $ 3.62 |
Union Bolt | 4 | $ 3.62 | ||
| 14 | 09168-06023 Gasket
SKU: 09168-06023 Weight: 0.060000 Brand: Price: $ 2.15 |
Gasket | 14 | $ 2.15 | ||
| 15 | 09363-02002 Union
SKU: 09363-02002 Weight: 0.060000 Brand: Price: $ 8.80 |
Union | 3 | $ 8.80 | ||
| 16-1 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.23 |
Clamp | 8 | $ 2.23 | S/N 304637 Older | |
| 16-2 | 09168-06023 Gasket
SKU: 09168-06023 Weight: 0.060000 Brand: Price: $ 2.15 |
Gasket | 12 | $ 2.15 | S/N 304638 Newer | |
| 18 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 1 | $ 8.74 | S/N 304637 Older | |
| 17 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | S/N 304637 Older L:600->270 | |
| 19 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | S/N 304638 Newer L:600->210 | |
| 20 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 1 | $ 8.74 | S/N 304638 Newer | |
| 21 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 2 | $ 6.08 | S/N 304638 Newer L:600->50 | |
| 22 | 16710-94520 Check Valve (NLA)
SKU: 16710-94520 Weight: 0.100000 Brand: Price: $ 9.73 |
Check Valve (NLA) | 2 | $ 9.73 | S/N 304638 Newer | |
| 23 | 16710-94511 Check Valve (NLA)
SKU: 16710-94511 Weight: 0.100000 Brand: Price: $ 4.00 |
Check Valve (NLA) | 1 | $ 4.00 | ||
| 24 | 16710-94502 Check Valve (NLA)
SKU: 16710-94502 Weight: 0.060000 Brand: Price: $ 11.89 |
Check Valve (NLA) | 3 | $ 11.89 | ||
| 25 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | L:600->320 | |
| 26 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 1 | $ 8.74 | L:600->290 | |
| 27 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | L:600->210 | |
| 28 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 1 | $ 8.74 | ||
| 29 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | S/N 304157 Older L:600->420 | |
| 30 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 1 | $ 8.74 | S/N 304157 Older | |
| 31 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | S/N 304158 Newer L:600->370 | |
| 32 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.74 |
Protector | 1 | $ 8.74 | S/N 304158 Newer | |
| 33 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.73 |
Hose (5x8x2000) | 1 | $ 9.73 | L:2000->330 | |
| 34 | 09400-10302 Oil Hose Clamp
SKU: 09400-10302 Weight: 0.100000 Brand: Price: $ 3.50 |
Oil Hose Clamp | 2 | $ 3.50 | ||
| 35 | 09360-06009 Oil Nozzle Bolt
SKU: 09360-06009 Weight: 0.200000 Brand: Price: $ 7.30 |
Oil Nozzle Bolt | 3 | $ 7.30 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
