Suzuki DT 140 Parts Listings 1983 to 1985

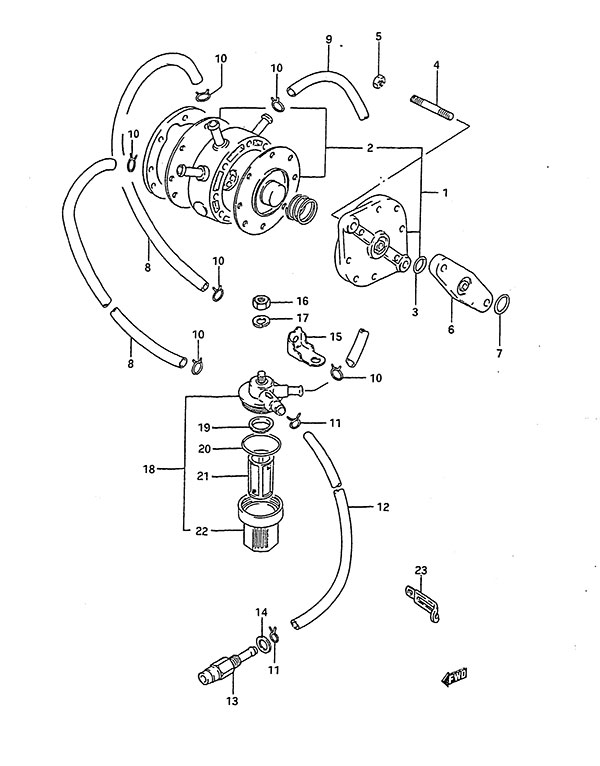

Fig. 6 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-9450V Fuel Pump Assembly (NLA)
SKU: 15100-9450V Weight: 0.820000 Brand: Price: $ 127.47 |
Fuel Pump Assembly (NLA) | 1 | $ 127.47 | ||
| 2 | 15100-7281V Fuel Pump Diaphragm Set
SKU: 15100-7281V Weight: 0.125000 Brand: Price: $ 30.28 |
Fuel Pump Diaphragm Set | 1 | $ 30.28 | ||
| 3 | 15165-93010 Fuel Pump O-Ring
SKU: 15165-93010 Weight: 0.060000 Brand: Price: $ 3.53 |
Fuel Pump O-Ring | 1 | $ 3.53 | ||
| 4 | 01421-06307 BOLTSTUD
SKU: 01421-06307 Weight: 0.200000 Brand: Price: $ 2.62 |
BOLTSTUD | 2 | $ 2.62 | ||
| 5 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 2 | $ 2.25 | ||
| 6 | 15322-93000 Fuel Pump Insulator(NLA)
SKU: 15322-93000 Weight: 0.060000 Brand: Price: $ 13.35 |
Fuel Pump Insulator(NLA) | 1 | $ 13.35 | ||
| 7 | 09280-12012 O-Ring
SKU: 09280-12012 Weight: 0.060000 Brand: Price: $ 4.73 |
O-Ring | 1 | $ 4.73 | ||
| 8 | 09355-70125-00B Fuel Hose (L:2000)
SKU: 09355-70125-00B Weight: 0.500000 Brand: Price: $ 36.71 |
Fuel Hose (L:2000) | 2 | $ 36.71 | Pump to Carb L:2000->470 | |
| 9 | 09355-70125-00B Fuel Hose (L:2000)
SKU: 09355-70125-00B Weight: 0.500000 Brand: Price: $ 36.71 |
Fuel Hose (L:2000) | 1 | $ 36.71 | Filter to Pump L:2000->110 | |
| 10 | 09401-11403 Fuel Hose Clip
SKU: 09401-11403 Weight: 0.060000 Brand: Price: $ 2.62 |
Fuel Hose Clip | 6 | $ 2.62 | ||
| 11 | 09401-11403 Fuel Hose Clip
SKU: 09401-11403 Weight: 0.060000 Brand: Price: $ 2.62 |
Fuel Hose Clip | 2 | $ 2.62 | ||
| 12 | 09355-70125-00B Fuel Hose (L:2000)
SKU: 09355-70125-00B Weight: 0.500000 Brand: Price: $ 36.71 |
Fuel Hose (L:2000) | 1 | $ 36.71 | Connector to Filter L:2000->235 | |
| 13 | 65720-955L1 Fuel Connector
SKU: 65720-955L1 Weight: 0.100000 Brand: Price: $ 59.85 |
Fuel Connector | 1 | $ 59.85 | ||
| 14 | 09161-12004 Washer
SKU: 09161-12004 Weight: 0.060000 Brand: Price: $ 2.34 |
Washer | 1 | $ 2.34 | ||
| 15 | 15421-94500-02M Fuel Filter Bracket (NLA)
SKU: 15421-94500-02M Weight: 0.100000 Brand: Price: $ 1.01 |
Fuel Filter Bracket (NLA) | 1 | $ 1.01 | ||
| 16 | 08310-00087 Nut (8mm)
SKU: 08310-00087 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut (8mm) | 1 | $ 1.85 | ||
| 17 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 18 | 15410-95541 Fuel Filter Assy
SKU: 15410-95541 Weight: 0.120000 Brand: Price: $ 24.50 |
Fuel Filter Assy | 1 | $ 24.50 | ||
| 19 | 15416-93400 Filter Packing (NLA)
SKU: 15416-93400 Weight: 0.060000 Brand: Price: $ 0.98 |
Filter Packing (NLA) | 1 | $ 0.98 | ||
| 20 | 15415-93400 Fuel Strainer O-Ring
SKU: 15415-93400 Weight: 0.060000 Brand: Price: $ 2.18 |
Fuel Strainer O-Ring | 1 | $ 2.18 | ||
| 21 | 15430-93412 Fuel Filter Strainer Set
SKU: 15430-93412 Weight: 0.060000 Brand: Price: $ 10.52 |
Fuel Filter Strainer Set | 1 | $ 10.52 | ||
| 22 | 15413-93400 Fuel Strainer Cup (NLA)
SKU: 15413-93400 Weight: 0.060000 Brand: Price: $ 5.82 |
Fuel Strainer Cup (NLA) | 1 | $ 5.82 | ||
| 23 | 09404-06201 Wire Clamp (NLA)
SKU: 09404-06201 Weight: 0.060000 Brand: Price: $ 0.39 |
Wire Clamp (NLA) | 1 | $ 0.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
