Suzuki DT 140 Parts Listings 1983 to 1985

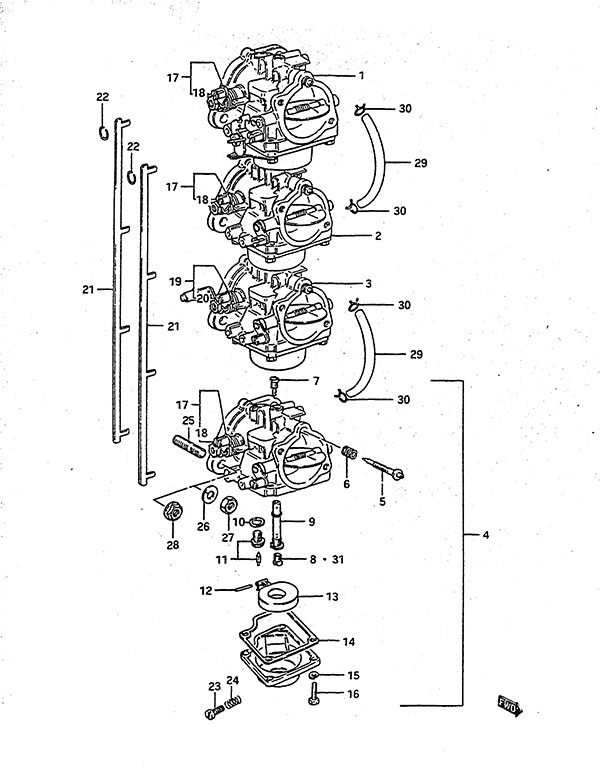

Fig. 4 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13201-94511 Top Carburetor Assembly (NLA)
SKU: 13201-94511 Weight: 1.000000 Brand: Price: $ 321.80 |
Top Carburetor Assembly (NLA) | 1 | $ 321.80 | ||
| 2-1 | 13202-94511 2nd Carburetor Assembly (NLA)
SKU: 13202-94511 Weight: 0.100000 Brand: Price: $ 119.35 |
2nd Carburetor Assembly (NLA) | 1 | $ 119.35 | S/N 507738 Older | |
| 2-2 | 13202-94512 2nd Carburetor Assembly (NLA)
SKU: 13202-94512 Weight: 0.100000 Brand: Price: $ 208.17 |
2nd Carburetor Assembly (NLA) | 1 | $ 208.17 | S/N 507739 Newer | |
| 3 | 13203-94511 3rd Carburetor Assembly (NLA)
SKU: 13203-94511 Weight: 0.100000 Brand: Price: $ 187.06 |
3rd Carburetor Assembly (NLA) | 1 | $ 187.06 | ||
| 4-1 | 13204-94511 4th Carburetor Assembly (NLA)
SKU: 13204-94511 Weight: 0.100000 Brand: Price: $ 127.75 |
4th Carburetor Assembly (NLA) | 1 | $ 127.75 | S/N 507738 Older | |
| 4-2 | 13204-94512 4th Carburetor Assembly (NLA)
SKU: 13204-94512 Weight: 0.100000 Brand: Price: $ 199.24 |
4th Carburetor Assembly (NLA) | 1 | $ 199.24 | S/N 507739 Newer | |
| 5 | 13269-95210 Pilot Air Screw
SKU: 13269-95210 Weight: 0.060000 Brand: Price: $ 8.28 |
Pilot Air Screw | 4 | $ 8.28 | ||
| 6 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 4 | $ 4.90 | ||
| 7 | 09492-80005 Pilot Jet #80
SKU: 09492-80005 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #80 | 4 | $ 10.00 | ||
| 8 | 09491-32012 Main Jet #160
SKU: 09491-32012 Weight: 0.060000 Brand: Price: $ 12.00 |
Main Jet #160 | 4 | $ 12.00 | ||
| 9 | 13235-95210 Main Nozzle
SKU: 13235-95210 Weight: 0.060000 Brand: Price: $ 24.93 |
Main Nozzle | 4 | $ 24.93 | ||
| 10 | 13392-58600 Valve Seat Gasket
SKU: 13392-58600 Weight: 0.060000 Brand: Price: $ 1.91 |
Valve Seat Gasket | 4 | $ 1.91 | ||
| 11 | 13370-28110 Needle Valve Assembly
SKU: 13370-28110 Weight: 0.060000 Brand: Price: $ 49.35 |
Needle Valve Assembly | 4 | $ 49.35 | ||
| 12 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 4 | $ 3.28 | ||
| 13 | 13250-93012 Carburetor Float
SKU: 13250-93012 Weight: 0.060000 Brand: Price: $ 20.17 |
Carburetor Float | 4 | $ 20.17 | ||
| 14 | 13251-95220 Float Chamber Gasket
SKU: 13251-95220 Weight: 0.060000 Brand: Price: $ 8.56 |
Float Chamber Gasket | 4 | $ 8.56 | ||
| 15 | 09162-05002 Lock Washer
SKU: 09162-05002 Weight: 0.125000 Brand: Price: $ 1.27 |
Lock Washer | 16 | $ 1.27 | ||
| 16 | 13611-95212 Bolt (NLA)
SKU: 13611-95212 Weight: 0.100000 Brand: Price: $ 1.80 |
Bolt (NLA) | 16 | $ 1.80 | ||
| 17 | 13513-94511 Throttle Lever (NLA)
SKU: 13513-94511 Weight: 0.100000 Brand: Price: $ 8.34 |
Throttle Lever (NLA) | 3 | $ 8.34 | ||
| 18 | 13542-94500 Rod Connector (NLA)
SKU: 13542-94500 Weight: 0.060000 Brand: Price: $ 4.70 |
Rod Connector (NLA) | 6 | $ 4.70 | ||
| 19 | 13511-94510 Throttle Lever (NLA)
SKU: 13511-94510 Weight: 0.100000 Brand: Price: $ 11.43 |
Throttle Lever (NLA) | 1 | $ 11.43 | ||
| 20 | 13542-94500 Rod Connector (NLA)
SKU: 13542-94500 Weight: 0.060000 Brand: Price: $ 4.70 |
Rod Connector (NLA) | 2 | $ 4.70 | ||
| 21 | 13541-94510 Plate (NLA)
SKU: 13541-94510 Weight: 0.100000 Brand: Price: $ 20.30 |
Plate (NLA) | 2 | $ 20.30 | ||
| 22 | 13579-98100 Clip (NLA)
SKU: 13579-98100 Weight: 0.060000 Brand: Price: $ 1.62 |
Clip (NLA) | 8 | $ 1.62 | ||
| 23 | 13616-94500 Drain Bolt
SKU: 13616-94500 Weight: 0.060000 Brand: Price: $ 7.95 |
Drain Bolt | 4 | $ 7.95 | ||
| 24 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 4 | $ 4.90 | ||
| 25 | 01411-08208 01411-08203
SKU: 01411-08208 Weight: 0.100000 Brand: Price: $ 0.85 |
01411-08203 | 8 | $ 0.85 | ||
| 26 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 8 | $ 1.85 | ||
| 27 | 08310-00087 Nut (8mm)
SKU: 08310-00087 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut (8mm) | 8 | $ 1.85 | ||
| 28 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 8 | $ 2.27 | ||
| 29 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | L:600->135 | |
| 30 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 4 | $ 1.86 | ||
| 31-1 | 09491-33004 Main Jet #165
SKU: 09491-33004 Weight: 0.060000 Brand: Price: $ 11.60 |
Main Jet #165 | 4 | $ 11.60 | Optional | |
| 31-2 | 09491-31014 Main Jet #155
SKU: 09491-31014 Weight: 0.200000 Brand: Price: $ 16.47 |
Main Jet #155 | 4 | $ 16.47 | Optional | |
| 31-3 | 09491-30010 Main Jet #150
SKU: 09491-30010 Weight: 0.062500 Brand: Price: $ 7.82 |
Main Jet #150 | 4 | $ 7.82 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
