Suzuki DT 140 Parts Listings 1983 to 1985

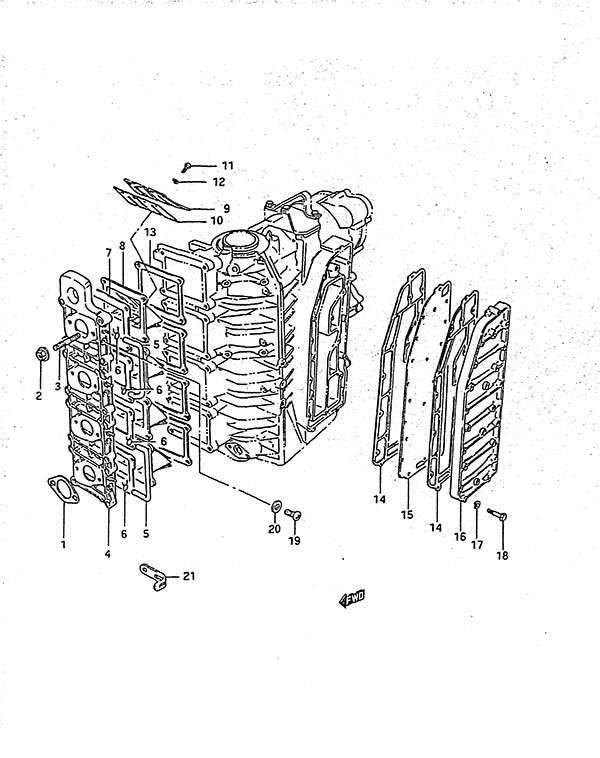

Fig. 3 - Inlet Case - Exhaust Cover

Ref#	Part Number	Description	Req Qty*	Price Each	Order	Remarks
1	13125-95210 Carburetor Gasket SKU: 13125-95210 Weight: 0.060000 Brand: Price: $ 4.33	Carburetor Gasket	4	$ 4.33
2	08316-10087 Nut SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27	Nut	16	$ 2.27
3	01421-0835A BOLT,STUD SKU: 01421-0835A Weight: 0.200000 Brand: Price: $ 2.30	BOLT,STUD	16	$ 2.30
4-1	13110-94513 Inlet Case (NLA) SKU: 13110-94513 Weight: 0.100000 Brand: Price: $ 0.00	Inlet Case (NLA)	1	$ 0.00	Not Available	1983
4-2	13110-94514 Inlet Case (NLA) SKU: 13110-94514 Weight: 0.100000 Brand: Price: $ 115.24	Inlet Case (NLA)	1	$ 115.24	Not Available	1984 to 1985
5	09355-30001-600 Hose (3x7x600) SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 8.71	Hose (3x7x600)	2	$ 8.71		L:600->140
6	09401-06101 Clamp SKU: 09401-06101 Weight: 0.060000 Brand: Price: $ 2.04	Clamp	4	$ 2.04
7	13121-94510 Inlet Case Gasket (NLA) SKU: 13121-94510 Weight: 0.060000 Brand: Price: $ 5.45	Inlet Case Gasket (NLA)	4	$ 5.45	Not Available
8	13150-94502 Reed Valve Assembly (NLA) SKU: 13150-94502 Weight: 0.500000 Brand: Price: $ 122.84	Reed Valve Assembly (NLA)	4	$ 122.84	Not Available
9	13152-94501 Reed Valve Stopper (NLA) SKU: 13152-94501 Weight: 0.100000 Brand: Price: $ 7.17	Reed Valve Stopper (NLA)	16	$ 7.17
10-1	13153-94500 Reed Valve (NLA) SKU: 13153-94500 Weight: 0.060000 Brand: Price: $ 13.38	Reed Valve (NLA)	16	$ 13.38	Not Available	S/N 406620 Older
10-2	13153-94510 Reed Valve (NLA) SKU: 13153-94510 Weight: 0.060000 Brand: Price: $ 9.67	Reed Valve (NLA)	16	$ 9.67		S/N 506621 Newer
11	02112-03087 02112-0308A SKU: 02112-03087 Weight: 0.125000 Brand: Price: $ 0.43	02112-0308A	32	$ 0.43
12	09162-03001 Lock Washer SKU: 09162-03001 Weight: 0.100000 Brand: Price: $ 1.16	Lock Washer	32	$ 1.16
13	13156-94511 Reed Valve Gasket (NLA) SKU: 13156-94511 Weight: 0.060000 Brand: Price: $ 7.44	Reed Valve Gasket (NLA)	4	$ 7.44	Not Available
14	14151-94510 Exhaust Cover Gasket SKU: 14151-94510 Weight: 0.250000 Brand: Price: $ 19.71	Exhaust Cover Gasket	2	$ 19.71	Not Available
15	14131-94503 Exhaust Plate SKU: 14131-94503 Weight: 1.010000 Brand: Price: $ 54.23	Exhaust Plate	1	$ 54.23	Not Available
16	14141-94500-0ED Exhaust Cover (NLA) SKU: 14141-94500-0ED Weight: 3.000000 Brand: Price: $ 90.87	Exhaust Cover (NLA)	1	$ 90.87	Not Available
17-1	08321-01067 Lock Washer SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85	Lock Washer	20	$ 1.85		1983 to 1984
17-2	08321-01067 Lock Washer SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85	Lock Washer	23	$ 1.85		1985
18-1	09100-06033 Replaced by 64455-07L00 SKU: 09100-06033 Weight: 0.200000 Brand: Price: $ 1.35	Replaced by 64455-07L00	20	$ 1.35		1983 to 1984
18-2	09100-06033 Replaced by 64455-07L00 SKU: 09100-06033 Weight: 0.200000 Brand: Price: $ 1.35	Replaced by 64455-07L00	23	$ 1.35		1985
19	09125-06053 Screw (6x16) SKU: 09125-06053 Weight: 0.060000 Brand: Price: $ 2.20	Screw (6x16)	1	$ 2.20		1983
20	09168-06023 Gasket SKU: 09168-06023 Weight: 0.060000 Brand: Price: $ 2.04	Gasket	1	$ 2.04		1983
21-1	09404-08420 Clamp SKU: 09404-08420 Weight: 0.125000 Brand: Price: $ 3.21	Clamp	1	$ 3.21		1983
21-2	09404-08205 Clamp (L:62) SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06	Clamp (L:62)	1	$ 2.06	Not Available	1984 to 1985

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
