Suzuki DT 140 Parts Listings 1983 to 1985

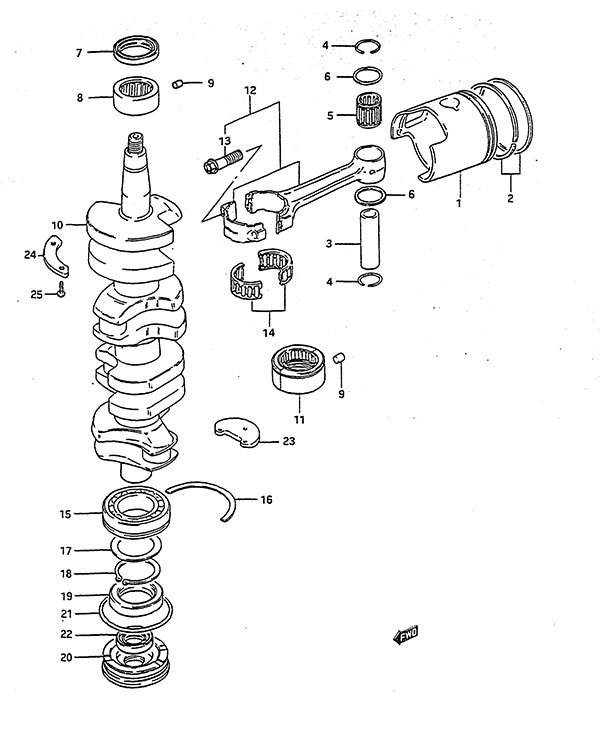

Fig. 2 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 12110-94511 Piston (NLA)
SKU: 12110-94511 Weight: 0.100000 Brand: Price: $ 0.00 |
Piston (NLA) | 4 | $ 0.00 | S/N 304856 Older | |
| 1-2 | 12110-94512 Piston (NLA)
SKU: 12110-94512 Weight: 0.100000 Brand: Price: $ 30.59 |
Piston (NLA) | 4 | $ 30.59 | S/N 304857 to 407169 | |
| 1-3 | 12110-94513 Piston (NLA)
SKU: 12110-94513 Weight: 0.100000 Brand: Price: $ 33.35 |
Piston (NLA) | 4 | $ 33.35 | S/N 507170 Newer | |
| 1-4 | 12110-94511-025 Piston (OS:0.25) (NLA)
SKU: 12110-94511-025 Weight: 0.100000 Brand: Price: $ 0.00 |
Piston (OS:0.25) (NLA) | 4 | $ 0.00 | S/N 304856 Older | |
| 1-5 | 12110-94512-025 Piston (OS:0.25) (NLA)
SKU: 12110-94512-025 Weight: 0.100000 Brand: Price: $ 30.59 |
Piston (OS:0.25) (NLA) | 4 | $ 30.59 | S/N 304857 to 407169 | |
| 1-6 | 12110-94513-025 Piston (OS:0.25) (NLA)
SKU: 12110-94513-025 Weight: 0.100000 Brand: Price: $ 33.35 |
Piston (OS:0.25) (NLA) | 4 | $ 33.35 | S/N 507170 Newer | |
| 1-7 | 12103-94820-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12103-94820-050 Weight: 1.000000 Brand: Price: $ 137.10 |
Piston & Ring Set (OS:0.50) (NLA) | 4 | $ 137.10 | ||
| 2-1 | 12140-87D02 Piston Ring Set
SKU: 12140-87D02 Weight: 0.250000 Brand: Price: $ 43.30 |
Piston Ring Set | 4 | $ 43.30 | ||
| 2-2 | 12140-95320-025 Piston Ring Set (OS:0.25)(NLA)
SKU: 12140-95320-025 Weight: 0.250000 Brand: Price: $ 41.79 |
Piston Ring Set (OS:0.25)(NLA) | 4 | $ 41.79 | ||
| 2-3 | 12140-95320-050 Piston Ring Set (OS:0.50)
SKU: 12140-95320-050 Weight: 0.250000 Brand: Price: $ 43.05 |
Piston Ring Set (OS:0.50) | 4 | $ 43.05 | ||
| 3 | 12151-94601 Piston Pin
SKU: 12151-94601 Weight: 0.250000 Brand: Price: $ 17.18 |
Piston Pin | 4 | $ 17.18 | ||
| 4 | 09381-22002 Circlip
SKU: 09381-22002 Weight: 0.060000 Brand: Price: $ 1.43 |
Circlip | 8 | $ 1.43 | ||
| 5 | 09263-22063 Bearing (22x28x30)
SKU: 09263-22063 Weight: 0.100000 Brand: Price: $ 31.68 |
Bearing (22x28x30) | 4 | $ 31.68 | ||
| 6 | 09181-22251 Washer
SKU: 09181-22251 Weight: 0.060000 Brand: Price: $ 3.28 |
Washer | 8 | $ 3.28 | ||
| 7 | 09283-40024 Oil Seal (40x26x8)
SKU: 09283-40024 Weight: 0.060000 Brand: Price: $ 9.45 |
Oil Seal (40x26x8) | 1 | $ 9.45 | ||
| 8 | 09263-40003 Bearing (NLA)
SKU: 09263-40003 Weight: 0.100000 Brand: Price: $ 98.59 |
Bearing (NLA) | 1 | $ 98.59 | Upper | |
| 9 | 04221-04089 PIN 4X8
SKU: 04221-04089 Weight: 0.060000 Brand: Price: $ 1.11 |
PIN 4X8 | 4 | $ 1.11 | ||
| 10 | 12220-94508 Crankshaft (NLA)
SKU: 12220-94508 Weight: 50.000000 Brand: Price: $ 980.82 |
Crankshaft (NLA) | 1 | $ 980.82 | ||
| 11 | 09269-40002 Bearing (NLA)
SKU: 09269-40002 Weight: 0.100000 Brand: Price: $ 110.32 |
Bearing (NLA) | 3 | $ 110.32 | Middle | |
| 12 | 12160-94510 Connecting Rod Assembly
SKU: 12160-94510 Weight: 2.000000 Brand: Price: $ 196.37 |
Connecting Rod Assembly | 4 | $ 196.37 | ||
| 13 | 09119-08045 Connecting Rod Bolt (NLA)
SKU: 09119-08045 Weight: 0.060000 Brand: Price: $ 5.10 |
Connecting Rod Bolt (NLA) | 8 | $ 5.10 | ||
| 14 | 09263-35016 Bearing (35x45x24) (NLA)
SKU: 09263-35016 Weight: 0.250000 Brand: Price: $ 152.06 |
Bearing (35x45x24) (NLA) | 4 | $ 152.06 | ||
| 15 | 09262-40003 Bearing (40x80x18) (NLA)
SKU: 09262-40003 Weight: 0.500000 Brand: Price: $ 86.20 |
Bearing (40x80x18) (NLA) | 1 | $ 86.20 | Lower | |
| 16 | 09390-80002 C-Ring
SKU: 09390-80002 Weight: 0.060000 Brand: Price: $ 2.82 |
C-Ring | 1 | $ 2.82 | ||
| 17 | 08211-40552 Thrust Washer
SKU: 08211-40552 Weight: 0.125000 Brand: Price: $ 7.09 |
Thrust Washer | 1 | $ 7.09 | ||
| 18 | 08331-31409 Circlip
SKU: 08331-31409 Weight: 0.125000 Brand: Price: $ 3.10 |
Circlip | 1 | $ 3.10 | ||
| 19 | 09283-40006 Oil Seal (NLA)
SKU: 09283-40006 Weight: 0.060000 Brand: Price: $ 9.85 |
Oil Seal (NLA) | 1 | $ 9.85 | Lower | |
| 20 | 11431-94502 Oil Seal Housing (NLA)
SKU: 11431-94502 Weight: 0.100000 Brand: Price: $ 22.77 |
Oil Seal Housing (NLA) | 1 | $ 22.77 | ||
| 21 | 09280-70005 O-Ring
SKU: 09280-70005 Weight: 0.060000 Brand: Price: $ 6.34 |
O-Ring | 1 | $ 6.34 | ||
| 22 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 1 | $ 6.96 | ||
| 23 | 12271-94501 Balance Weight (NLA)
SKU: 12271-94501 Weight: 0.100000 Brand: Price: $ 7.96 |
Balance Weight (NLA) | 1 | $ 7.96 | Lower | |
| 24 | 12272-94500 Balance Weight (NLA)
SKU: 12272-94500 Weight: 0.100000 Brand: Price: $ 6.98 |
Balance Weight (NLA) | 1 | $ 6.98 | Upper | |
| 25 | 02122-0625A SCREW
SKU: 02122-0625A Weight: 0.125000 Brand: Price: $ 1.49 |
SCREW | 2 | $ 1.49 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
