Suzuki DT 140 Parts Listings 1983 to 1985

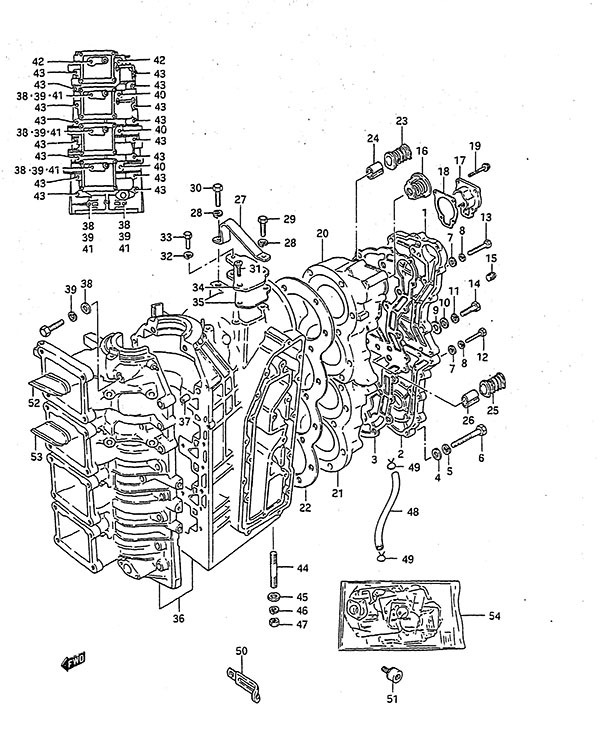

Fig. 1 - Crankcase
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 11151-94502-02M Cylinder Head Upper Cover (NLA)
SKU: 11151-94502-02M Weight: 0.100000 Brand: Price: $ 29.28 |
Cylinder Head Upper Cover (NLA) | 1 | $ 29.28 | 1983 to 1984 | |
| 1-2 | 11151-94610-02M Cylinder Head Upper Cover (NLA)
SKU: 11151-94610-02M Weight: 0.100000 Brand: Price: $ 19.69 |
Cylinder Head Upper Cover (NLA) | 1 | $ 19.69 | 1985 | |
| 2-1 | 11161-94501-02M Cylinder Head Lower Cover (NLA)
SKU: 11161-94501-02M Weight: 0.100000 Brand: Price: $ 36.11 |
Cylinder Head Lower Cover (NLA) | 1 | $ 36.11 | 1983 to 1984 | |
| 2-2 | 11161-94600-02M Cylinder Head Lower Cover (NLA)
SKU: 11161-94600-02M Weight: 0.100000 Brand: Price: $ 36.11 |
Cylinder Head Lower Cover (NLA) | 1 | $ 36.11 | 1985 | |
| 3-1 | 11162-94570 Cylinder Head Cover Gasket (NLA)
SKU: 11162-94570 Weight: 0.220000 Brand: Price: $ 43.02 |
Cylinder Head Cover Gasket (NLA) | 1 | $ 43.02 | 1983 to 1984 | |
| 3-2 | 11162-94630 Cylinder Head Cover Gasket (NLA)
SKU: 11162-94630 Weight: 0.500000 Brand: Price: $ 40.52 |
Cylinder Head Cover Gasket (NLA) | 1 | $ 40.52 | 1985 | |
| 4 | 08322-01107 Washer
SKU: 08322-01107 Weight: 0.060000 Brand: Price: $ 1.87 |
Washer | 20 | $ 1.87 | ||
| 5 | 08321-01107 Lock Washer
SKU: 08321-01107 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 20 | $ 1.85 | ||
| 6 | 01500-1085B BOLT
SKU: 01500-1085B Weight: 0.060000 Brand: Price: $ 4.13 |
BOLT | 20 | $ 4.13 | ||
| 7-1 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 8 | $ 1.85 | 1983 to 1984 | |
| 7-2 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 5 | $ 1.85 | 1985 | |
| 8-1 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 8 | $ 1.85 | 1983 to 1984 | |
| 8-2 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 5 | $ 1.85 | 1985 | |
| 9 | 09160-08054 Washer
SKU: 09160-08054 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 2 | $ 1.44 | 1983 to 1984 | |
| 10 | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 2 | $ 1.85 | 1985 | |
| 11 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 12-1 | 01500-06307 BOLT
SKU: 01500-06307 Weight: 0.060000 Brand: Price: $ 2.52 |
BOLT | 6 | $ 2.52 | 1983 to 1984 | |
| 12-2 | 01500-06307 BOLT
SKU: 01500-06307 Weight: 0.060000 Brand: Price: $ 2.52 |
BOLT | 5 | $ 2.52 | 1985 | |
| 13 | 09100-06033 Replaced by 64455-07L00
SKU: 09100-06033 Weight: 0.200000 Brand: Price: $ 1.35 |
Replaced by 64455-07L00 | 2 | $ 1.35 | 1983 to 1984 | |
| 14 | 01500-0880B BOLT
SKU: 01500-0880B Weight: 0.200000 Brand: Price: $ 3.54 |
BOLT | 2 | $ 3.54 | ||
| 15 | 09246-04005 Plug
SKU: 09246-04005 Weight: 0.060000 Brand: Price: $ 4.11 |
Plug | 1 | $ 4.11 | 1985 | |
| 16 | 17670-95303 Thermostat (42c)
SKU: 17670-95303 Weight: 0.160000 Brand: Price: $ 35.03 |
Thermostat (42c) | 1 | $ 35.03 | ||
| 17 | 17681-94600-02M Thermostat Cover (NLA)
SKU: 17681-94600-02M Weight: 0.100000 Brand: Price: $ 24.09 |
Thermostat Cover (NLA) | 1 | $ 24.09 | 1985 | |
| 18 | 17685-94610 Thermostat Gasket
SKU: 17685-94610 Weight: 0.060000 Brand: Price: $ 6.69 |
Thermostat Gasket | 1 | $ 6.69 | 1985 | |
| 19 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 4 | $ 2.74 | 1985 | |
| 20-1 | 11111-94513-02M Upper Cylinder Head (NLA)
SKU: 11111-94513-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Upper Cylinder Head (NLA) | 1 | $ 0.00 | S/N 304800 Older | |
| 20-2 | 11111-94514-02M Upper Cylinder Head (NLA)
SKU: 11111-94514-02M Weight: 0.100000 Brand: Price: $ 60.38 |
Upper Cylinder Head (NLA) | 1 | $ 60.38 | S/N 304801 to 304983 | |
| 20-3 | 11111-94516-02M Upper Cylinder Head (NLA)
SKU: 11111-94516-02M Weight: 0.100000 Brand: Price: $ 60.38 |
Upper Cylinder Head (NLA) | 1 | $ 60.38 | S/N 304984 to 305081 | |
| 20-4 | 11111-94517-02M Upper Cylinder Head (NLA)
SKU: 11111-94517-02M Weight: 0.100000 Brand: Price: $ 110.27 |
Upper Cylinder Head (NLA) | 1 | $ 110.27 | 1984 | |
| 20-5 | 11111-94610-0ED Upper Cylinder Head (NLA)
SKU: 11111-94610-0ED Weight: 4.500000 Brand: Price: $ 243.34 |
Upper Cylinder Head (NLA) | 1 | $ 243.34 | 1985 | |
| 21 | 11121-94512-02M Lower Cylinder Head (NLA)
SKU: 11121-94512-02M Weight: 0.100000 Brand: Price: $ 82.46 |
Lower Cylinder Head (NLA) | 1 | $ 82.46 | ||
| 22 | 11141-94620 Cylinder Head Gasket
SKU: 11141-94620 Weight: 0.340000 Brand: Price: $ 60.40 |
Cylinder Head Gasket | 1 | $ 60.40 | ||
| 23 | 11181-94501 Cylinder Head Connector
SKU: 11181-94501 Weight: 0.060000 Brand: Price: $ 9.95 |
Cylinder Head Connector | 1 | $ 9.95 | ||
| 24 | 11182-94500 Cylinder Head Connector Insert
SKU: 11182-94500 Weight: 0.060000 Brand: Price: $ 3.53 |
Cylinder Head Connector Insert | 1 | $ 3.53 | ||
| 25 | 11171-94501 Cylinder Head Connector
SKU: 11171-94501 Weight: 0.060000 Brand: Price: $ 10.07 |
Cylinder Head Connector | 1 | $ 10.07 | ||
| 26 | 11172-94500 Cylinder Head Connector Insert
SKU: 11172-94500 Weight: 0.060000 Brand: Price: $ 3.53 |
Cylinder Head Connector Insert | 1 | $ 3.53 | ||
| 27 | 11291-94501 Engine Hook (NLA)
SKU: 11291-94501 Weight: 0.100000 Brand: Price: $ 3.42 |
Engine Hook (NLA) | 1 | $ 3.42 | ||
| 28 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 29 | 01500-08207 BOLT
SKU: 01500-08207 Weight: 0.200000 Brand: Price: $ 2.54 |
BOLT | 1 | $ 2.54 | ||
| 30 | 01500-08257 BOLT
SKU: 01500-08257 Weight: 0.060000 Brand: Price: $ 2.52 |
BOLT | 1 | $ 2.52 | ||
| 31 | 02122-0620A SCREW
SKU: 02122-0620A Weight: 0.125000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 32 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 33 | 01500-06207 BOLT
SKU: 01500-06207 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 34 | 11218-94503 Water Jacket Cover (NLA)
SKU: 11218-94503 Weight: 0.100000 Brand: Price: $ 7.92 |
Water Jacket Cover (NLA) | 1 | $ 7.92 | ||
| 35 | 11219-94503 Cover Gasket (NLA)
SKU: 11219-94503 Weight: 0.125000 Brand: Price: $ 1.09 |
Cover Gasket (NLA) | 1 | $ 1.09 | ||
| 36-1 | 11300-94504-02M Cylinder/Crankcase Assembly (NLA)
SKU: 11300-94504-02M Weight: 0.100000 Brand: Price: $ 0.00 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 0.00 | S/N 305081 Older | |
| 36-2 | 11300-94506-02M Cylinder/Crankcase Assembly (NLA)
SKU: 11300-94506-02M Weight: 0.100000 Brand: Price: $ 1,501.44 |
Cylinder/Crankcase Assembly (NLA) | 1 | $ 1,501.44 | S/N 405082 Newer | |
| 37 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 38 | 08322-01107 Washer
SKU: 08322-01107 Weight: 0.060000 Brand: Price: $ 1.87 |
Washer | 10 | $ 1.87 | ||
| 39 | 08321-01107 Lock Washer
SKU: 08321-01107 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 10 | $ 1.85 | ||
| 40 | 01500-1055A BOLT
SKU: 01500-1055A Weight: 0.200000 Brand: Price: $ 3.61 |
BOLT | 3 | $ 3.61 | ||
| 41 | 01107-10708 01500-10753
SKU: 01107-10708 Weight: 0.100000 Brand: Price: $ 1.15 |
01500-10753 | 5 | $ 1.15 | ||
| 42 | 01500-1080B BOLT
SKU: 01500-1080B Weight: 0.140000 Brand: Price: $ 4.05 |
BOLT | 2 | $ 4.05 | ||
| 43 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 16 | $ 3.48 | ||
| 44 | 09108-10026 Stud Bolt (NLA)
SKU: 09108-10026 Weight: 0.100000 Brand: Price: $ 2.11 |
Stud Bolt (NLA) | 2 | $ 2.11 | ||
| 45 | 08322-01107 Washer
SKU: 08322-01107 Weight: 0.060000 Brand: Price: $ 1.87 |
Washer | 2 | $ 1.87 | ||
| 46 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 47 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 48-1 | 09355-30001-600 Hose (3x7x600)
SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 8.71 |
Hose (3x7x600) | 1 | $ 8.71 | L:600->180 S/N 305081 Older | |
| 48-2 | 09343-05044 Hose (NLA)
SKU: 09343-05044 Weight: 0.100000 Brand: Price: $ 10.11 |
Hose (NLA) | 1 | $ 10.11 | S/N 405082 to 405549 | |
| 48-3 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->135 S/N 405550 Newer | |
| 49-1 | 09401-06101 Clamp
SKU: 09401-06101 Weight: 0.060000 Brand: Price: $ 2.04 |
Clamp | 2 | $ 2.04 | S/N 305081 Older | |
| 49-2 | 09401-10401 Fuel Hose Clamp
SKU: 09401-10401 Weight: 0.125000 Brand: Price: $ 1.44 |
Fuel Hose Clamp | 2 | $ 1.44 | S/N 405082 to 405549 | |
| 49-3 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 2 | $ 1.86 | S/N 405550 Newer | |
| 50 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 51 | 11130-94600 Zinc Anode
SKU: 11130-94600 Weight: 0.060000 Brand: Price: $ 9.01 |
Zinc Anode | 1 | $ 9.01 | ||
| 52 | 11315-94501 Crankcase Plug (NLA)
SKU: 11315-94501 Weight: 0.100000 Brand: Price: $ 6.98 |
Crankcase Plug (NLA) | 3 | $ 6.98 | 1985 | |
| 53 | 11316-94501 Crankcase Plug (NLA)
SKU: 11316-94501 Weight: 0.100000 Brand: Price: $ 5.35 |
Crankcase Plug (NLA) | 1 | $ 5.35 | 1985 | |
| 54 | 11400-94892 Engine Gasket Set
SKU: 11400-94892 Weight: 5.000000 Brand: Price: $ 434.47 |
Engine Gasket Set | 1 | $ 434.47 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
