Suzuki DT 75 Parts Listings 1988 to 1997

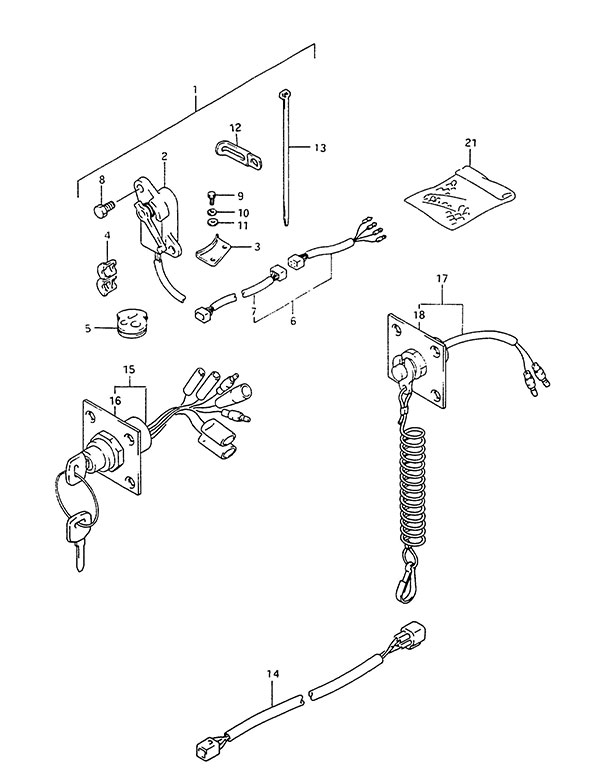

Fig. 38 - Opt: Switch Panel
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 34804-94701 Trim Sender Set (NLA)
SKU: 34804-94701 Weight: 2.000000 Brand: Price: $ 233.62 |
Trim Sender Set (NLA) | 1 | $ 233.62 | 1988 to 1994 | |
| 1-2 | 34804-94711 Trim Sender Set
SKU: 34804-94711 Weight: 1.000000 Brand: Price: $ 295.79 |
Trim Sender Set | 1 | $ 295.79 | 1995 to 1997 | |
| 2-1 | 34801-94700 Trim Sender (NLA)
SKU: 34801-94700 Weight: 0.100000 Brand: Price: $ 130.94 |
Trim Sender (NLA) | 1 | $ 130.94 | For Ref# 1-1 | |
| 2-2 | 34801-94710 Trim Sender
SKU: 34801-94710 Weight: 1.000000 Brand: Price: $ 284.37 |
Trim Sender | 1 | $ 284.37 | For Ref# 1-2 | |
| 3 | 34802-95301 PTT Attachment (NLA)
SKU: 34802-95301 Weight: 0.100000 Brand: Price: $ 7.85 |
PTT Attachment (NLA) | 1 | $ 7.85 | For Ref# 1-1 | |
| 4 | 34803-94500 Trim Sensor Grommet (NLA)
SKU: 34803-94500 Weight: 0.100000 Brand: Price: $ 1.22 |
Trim Sensor Grommet (NLA) | 1 | $ 1.22 | For Ref# 1-1 | |
| 5 | 36658-95600 Cable Grommet (NLA)
SKU: 36658-95600 Weight: 0.100000 Brand: Price: $ 5.94 |
Cable Grommet (NLA) | 1 | $ 5.94 | ||
| 6 | 36680-92E00 Trim Meter Wire Assembly (NLA)
SKU: 36680-92E00 Weight: 1.000000 Brand: Price: $ 75.02 |
Trim Meter Wire Assembly (NLA) | 1 | $ 75.02 | ||
| 7 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | ||
| 8 | 09100-06113 Bolt (6x16)
SKU: 09100-06113 Weight: 0.200000 Brand: Price: $ 1.93 |
Bolt (6x16) | 2 | $ 1.93 | ||
| 9 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 2 | $ 2.10 | For Ref# 1-1 | |
| 10 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | For Ref# 1-1 | |
| 11 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | For Ref# 1-1 | |
| 13-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 13-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 5 | $ 3.09 | For Ref# 1-1 | |
| 13-3 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | For Ref# 1-2 | |
| 14-1 | 36660-94400 Meter Extension Harness (NLA)
SKU: 36660-94400 Weight: 0.900000 Brand: Price: $ 87.36 |
Meter Extension Harness (NLA) | 1 | $ 87.36 | ||
| 14-2 | 36660-94480 Trim Wire Harness (6 ft) (NLA)
SKU: 36660-94480 Weight: 5.000000 Brand: Price: $ 47.95 |
Trim Wire Harness (6 ft) (NLA) | 1 | $ 47.95 | ||
| 15 | 37100-92E00 Ignition Switch Panel Assembly (NLA)
SKU: 37100-92E00 Weight: 0.100000 Brand: Price: $ 60.05 |
Ignition Switch Panel Assembly (NLA) | 1 | $ 60.05 | ||
| 16 | 37139-92E01 Single Ingition Switch Panel
SKU: 37139-92E01 Weight: 0.100000 Brand: Price: $ 45.23 |
Single Ingition Switch Panel | 1 | $ 45.23 | ||
| 17 | 37803-92E00 Emergency Stop Switch Assembly (NLA)
SKU: 37803-92E00 Weight: 0.260000 Brand: Price: $ 47.40 |
Emergency Stop Switch Assembly (NLA) | 1 | $ 47.40 | ||
| 18 | 37825-92E00 Emergency Switch Panel
SKU: 37825-92E00 Weight: 0.100000 Brand: Price: $ 42.14 |
Emergency Switch Panel | 1 | $ 42.14 | ||
| 21 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
