Suzuki DT 75 Parts Listings 1988 to 1997

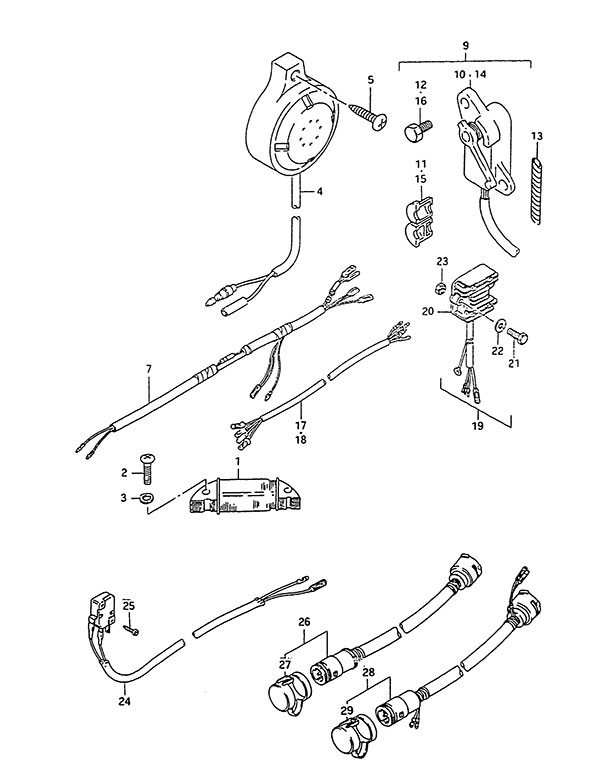

Fig. 36 - Opt: Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32120-95610 Battery Charge Coil (NLA)
SKU: 32120-95610 Weight: 0.100000 Brand: Price: $ 102.42 |
Battery Charge Coil (NLA) | 1 | $ 102.42 | 1988 to 1993 | |
| 1-2 | 32120-94730 Battery Charge Coil (NLA)
SKU: 32120-94730 Weight: 0.500000 Brand: Price: $ 135.28 |
Battery Charge Coil (NLA) | 1 | $ 135.28 | 1994 to 1997 | |
| 2 | 02112-06257 6X25CROSS SCREW
SKU: 02112-06257 Weight: 0.060000 Brand: Price: $ 1.78 |
6X25CROSS SCREW | 2 | $ 1.78 | ||
| 3 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 4 | 38500-92X50 Warning Buzzer
SKU: 38500-92X50 Weight: 0.260000 Brand: Price: $ 68.71 |
Warning Buzzer | 1 | $ 68.71 | ||
| 5 | 03142-06253 Screw (NLA)
SKU: 03142-06253 Weight: 0.100000 Brand: Price: $ 1.20 |
Screw (NLA) | 1 | $ 1.20 | ||
| 7 | 34109-94500 Extension Lead (NLA)
SKU: 34109-94500 Weight: 2.000000 Brand: Price: $ 30.86 |
Extension Lead (NLA) | 1 | $ 30.86 | ||
| 9 | 34804-94701 Trim Sender Set (NLA)
SKU: 34804-94701 Weight: 2.000000 Brand: Price: $ 233.62 |
Trim Sender Set (NLA) | 1 | $ 233.62 | ||
| 10 | 34801-95241 Trim Sender (NLA)
SKU: 34801-95241 Weight: 0.100000 Brand: Price: $ 158.58 |
Trim Sender (NLA) | 1 | $ 158.58 | ||
| 11 | 34803-94500 Trim Sensor Grommet (NLA)
SKU: 34803-94500 Weight: 0.100000 Brand: Price: $ 1.22 |
Trim Sensor Grommet (NLA) | 1 | $ 1.22 | ||
| 12 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 14 | 34804-94701 Trim Sender Set (NLA)
SKU: 34804-94701 Weight: 2.000000 Brand: Price: $ 233.62 |
Trim Sender Set (NLA) | 1 | $ 233.62 | ||
| 15 | 34803-94500 Trim Sensor Grommet (NLA)
SKU: 34803-94500 Weight: 0.100000 Brand: Price: $ 1.22 |
Trim Sensor Grommet (NLA) | 1 | $ 1.22 | ||
| 16 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 17 | 36680-94600 Sender Extension Wire (S) (NLA)
SKU: 36680-94600 Weight: 0.100000 Brand: Price: $ 26.10 |
Sender Extension Wire (S) (NLA) | 1 | $ 26.10 | ||
| 19 | 32801-95601 Rectifier & Regulator Set (NLA)
SKU: 32801-95601 Weight: 0.100000 Brand: Price: $ 104.49 |
Rectifier & Regulator Set (NLA) | 1 | $ 104.49 | ||
| 20 | 32800-94700 Voltage Regulator Assembly (NLA)
SKU: 32800-94700 Weight: 0.100000 Brand: Price: $ 121.22 |
Voltage Regulator Assembly (NLA) | 1 | $ 121.22 | ||
| 21 | 02162-06207 SCREW
SKU: 02162-06207 Weight: 0.060000 Brand: Price: $ 1.51 |
SCREW | 2 | $ 1.51 | ||
| 22 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | ||
| 23 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 2 | $ 1.85 | ||
| 24 | 37721-95500 Neutral Switch Assembly
SKU: 37721-95500 Weight: 0.200000 Brand: Price: $ 35.23 |
Neutral Switch Assembly | 2 | $ 35.23 | ||
| 25 | 02112-0316B SCREW
SKU: 02112-0316B Weight: 0.100000 Brand: Price: $ 2.37 |
SCREW | 4 | $ 2.37 | ||
| 26 | 36620-95302 Wiring Harness Extension (NLA)
SKU: 36620-95302 Weight: 1.280000 Brand: Price: $ 83.56 |
Wiring Harness Extension (NLA) | 1 | $ 83.56 | L:2000 | |
| 27 | 36631-94300 Cap
SKU: 36631-94300 Weight: 0.200000 Brand: Price: $ 4.20 |
Cap | 1 | $ 4.20 | ||
| 28 | 36620-87D20 Wiring Harness Extension (NLA)
SKU: 36620-87D20 Weight: 2.940000 Brand: Price: $ 115.51 |
Wiring Harness Extension (NLA) | 1 | $ 115.51 | L:5000 | |
| 29 | 36631-94300 Cap
SKU: 36631-94300 Weight: 0.200000 Brand: Price: $ 4.20 |
Cap | 1 | $ 4.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
