Suzuki DT 75 Parts Listings 1989 to 1994

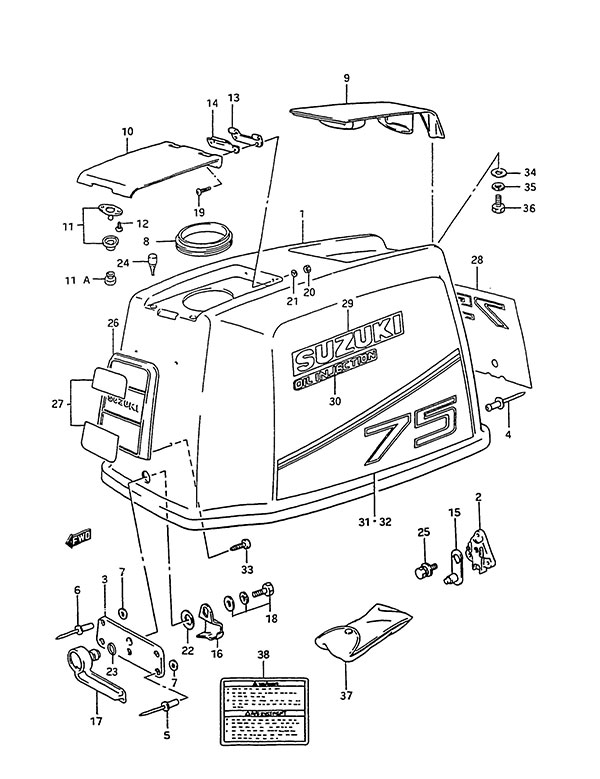

Fig. 29 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61411-95825-0ED Engine Cover (NLA)
SKU: 61411-95825-0ED Weight: 0.100000 Brand: Price: $ 449.75 |
Engine Cover (NLA) | 1 | $ 449.75 | ||
| 1-2 | 61411-95845-01T Engine Cover (NLA)
SKU: 61411-95845-01T Weight: 0.100000 Brand: Price: $ 449.75 |
Engine Cover (NLA) | 1 | $ 449.75 | ||
| 2 | 61621-96303 Fastener Bracket (NLA)
SKU: 61621-96303 Weight: 0.060000 Brand: Price: $ 15.26 |
Fastener Bracket (NLA) | 1 | $ 15.26 | ||
| 3 | 61651-94701 Front Hook Holder (NLA)
SKU: 61651-94701 Weight: 0.100000 Brand: Price: $ 12.91 |
Front Hook Holder (NLA) | 1 | $ 12.91 | ||
| 4 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 3 | $ 2.82 | ||
| 5 | 09229-04026 Rivet (NLA)
SKU: 09229-04026 Weight: 0.100000 Brand: Price: $ 0.98 |
Rivet (NLA) | 3 | $ 0.98 | ||
| 6 | 09229-04027 Rivet (NLA)
SKU: 09229-04027 Weight: 0.100000 Brand: Price: $ 1.19 |
Rivet (NLA) | 2 | $ 1.19 | ||
| 7 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 5 | $ 1.85 | ||
| 8 | 61414-95501 Oil Filler Gasket (NLA)
SKU: 61414-95501 Weight: 0.060000 Brand: Price: $ 6.45 |
Oil Filler Gasket (NLA) | 1 | $ 6.45 | ||
| 9 | 61431-95501-0ED Tilt Up Handle (NLA)
SKU: 61431-95501-0ED Weight: 1.500000 Brand: Price: $ 64.74 |
Tilt Up Handle (NLA) | 1 | $ 64.74 | ||
| 10 | 61481-95522-0ED Oil Tank Filler Lid
SKU: 61481-95522-0ED Weight: 0.200000 Brand: Price: $ 37.83 |
Oil Tank Filler Lid | 1 | $ 37.83 | ||
| 11 | 61670-94600 Oil Lid Striker Assy (NLA)
SKU: 61670-94600 Weight: 0.060000 Brand: Price: $ 3.87 |
Oil Lid Striker Assy (NLA) | 1 | $ 3.87 | ||
| 11A | 09250-12012 Cap (NLA)
SKU: 09250-12012 Weight: 0.060000 Brand: Price: $ 5.52 |
Cap (NLA) | 1 | $ 5.52 | ||
| 12 | 03241-0410A SCREW
SKU: 03241-0410A Weight: 0.060000 Brand: Price: $ 1.32 |
SCREW | 2 | $ 1.32 | ||
| 13 | 61482-94510 Oil Filler Lid Hinge
SKU: 61482-94510 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 14 | 61485-95500 Oil Filler Lid Spring
SKU: 61485-95500 Weight: 0.060000 Brand: Price: $ 4.84 |
Oil Filler Lid Spring | 1 | $ 4.84 | ||
| 15 | 61610-94420 Fastener
SKU: 61610-94420 Weight: 0.080000 Brand: Price: $ 16.13 |
Fastener | 1 | $ 16.13 | ||
| 16 | 61641-94700 Front Hook (NLA)
SKU: 61641-94700 Weight: 0.100000 Brand: Price: $ 5.55 |
Front Hook (NLA) | 1 | $ 5.55 | ||
| 17 | 61645-94701-0ED Front Hook Lever (NLA)
SKU: 61645-94701-0ED Weight: 0.120000 Brand: Price: $ 25.71 |
Front Hook Lever (NLA) | 1 | $ 25.71 | ||
| 18 | 09118-06095 Bolt (6x12)
SKU: 09118-06095 Weight: 0.200000 Brand: Price: $ 4.31 |
Bolt (6x12) | 1 | $ 4.31 | ||
| 19 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 20 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 21 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
| 22 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 1 | $ 3.38 | ||
| 23 | 09280-18004 O-Ring
SKU: 09280-18004 Weight: 0.100000 Brand: Price: $ 5.26 |
O-Ring | 1 | $ 5.26 | ||
| 24 | 09321-05019 Cushion
SKU: 09321-05019 Weight: 0.060000 Brand: Price: $ 2.74 |
Cushion | 2 | $ 2.74 | ||
| 25 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 26 | 61421-94421-019 Front Emblem
SKU: 61421-94421-019 Weight: 0.200000 Brand: Price: $ 45.77 |
Front Emblem | 1 | $ 45.77 | ||
| 27 | 61422-95570-12R Front Emblem Mark (NLA)
SKU: 61422-95570-12R Weight: 0.060000 Brand: Price: $ 6.24 |
Front Emblem Mark (NLA) | 1 | $ 6.24 | For Gray | |
| 28-1 | 61435-95690-70G Rear Emblem Mark (NLA)
SKU: 61435-95690-70G Weight: 0.100000 Brand: Price: $ 11.80 |
Rear Emblem Mark (NLA) | 1 | $ 11.80 | For Gray | |
| 28-2 | 61435-95690-8EH Rear Emblem Mark (NLA)
SKU: 61435-95690-8EH Weight: 0.100000 Brand: Price: $ 12.75 |
Rear Emblem Mark (NLA) | 1 | $ 12.75 | For White | |
| 29-1 | 61441-95560-764 Suzuki Mark
SKU: 61441-95560-764 Weight: 0.060000 Brand: Price: $ 12.16 |
Suzuki Mark | 2 | $ 12.16 | For Gray | |
| 29-2 | 68112-43400-019 Suzuki Emblem
SKU: 68112-43400-019 Weight: 0.200000 Brand: Price: $ 12.45 |
Suzuki Emblem | 2 | $ 12.45 | For White | |
| 30-1 | 61442-94600-764 Oil Injection Mark
SKU: 61442-94600-764 Weight: 0.060000 Brand: Price: $ 4.06 |
Oil Injection Mark | 2 | $ 4.06 | For Gray | |
| 30-2 | 61442-94600-019 Oil Injection Mark (NLA)
SKU: 61442-94600-019 Weight: 0.062500 Brand: Price: $ 4.27 |
Oil Injection Mark (NLA) | 1 | $ 4.27 | For White | |
| 31 | 61443-95660-70G Starboard Engine Cover Decal (NLA)
SKU: 61443-95660-70G Weight: 0.060000 Brand: Price: $ 25.70 |
Starboard Engine Cover Decal (NLA) | 1 | $ 25.70 | For Gray | |
| 32-1 | 61453-95650-70G Port Engine Cover Decal (NLA)
SKU: 61453-95650-70G Weight: 0.100000 Brand: Price: $ 27.23 |
Port Engine Cover Decal (NLA) | 1 | $ 27.23 | For Gray | |
| 32-2 | 61453-95650-8EH Port Engine Cover Decal (NLA)
SKU: 61453-95650-8EH Weight: 0.100000 Brand: Price: $ 26.04 |
Port Engine Cover Decal (NLA) | 1 | $ 26.04 | For White | |
| 33 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 4 | $ 1.27 | ||
| 34 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 4 | $ 1.97 | ||
| 35 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 4 | $ 1.49 | ||
| 36 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 37 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 | ||
| 38 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
