Suzuki DT 75 Parts Listings 1988 to 1997

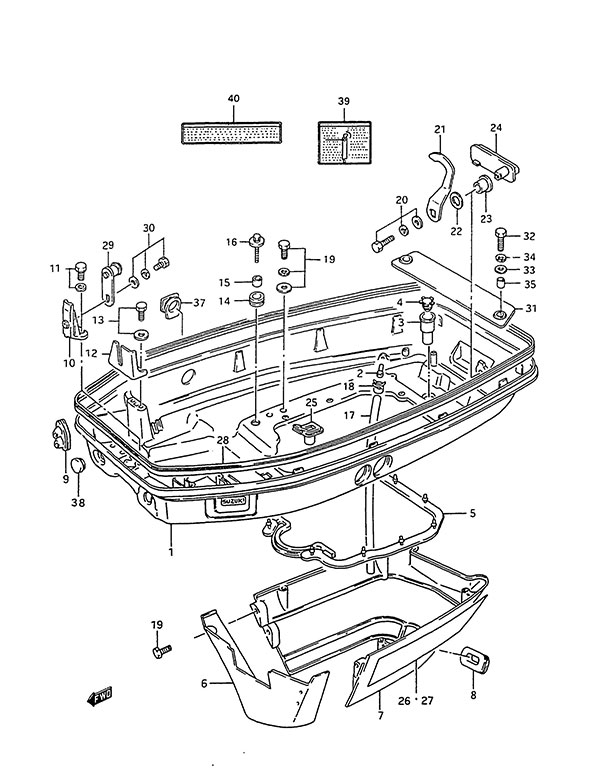

Fig. 27 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61110-96X55-0ED Lower Engine Cover (NLA)
SKU: 61110-96X55-0ED Weight: 50.000000 Brand: Price: $ 327.18 |
Lower Engine Cover (NLA) | 1 | $ 327.18 | ||
| 2 | 61155-94500 Water Inspection Tube
SKU: 61155-94500 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Inspection Tube | 1 | $ 3.47 | ||
| 3 | 61139-94511 Drain Tube
SKU: 61139-94511 Weight: 0.200000 Brand: Price: $ 7.89 |
Drain Tube | 1 | $ 7.89 | ||
| 4 | 13979-37400 Drain Tube Retainer (NLA)
SKU: 13979-37400 Weight: 0.062500 Brand: Price: $ 8.62 |
Drain Tube Retainer (NLA) | 1 | $ 8.62 | 1988 to 1994 | |
| 5 | 61113-95205 Under Cover Lower Seal
SKU: 61113-95205 Weight: 0.200000 Brand: Price: $ 22.97 |
Under Cover Lower Seal | 1 | $ 22.97 | ||
| 6 | 61131-95201-0ED Lower Front Under Cover (NLA)
SKU: 61131-95201-0ED Weight: 1.000000 Brand: Price: $ 57.92 |
Lower Front Under Cover (NLA) | 1 | $ 57.92 | ||
| 7 | 61141-95204-0ED Lower Rear Under Cover (NLA)
SKU: 61141-95204-0ED Weight: 50.000000 Brand: Price: $ 84.86 |
Lower Rear Under Cover (NLA) | 1 | $ 84.86 | ||
| 8 | 61142-95201 Under Cover Lower Grommet (NLA)
SKU: 61142-95201 Weight: 0.100000 Brand: Price: $ 1.96 |
Under Cover Lower Grommet (NLA) | 1 | $ 1.96 | ||
| 9 | 67331-95210 Grommet
SKU: 67331-95210 Weight: 0.060000 Brand: Price: $ 4.76 |
Grommet | 1 | $ 4.76 | ||
| 10 | 61116-94702 Engine Cover Bracket (NLA)
SKU: 61116-94702 Weight: 0.140000 Brand: Price: $ 25.32 |
Engine Cover Bracket (NLA) | 1 | $ 25.32 | ||
| 11-1 | 09117-06046 Bolt (6x20) (NLA)
SKU: 09117-06046 Weight: 0.100000 Brand: Price: $ 1.40 |
Bolt (6x20) (NLA) | 2 | $ 1.40 | 1988 to 1996 | |
| 11-2 | 09116-06204 Bolt (6x20)
SKU: 09116-06204 Weight: 0.060000 Brand: Price: $ 3.10 |
Bolt (6x20) | 1 | $ 3.10 | 1997 | |
| 12 | 67271-95213 Remocon Holder (NLA)
SKU: 67271-95213 Weight: 0.250000 Brand: Price: $ 18.65 |
Remocon Holder (NLA) | 1 | $ 18.65 | ||
| 13 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 14 | 09320-10502 Cushion
SKU: 09320-10502 Weight: 0.060000 Brand: Price: $ 2.75 |
Cushion | 4 | $ 2.75 | ||
| 15 | 09180-06289 Spacer
SKU: 09180-06289 Weight: 0.100000 Brand: Price: $ 2.56 |
Spacer | 4 | $ 2.56 | ||
| 16 | 09118-06093 Bolt (6x25) (NLA)
SKU: 09118-06093 Weight: 0.200000 Brand: Price: $ 2.81 |
Bolt (6x25) (NLA) | 4 | $ 2.81 | ||
| 17 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->100 | |
| 18 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 2 | $ 1.78 | ||
| 19 | 09138-06037 Bolt (6x20)
SKU: 09138-06037 Weight: 0.060000 Brand: Price: $ 3.60 |
Bolt (6x20) | 6 | $ 3.60 | ||
| 20 | 09118-06095 Bolt (6x12)
SKU: 09118-06095 Weight: 0.200000 Brand: Price: $ 4.31 |
Bolt (6x12) | 1 | $ 4.31 | ||
| 21 | 61631-95310 Lower Engine Cover Hook
SKU: 61631-95310 Weight: 0.100000 Brand: Price: $ 11.25 |
Lower Engine Cover Hook | 1 | $ 11.25 | ||
| 22 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 1 | $ 3.38 | ||
| 23 | 09306-13007 Bushing
SKU: 09306-13007 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 1 | $ 2.81 | ||
| 24 | 61645-90J01-0ED Front Hook Lever
SKU: 61645-90J01-0ED Weight: 0.200000 Brand: Price: $ 48.90 |
Front Hook Lever | 1 | $ 48.90 | ||
| 25 | 23131-95501 Clutch Rod Boot
SKU: 23131-95501 Weight: 0.060000 Brand: Price: $ 5.34 |
Clutch Rod Boot | 1 | $ 5.34 | ||
| 26-1 | 61240-95900-70G Lower Cover Decal Set (NLA)
SKU: 61240-95900-70G Weight: 0.100000 Brand: Price: $ 28.40 |
Lower Cover Decal Set (NLA) | 1 | $ 28.40 | For Gray Silver | |
| 26-2 | 61240-95900-8EH Lower Cover Decal Set (NLA)
SKU: 61240-95900-8EH Weight: 0.100000 Brand: Price: $ 15.25 |
Lower Cover Decal Set (NLA) | 1 | $ 15.25 | For White 1988 to 1990 | |
| 27-1 | 61231-95570-26G Port Lower Cover Decal (NLA)
SKU: 61231-95570-26G Weight: 0.100000 Brand: Price: $ 13.16 |
Port Lower Cover Decal (NLA) | 1 | $ 13.16 | For Silver 1988 | |
| 27-2 | 61231-95570-26H Port Lower Cover Decal (NLA)
SKU: 61231-95570-26H Weight: 0.100000 Brand: Price: $ 12.15 |
Port Lower Cover Decal (NLA) | 1 | $ 12.15 | For White 1988 | |
| 28 | 61112-95208 Under Cover Upper Seal (NLA)
SKU: 61112-95208 Weight: 0.100000 Brand: Price: $ 51.48 |
Under Cover Upper Seal (NLA) | 1 | $ 51.48 | ||
| 29 | 61610-95514 Fastener
SKU: 61610-95514 Weight: 0.060000 Brand: Price: $ 13.79 |
Fastener | 1 | $ 13.79 | ||
| 30 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 31 | 61138-95600 Water Cover (NLA)
SKU: 61138-95600 Weight: 0.100000 Brand: Price: $ 7.01 |
Water Cover (NLA) | 1 | $ 7.01 | ||
| 32-1 | 09138-06046 Bolt (6x25) (NLA)
SKU: 09138-06046 Weight: 0.100000 Brand: Price: $ 2.29 |
Bolt (6x25) (NLA) | 2 | $ 2.29 | 1988 to 1995 | |
| 32-2 | 09128-06052 Bolt (6x26) (NLA)
SKU: 09128-06052 Weight: 0.200000 Brand: Price: $ 1.56 |
Bolt (6x26) (NLA) | 2 | $ 1.56 | 1996 to 1997 | |
| 33 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 2 | $ 1.44 | 1988 | |
| 34 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | 1988 | |
| 35 | 09180-06200 Grommet (NLA)
SKU: 09180-06200 Weight: 0.100000 Brand: Price: $ 3.52 |
Grommet (NLA) | 2 | $ 3.52 | ||
| 37 | 61124-95200 Lower Cover Grommet
SKU: 61124-95200 Weight: 0.060000 Brand: Price: $ 3.66 |
Lower Cover Grommet | 1 | $ 3.66 | ||
| 38 | 09250-21003 Plug
SKU: 09250-21003 Weight: 0.060000 Brand: Price: $ 4.39 |
Plug | 1 | $ 4.39 | ||
| 39 | 41336-95E01 Tilt Lock Mark (NLA)
SKU: 41336-95E01 Weight: 0.100000 Brand: Price: $ 3.48 |
Tilt Lock Mark (NLA) | 1 | $ 3.48 | 1995 | |
| 40 | 48171-95E00 PTT Mark (NLA)
SKU: 48171-95E00 Weight: 0.100000 Brand: Price: $ 3.25 |
PTT Mark (NLA) | 1 | $ 3.25 | 1995 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
