Suzuki DT 75 Parts Listings 1988 to 1997

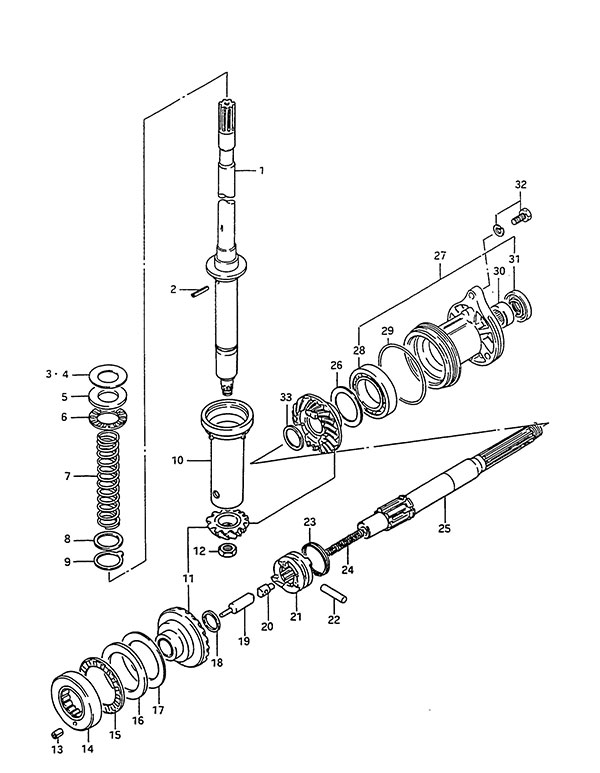

Fig. 26 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 57110-95508 Drive Shaft (L) (NLA)
SKU: 57110-95508 Weight: 6.000000 Brand: Price: $ 344.94 |
Drive Shaft (L) (NLA) | 1 | $ 344.94 | ||
| 2 | 09205-03028 Pin
SKU: 09205-03028 Weight: 0.125000 Brand: Price: $ 1.31 |
Pin | 1 | $ 1.31 | ||
| 3-1 | 08221-32523 Shim (0.10) (NLA)
SKU: 08221-32523 Weight: 0.060000 Brand: Price: $ 2.34 |
Shim (0.10) (NLA) | 1 | $ 2.34 | ||
| 3-2 | 08221-32524 Shim (0.20) (NLA)
SKU: 08221-32524 Weight: 0.060000 Brand: Price: $ 2.34 |
Shim (0.20) (NLA) | 1 | $ 2.34 | ||
| 3-3 | 09181-32280 Shim (0.03) (NLA)
SKU: 09181-32280 Weight: 0.100000 Brand: Price: $ 3.67 |
Shim (0.03) (NLA) | 1 | $ 3.67 | ||
| 4-1 | 09181-30302 Shim (0.80) (NLA)
SKU: 09181-30302 Weight: 0.060000 Brand: Price: $ 3.19 |
Shim (0.80) (NLA) | 1 | $ 3.19 | ||
| 4-2 | 09181-30304 Shim (0.90) (NLA)
SKU: 09181-30304 Weight: 0.060000 Brand: Price: $ 2.47 |
Shim (0.90) (NLA) | 1 | $ 2.47 | ||
| 4-3 | 09181-30306 Shim (1.00) (NLA)
SKU: 09181-30306 Weight: 0.060000 Brand: Price: $ 3.36 |
Shim (1.00) (NLA) | 1 | $ 3.36 | ||
| 4-4 | 09181-30312 Shim (1.10) (NLA)
SKU: 09181-30312 Weight: 0.060000 Brand: Price: $ 3.74 |
Shim (1.10) (NLA) | 1 | $ 3.74 | ||
| 4-5 | 09181-30316 Shim (1.20)
SKU: 09181-30316 Weight: 0.060000 Brand: Price: $ 3.95 |
Shim (1.20) | 1 | $ 3.95 | ||
| 4-6 | 09181-30321 Shim (1.30)
SKU: 09181-30321 Weight: 0.060000 Brand: Price: $ 5.01 |
Shim (1.30) | 1 | $ 5.01 | ||
| 5 | 09160-32005 Thrust Washer (4.25)
SKU: 09160-32005 Weight: 0.100000 Brand: Price: $ 45.06 |
Thrust Washer (4.25) | 1 | $ 45.06 | ||
| 6 | 09263-30046 Bearing (30x52x8)
SKU: 09263-30046 Weight: 0.100000 Brand: Price: $ 111.37 |
Bearing (30x52x8) | 1 | $ 111.37 | ||
| 7 | 09440-30003 Spring (NLA)
SKU: 09440-30003 Weight: 0.200000 Brand: Price: $ 4.34 |
Spring (NLA) | 1 | $ 4.34 | ||
| 8 | 09160-30027 Washer (NLA)
SKU: 09160-30027 Weight: 0.060000 Brand: Price: $ 3.18 |
Washer (NLA) | 1 | $ 3.18 | ||
| 9 | 09167-31001 Thrust Washer (NLA)
SKU: 09167-31001 Weight: 0.060000 Brand: Price: $ 3.34 |
Thrust Washer (NLA) | 1 | $ 3.34 | ||
| 10 | 57133-95501 Drive Shaft Spring Collar (NLA)
SKU: 57133-95501 Weight: 0.250000 Brand: Price: $ 12.39 |
Drive Shaft Spring Collar (NLA) | 1 | $ 12.39 | ||
| 11-1 | 57301-95841 Pinion & Gear Set (NLA)
SKU: 57301-95841 Weight: 4.380000 Brand: Price: $ 482.72 |
Pinion & Gear Set (NLA) | 1 | $ 482.72 | 1988 to 1994 | |
| 11-2 | 57301-95860 Pinion & Gear Set (NLA)
SKU: 57301-95860 Weight: 4.000000 Brand: Price: $ 506.31 |
Pinion & Gear Set (NLA) | 1 | $ 506.31 | 1995 to 1997 | |
| 12 | 09140-14021 Nut
SKU: 09140-14021 Weight: 0.060000 Brand: Price: $ 3.04 |
Nut | 1 | $ 3.04 | ||
| 13 | 09205-05006 Pin (NLA)
SKU: 09205-05006 Weight: 0.060000 Brand: Price: $ 1.06 |
Pin (NLA) | 1 | $ 1.06 | 1988 to 1994 | |
| 14-1 | 09269-45001 RC 45x62x17 Bearing (NLA)
SKU: 09269-45001 Weight: 0.100000 Brand: Price: $ 121.92 |
RC 45x62x17 Bearing (NLA) | 1 | $ 121.92 | 1988 to 1994 | |
| 14-2 | 09265-45003 RT45x85x21Bearing
SKU: 09265-45003 Weight: 1.200000 Brand: Price: $ 101.79 |
RT45x85x21Bearing | 1 | $ 101.79 | 1995 to 1997 | |
| 15 | 09269-60001 Bearing (60x85x3.0)
SKU: 09269-60001 Weight: 0.200000 Brand: Price: $ 39.31 |
Bearing (60x85x3.0) | 1 | $ 39.31 | 1988 to 1994 | |
| 16 | 09160-60002 Thrust Washer (NLA)
SKU: 09160-60002 Weight: 0.100000 Brand: Price: $ 42.07 |
Thrust Washer (NLA) | 1 | $ 42.07 | 1988 to 1994 | |
| 17-1 | 09160-60003 Washer (1.00)
SKU: 09160-60003 Weight: 0.100000 Brand: Price: $ 16.60 |
Washer (1.00) | 1 | $ 16.60 | 1988 to 1994 | |
| 17-2 | 09160-60004 Washer (1.10)
SKU: 09160-60004 Weight: 0.100000 Brand: Price: $ 21.36 |
Washer (1.10) | 1 | $ 21.36 | 1988 to 1994 | |
| 17-3 | 09160-60005 Washer (1.20)
SKU: 09160-60005 Weight: 0.100000 Brand: Price: $ 16.60 |
Washer (1.20) | 1 | $ 16.60 | 1988 to 1994 | |
| 17-4 | 09160-60006 Washer (1.30)
SKU: 09160-60006 Weight: 0.080000 Brand: Price: $ 22.52 |
Washer (1.30) | 1 | $ 22.52 | 1988 to 1994 | |
| 17-5 | 09160-60007 Washer (1.40)
SKU: 09160-60007 Weight: 0.100000 Brand: Price: $ 21.36 |
Washer (1.40) | 1 | $ 21.36 | 1988 to 1994 | |
| 17-6 | 09160-60008 Washer (0.80) (NLA)
SKU: 09160-60008 Weight: 0.100000 Brand: Price: $ 11.76 |
Washer (0.80) (NLA) | 1 | $ 11.76 | 1988 to 1994 | |
| 17-7 | 09160-60009 Washer (0.90)
SKU: 09160-60009 Weight: 0.100000 Brand: Price: $ 15.64 |
Washer (0.90) | 1 | $ 15.64 | 1988 to 1994 | |
| 17-8 | 09181-45003 Shim (1.00)
SKU: 09181-45003 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.00) | 1 | $ 3.57 | 1995 to 1997 | |
| 17-9 | 09181-45004 Shim (1.10)
SKU: 09181-45004 Weight: 0.060000 Brand: Price: $ 4.99 |
Shim (1.10) | 1 | $ 4.99 | 1995 to 1997 | |
| 17-10 | 09181-45005 Shim (1.20)
SKU: 09181-45005 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.20) | 1 | $ 3.57 | 1995 to 1997 | |
| 17-11 | 09181-45006 Shim (1.30)
SKU: 09181-45006 Weight: 0.060000 Brand: Price: $ 3.64 |
Shim (1.30) | 1 | $ 3.64 | 1995 to 1997 | |
| 17-12 | 09181-45007 Shim (1.40)
SKU: 09181-45007 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.40) | 1 | $ 3.57 | 1995 to 1997 | |
| 17-13 | 09181-45008 Shim (1.50)
SKU: 09181-45008 Weight: 0.060000 Brand: Price: $ 3.64 |
Shim (1.50) | 1 | $ 3.64 | 1995 to 1997 | |
| 17-14 | 09181-45009 Shim (1.60)
SKU: 09181-45009 Weight: 0.060000 Brand: Price: $ 3.57 |
Shim (1.60) | 1 | $ 3.57 | 1995 to 1997 | |
| 18 | 09181-25018 Thrust Washer (NLA)
SKU: 09181-25018 Weight: 0.200000 Brand: Price: $ 4.34 |
Thrust Washer (NLA) | 1 | $ 4.34 | ||
| 19 | 57631-95542 Push Rod
SKU: 57631-95542 Weight: 0.100000 Brand: Price: $ 26.77 |
Push Rod | 1 | $ 26.77 | ||
| 20 | 57632-95502 Push Pin
SKU: 57632-95502 Weight: 0.060000 Brand: Price: $ 6.16 |
Push Pin | 1 | $ 6.16 | ||
| 21 | 57621-95511 Clutch Dog Shifter (NLA)
SKU: 57621-95511 Weight: 0.580000 Brand: Price: $ 91.40 |
Clutch Dog Shifter (NLA) | 1 | $ 91.40 | ||
| 22 | 09202-06028 Clutch Dog Shifter Pin
SKU: 09202-06028 Weight: 0.060000 Brand: Price: $ 6.21 |
Clutch Dog Shifter Pin | 1 | $ 6.21 | ||
| 23 | 09440-48003 Clutch Dog Shifter Spring
SKU: 09440-48003 Weight: 0.060000 Brand: Price: $ 4.96 |
Clutch Dog Shifter Spring | 1 | $ 4.96 | ||
| 24 | 09440-11020 Spring
SKU: 09440-11020 Weight: 0.060000 Brand: Price: $ 2.14 |
Spring | 1 | $ 2.14 | ||
| 25-1 | 57610-95508 Propeller Shaft Assembly (NLA)
SKU: 57610-95508 Weight: 2.840000 Brand: Price: $ 261.35 |
Propeller Shaft Assembly (NLA) | 1 | $ 261.35 | 1988 to 1991 | |
| 25-2 | 57610-95510 Propeller Shaft Assembly
SKU: 57610-95510 Weight: 2.800000 Brand: Price: $ 286.59 |
Propeller Shaft Assembly | 1 | $ 286.59 | 1992 to 1997 | |
| 26-1 | 09181-45001 Shim (0.50)
SKU: 09181-45001 Weight: 0.060000 Brand: Price: $ 3.13 |
Shim (0.50) | 1 | $ 3.13 | ||
| 26-2 | 09181-45002 Shim (0.20) (NLA)
SKU: 09181-45002 Weight: 0.060000 Brand: Price: $ 2.39 |
Shim (0.20) (NLA) | 1 | $ 2.39 | ||
| 27 | 56120-95505-0ED Propeller Shaft Bearing Housing (NLA)
SKU: 56120-95505-0ED Weight: 2.580000 Brand: Price: $ 339.50 |
Propeller Shaft Bearing Housing (NLA) | 1 | $ 339.50 | ||
| 28 | 08113-60097 B1 45X75X16 BEA
SKU: 08113-60097 Weight: 0.580000 Brand: Price: $ 56.55 |
B1 45X75X16 BEA | 1 | $ 56.55 | ||
| 29 | 09280-85001 O-Ring
SKU: 09280-85001 Weight: 0.060000 Brand: Price: $ 3.23 |
O-Ring | 1 | $ 3.23 | ||
| 30 | 09263-28011 RN 28x35x16 Bearing (NLA)
SKU: 09263-28011 Weight: 0.080000 Brand: Price: $ 22.80 |
RN 28x35x16 Bearing (NLA) | 2 | $ 22.80 | ||
| 31 | 09282-28002 Oil Seal
SKU: 09282-28002 Weight: 0.060000 Brand: Price: $ 9.07 |
Oil Seal | 2 | $ 9.07 | ||
| 32 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 2 | $ 5.05 | ||
| 33-1 | 09181-28015 Shim (0.90)
SKU: 09181-28015 Weight: 0.060000 Brand: Price: $ 4.05 |
Shim (0.90) | 2 | $ 4.05 | ||
| 33-2 | 09181-28016 Shim (1.00)
SKU: 09181-28016 Weight: 0.060000 Brand: Price: $ 3.82 |
Shim (1.00) | 2 | $ 3.82 | ||
| 33-3 | 09181-28017 Shim (1.20)
SKU: 09181-28017 Weight: 0.060000 Brand: Price: $ 4.11 |
Shim (1.20) | 2 | $ 4.11 | ||
| 33-4 | 09181-28018 Shim (1.30)
SKU: 09181-28018 Weight: 0.060000 Brand: Price: $ 4.11 |
Shim (1.30) | 2 | $ 4.11 | ||
| 33-5 | 09181-28019 Shim (1.40)
SKU: 09181-28019 Weight: 0.060000 Brand: Price: $ 3.89 |
Shim (1.40) | 2 | $ 3.89 | ||
| 33-6 | 09181-28020 Shim (1.60)
SKU: 09181-28020 Weight: 0.060000 Brand: Price: $ 4.03 |
Shim (1.60) | 2 | $ 4.03 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
