Suzuki DT 75 Parts Listings 1988 to 1997

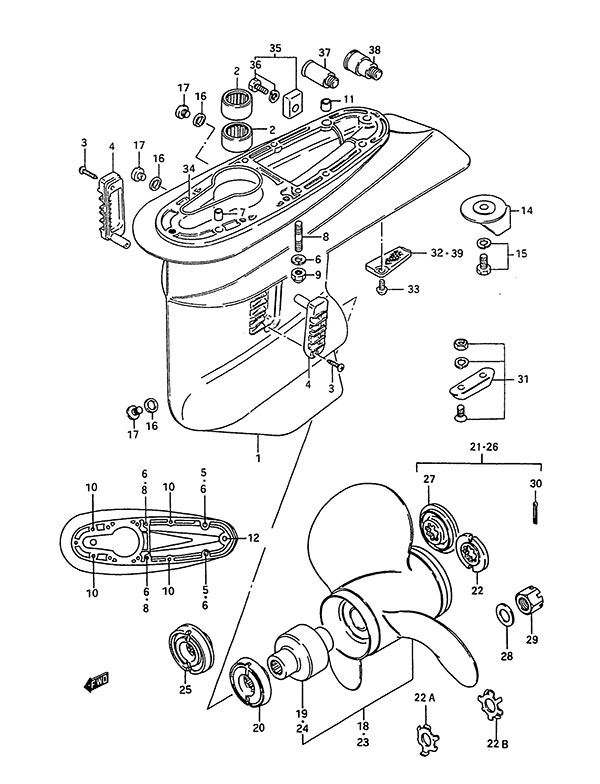

Fig. 25 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-95561-0ED Gear Case Housing (NLA)
SKU: 55100-95561-0ED Weight: 20.000000 Brand: Price: $ 960.58 |
Gear Case Housing (NLA) | 1 | $ 960.58 | ||
| 2 | 09263-29004 RN 29x38x20 Bearing
SKU: 09263-29004 Weight: 0.120000 Brand: Price: $ 34.76 |
RN 29x38x20 Bearing | 2 | $ 34.76 | ||
| 3 | 03142-04259 SCREW
SKU: 03142-04259 Weight: 0.060000 Brand: Price: $ 2.20 |
SCREW | 2 | $ 2.20 | ||
| 4 | 17631-94600 Water Filter
SKU: 17631-94600 Weight: 0.060000 Brand: Price: $ 13.29 |
Water Filter | 2 | $ 13.29 | ||
| 5 | 09117-08038 Bolt (8x45)
SKU: 09117-08038 Weight: 0.060000 Brand: Price: $ 5.64 |
Bolt (8x45) | 2 | $ 5.64 | ||
| 6 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 7 | 09206-11016 Pin (11x12) (NLA)
SKU: 09206-11016 Weight: 0.060000 Brand: Price: $ 3.33 |
Pin (11x12) (NLA) | 1 | $ 3.33 | ||
| 8 | 09108-08154 Stud (NLA)
SKU: 09108-08154 Weight: 0.060000 Brand: Price: $ 6.44 |
Stud (NLA) | 2 | $ 6.44 | ||
| 9 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 10 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 4 | $ 15.95 | ||
| 11 | 09206-13017 Pin (13x20)
SKU: 09206-13017 Weight: 0.125000 Brand: Price: $ 7.73 |
Pin (13x20) | 1 | $ 7.73 | ||
| 12 | 09117-10024-XC0 Bolt (10x100) (NLA)
SKU: 09117-10024-XC0 Weight: 0.150000 Brand: Price: $ 18.02 |
Bolt (10x100) (NLA) | 1 | $ 18.02 | ||
| 14 | 55125-95500 Trim Tab Zinc Anode
SKU: 55125-95500 Weight: 0.400000 Brand: Price: $ 19.74 |
Trim Tab Zinc Anode | 1 | $ 19.74 | ||
| 15 | 09117-08109 Bolt (8x16)
SKU: 09117-08109 Weight: 0.060000 Brand: Price: $ 3.09 |
Bolt (8x16) | 1 | $ 3.09 | ||
| 16 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 3 | $ 1.60 | ||
| 17 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 3 | $ 6.59 | ||
| 18-1 | 58100-95500-019 U1500 Propeller 3x13-1/2x15 (NLA)
SKU: 58100-95500-019 Weight: 0.100000 Brand: Price: $ 176.43 |
U1500 Propeller 3x13-1/2x15 (NLA) | 1 | $ 176.43 | ||
| 18-2 | 58100-95511-019 U1700 Propeller 3x13-1/4x17 (NLA)
SKU: 58100-95511-019 Weight: 0.100000 Brand: Price: $ 159.78 |
U1700 Propeller 3x13-1/4x17 (NLA) | 1 | $ 159.78 | ||
| 18-3 | 58100-95521-019 U1900 Propeller 3x13x19 (NLA)
SKU: 58100-95521-019 Weight: 0.100000 Brand: Price: $ 159.78 |
U1900 Propeller 3x13x19 (NLA) | 1 | $ 159.78 | ||
| 18-4 | 58100-95530-019 U2100 Propeller 3x13x21 (NLA)
SKU: 58100-95530-019 Weight: 0.100000 Brand: Price: $ 175.60 |
U2100 Propeller 3x13x21 (NLA) | 1 | $ 175.60 | ||
| 18-5 | 58100-95540-019 U1300 Propeller 3x13-3/4x13 (NLA)
SKU: 58100-95540-019 Weight: 5.000000 Brand: Price: $ 176.43 |
U1300 Propeller 3x13-3/4x13 (NLA) | 1 | $ 176.43 | ||
| 18-6 | 58100-95550-019 U1800 Propeller 3x13x18 (NLA)
SKU: 58100-95550-019 Weight: 0.100000 Brand: Price: $ 159.78 |
U1800 Propeller 3x13x18 (NLA) | 1 | $ 159.78 | ||
| 19 | 58120-95500 Type U Propeller Bushing
SKU: 58120-95500 Weight: 1.000000 Brand: Price: $ 64.81 |
Type U Propeller Bushing | 1 | $ 64.81 | ||
| 20-1 | 57635-95503 Propeller Bushing Stopper
SKU: 57635-95503 Weight: 0.660000 Brand: Price: $ 80.98 |
Propeller Bushing Stopper | 1 | $ 80.98 | Type: U 1988 to 1991 | |
| 20-2 | 57635-95510 Propeller Bushing Stopper
SKU: 57635-95510 Weight: 0.680000 Brand: Price: $ 96.27 |
Propeller Bushing Stopper | 1 | $ 96.27 | Type: U 1992 to 1997 | |
| 21 | 57630-95500 Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 U-Style
SKU: 57630-95500 Weight: 0.360000 Brand: Price: $ 26.29 |
Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 U-Style | 1 | $ 26.29 | Opt: Type U | |
| 22 | 57633-95501 Propeller Nut Spacer
SKU: 57633-95501 Weight: 0.200000 Brand: Price: $ 35.83 |
Propeller Nut Spacer | 1 | $ 35.83 | Type: U | |
| 22A | 57635-95300 Propeller Nut Washer
SKU: 57635-95300 Weight: 0.060000 Brand: Price: $ 3.85 |
Propeller Nut Washer | 1 | $ 3.85 | Type: U 1988 to 1992 | |
| 22B | 57634-94500 Propeller Nut Washer (NLA)
SKU: 57634-94500 Weight: 0.060000 Brand: Price: $ 4.09 |
Propeller Nut Washer (NLA) | 1 | $ 4.09 | Type: V 1988 to 1992 | |
| 23-1 | 58100-94512-019 V1700 Propeller 3x13-3/4x17
SKU: 58100-94512-019 Weight: 10.000000 Brand: Price: $ 242.32 |
V1700 Propeller 3x13-3/4x17 | 1 | $ 242.32 | ||
| 23-2 | 58100-94522-019 V1900 Propeller 3x13x19
SKU: 58100-94522-019 Weight: 10.000000 Brand: Price: $ 266.55 |
V1900 Propeller 3x13x19 | 1 | $ 266.55 | ||
| 23-3 | 58100-94532-019 V2100 Propeller 3x13x21
SKU: 58100-94532-019 Weight: 10.000000 Brand: Price: $ 235.26 |
V2100 Propeller 3x13x21 | 1 | $ 235.26 | ||
| 23-4 | 58100-94500-019 V1500 Propeller 3x13-1/2x15
SKU: 58100-94500-019 Weight: 10.000000 Brand: Price: $ 242.32 |
V1500 Propeller 3x13-1/2x15 | 1 | $ 242.32 | ||
| 23-5 | 58100-94554 VS1500 S/S Propeller 3x13-1/2x15 (NLA)
SKU: 58100-94554 Weight: 0.100000 Brand: Price: $ 445.31 |
VS1500 S/S Propeller 3x13-1/2x15 (NLA) | 1 | $ 445.31 | ||
| 23-6 | 99105-00100-16P S/S Propeller 3x13-1/14x16 (NLA)
SKU: 99105-00100-16P Weight: 24.000000 Brand: Price: $ 421.27 |
S/S Propeller 3x13-1/14x16 (NLA) | 1 | $ 421.27 | ||
| 23-7 | 58100-94561 VS1900 S/S Propeller 3x13x19 (NLA)
SKU: 58100-94561 Weight: 10.000000 Brand: Price: $ 324.13 |
VS1900 S/S Propeller 3x13x19 (NLA) | 1 | $ 324.13 | ||
| 23-8 | 58100-94571 VS2100 S/S Propeller 3x13x21 (NLA)
SKU: 58100-94571 Weight: 10.000000 Brand: Price: $ 324.13 |
VS2100 S/S Propeller 3x13x21 (NLA) | 1 | $ 324.13 | ||
| 24 | 58120-94520 Propeller Bushing (NLA)
SKU: 58120-94520 Weight: 1.120000 Brand: Price: $ 59.60 |
Propeller Bushing (NLA) | 1 | $ 59.60 | ||
| 25-1 | 57635-94502 Propeller Bushing Stopper
SKU: 57635-94502 Weight: 0.580000 Brand: Price: $ 103.93 |
Propeller Bushing Stopper | 1 | $ 103.93 | Type: V 1988 to 1991 | |
| 25-2 | 57635-94511 Propeller Bushing Stopper
SKU: 57635-94511 Weight: 0.600000 Brand: Price: $ 115.08 |
Propeller Bushing Stopper | 1 | $ 115.08 | Type: V 1992 to 1997 | |
| 26 | 57630-94500 Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 V-Style
SKU: 57630-94500 Weight: 0.500000 Brand: Price: $ 34.42 |
Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 V-Style | 1 | $ 34.42 | Opt: Type: V | |
| 27 | 57633-94500 Propeller Nut Spacer
SKU: 57633-94500 Weight: 0.320000 Brand: Price: $ 28.04 |
Propeller Nut Spacer | 1 | $ 28.04 | Type: V | |
| 28 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 29 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 30 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 31 | 55300-95500 Zinc Anode
SKU: 55300-95500 Weight: 0.240000 Brand: Price: $ 16.96 |
Zinc Anode | 1 | $ 16.96 | Optional | |
| 32 | 17635-95501 Sub Water Filter (NLA)
SKU: 17635-95501 Weight: 0.060000 Brand: Price: $ 4.65 |
Sub Water Filter (NLA) | 1 | $ 4.65 | ||
| 33 | 09125-06053 Screw (6x16)
SKU: 09125-06053 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (6x16) | 1 | $ 2.20 | ||
| 34 | 55122-95500 Gear Case Seal Ring (NLA)
SKU: 55122-95500 Weight: 0.060000 Brand: Price: $ 6.93 |
Gear Case Seal Ring (NLA) | 1 | $ 6.93 | ||
| 35 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 36 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 37 | 55181-95200 Flush Hose Attachment
SKU: 55181-95200 Weight: 0.080000 Brand: Price: $ 7.16 |
Flush Hose Attachment | 1 | $ 7.16 | ||
| 38 | 55182-95200 Flush Hose Attachment (NLA)
SKU: 55182-95200 Weight: 0.100000 Brand: Price: $ 11.73 |
Flush Hose Attachment (NLA) | 1 | $ 11.73 | Optional | |
| 39 | 17635-95510 Sub Water Seal Plate
SKU: 17635-95510 Weight: 0.100000 Brand: Price: $ 5.67 |
Sub Water Seal Plate | 1 | $ 5.67 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
