Suzuki DT 75 Parts Listings 1995 to 1997

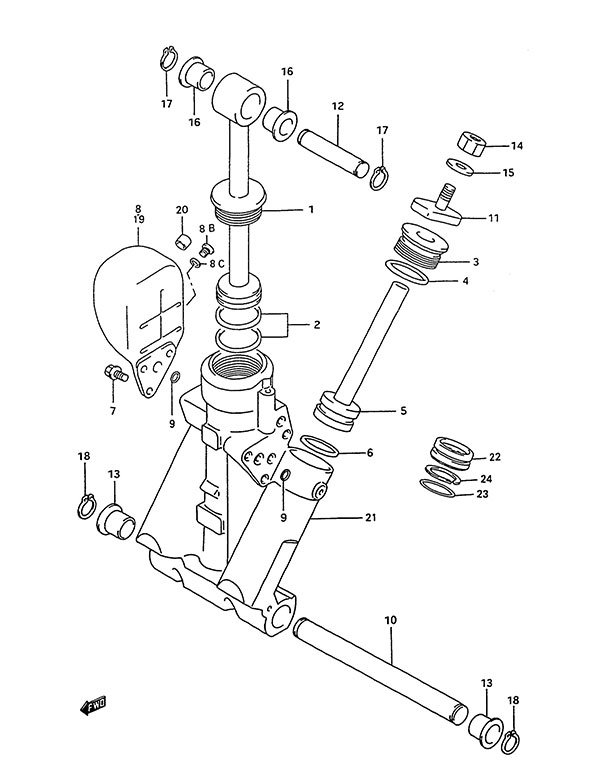

Fig. 22A - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48401-95E00 Piston & Rod Sub Assembly
SKU: 48401-95E00 Weight: 2.500000 Brand: Price: $ 341.04 |
Piston & Rod Sub Assembly | 1 | $ 341.04 | ||
| 2 | 48627-95E00 O-Ring Set
SKU: 48627-95E00 Weight: 0.060000 Brand: Price: $ 7.63 |
O-Ring Set | 1 | $ 7.63 | ||
| 3 | 48630-95E00 Trim Cylinder Head
SKU: 48630-95E00 Weight: 0.160000 Brand: Price: $ 63.01 |
Trim Cylinder Head | 2 | $ 63.01 | ||
| 4 | 48633-95E00 Trim Head O-Ring (NLA)
SKU: 48633-95E00 Weight: 0.060000 Brand: Price: $ 5.17 |
Trim Head O-Ring (NLA) | 2 | $ 5.17 | ||
| 5 | 48601-95E00 Piston & Ram Assembly (NLA)
SKU: 48601-95E00 Weight: 1.040000 Brand: Price: $ 189.39 |
Piston & Ram Assembly (NLA) | 2 | $ 189.39 | ||
| 6 | 48627-95E00 O-Ring Set
SKU: 48627-95E00 Weight: 0.060000 Brand: Price: $ 7.63 |
O-Ring Set | 2 | $ 7.63 | ||
| 7 | 48861-95E00 Reservoir Bolt (NLA)
SKU: 48861-95E00 Weight: 0.100000 Brand: Price: $ 7.86 |
Reservoir Bolt (NLA) | 3 | $ 7.86 | ||
| 8 | 48570-95E01 Reservoir Assembly
SKU: 48570-95E01 Weight: 0.340000 Brand: Price: $ 174.79 |
Reservoir Assembly | 1 | $ 174.79 | ||
| 8B | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 | 1995 to 1996 | |
| 8C | 09280-08014 O-Ring
SKU: 09280-08014 Weight: 0.060000 Brand: Price: $ 1.91 |
O-Ring | 1 | $ 1.91 | 1995 to 1996 | |
| 9 | 48588-95E00 O-Ring
SKU: 48588-95E00 Weight: 0.060000 Brand: Price: $ 5.38 |
O-Ring | 5 | $ 5.38 | ||
| 10 | 48121-95E00 Tilt Cylinder Shaft (NLA)
SKU: 48121-95E00 Weight: 1.400000 Brand: Price: $ 75.20 |
Tilt Cylinder Shaft (NLA) | 1 | $ 75.20 | ||
| 11 | 48311-94501 Trim Cylinder Ram Pad
SKU: 48311-94501 Weight: 0.200000 Brand: Price: $ 49.72 |
Trim Cylinder Ram Pad | 2 | $ 49.72 | ||
| 12 | 48321-87D03 Tilt Cylinder Upper Shaft
SKU: 48321-87D03 Weight: 0.500000 Brand: Price: $ 23.89 |
Tilt Cylinder Upper Shaft | 1 | $ 23.89 | ||
| 13 | 48326-95E00 Tilt Cylinder Lower Bushing
SKU: 48326-95E00 Weight: 0.060000 Brand: Price: $ 5.18 |
Tilt Cylinder Lower Bushing | 2 | $ 5.18 | ||
| 14 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 15 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 16 | 09306-17001 Bushing
SKU: 09306-17001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 2 | $ 2.81 | ||
| 17 | 09380-17009 Circlip
SKU: 09380-17009 Weight: 0.060000 Brand: Price: $ 2.07 |
Circlip | 2 | $ 2.07 | ||
| 8 | 09380-22015 Circlip
SKU: 09380-22015 Weight: 0.060000 Brand: Price: $ 3.96 |
Circlip | 2 | $ 3.96 | ||
| 19 | 48570-95E01 Reservoir Assembly
SKU: 48570-95E01 Weight: 0.340000 Brand: Price: $ 174.79 |
Reservoir Assembly | 1 | $ 174.79 | 1997 | |
| 20 | 48572-95E00 Cap
SKU: 48572-95E00 Weight: 0.060000 Brand: Price: $ 19.06 |
Cap | 1 | $ 19.06 | 1997 | |
| 21 | 48641-95E00 PTT Cylinder
SKU: 48641-95E00 Weight: 5.000000 Brand: Price: $ 350.20 |
PTT Cylinder | 1 | $ 350.20 | ||
| 22 | 48650-94900 Free Piston
SKU: 48650-94900 Weight: 0.260000 Brand: Price: $ 79.39 |
Free Piston | 1 | $ 79.39 | ||
| 23 | 48405-87D00 Tilt O-Ring Set
SKU: 48405-87D00 Weight: 0.060000 Brand: Price: $ 5.35 |
Tilt O-Ring Set | 1 | $ 5.35 | ||
| 24 | 48615-97E00 Piston Ring Set
SKU: 48615-97E00 Weight: 0.060000 Brand: Price: $ 8.46 |
Piston Ring Set | 1 | $ 8.46 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
