Suzuki DT 75 Parts Listings 1988 to 1994

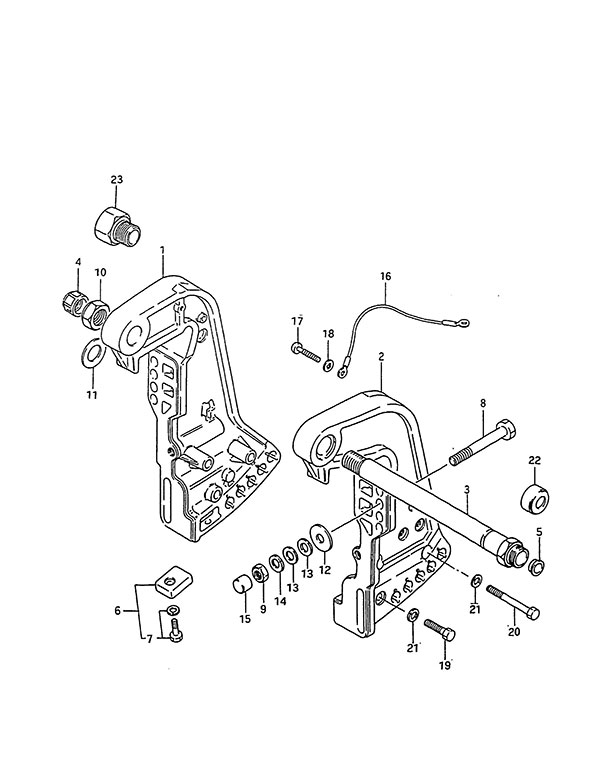

Fig. 17 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-95602-0ED Starboard Clamp Bracket (NLA)
SKU: 41111-95602-0ED Weight: 6.500000 Brand: Price: $ 202.51 |
Starboard Clamp Bracket (NLA) | 1 | $ 202.51 | ||
| 2 | 41121-95610-0ED Port Clamp Bracket (NLA)
SKU: 41121-95610-0ED Weight: 10.000000 Brand: Price: $ 181.57 |
Port Clamp Bracket (NLA) | 1 | $ 181.57 | ||
| 3 | 41130-95541 Clamp Bracket Shaft
SKU: 41130-95541 Weight: 2.000000 Brand: Price: $ 408.05 |
Clamp Bracket Shaft | 1 | $ 408.05 | ||
| 4 | 41151-94500 Clamp Bracket Shaft Cap
SKU: 41151-94500 Weight: 0.060000 Brand: Price: $ 2.85 |
Clamp Bracket Shaft Cap | 1 | $ 2.85 | ||
| 5 | 41152-94500 Clamp Bracket Shaft Plug
SKU: 41152-94500 Weight: 0.125000 Brand: Price: $ 2.22 |
Clamp Bracket Shaft Plug | 1 | $ 2.22 | ||
| 6 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 2 | $ 8.74 | ||
| 7 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 8 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | Requires Ref# 24 | |
| 9 | 09140-12028 Nut
SKU: 09140-12028 Weight: 0.060000 Brand: Price: $ 3.60 |
Nut | 4 | $ 3.60 | ||
| 10 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 11 | 09160-22046 Washer (NLA)
SKU: 09160-22046 Weight: 0.060000 Brand: Price: $ 4.68 |
Washer (NLA) | 1 | $ 4.68 | ||
| 12 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 13 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 6 | $ 1.80 | ||
| 14 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | ||
| 15 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 16 | 36894-94401 Wire Lead (L:195)
SKU: 36894-94401 Weight: 0.060000 Brand: Price: $ 12.53 |
Wire Lead (L:195) | 1 | $ 12.53 | ||
| 17 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 18 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 2 | $ 2.90 | ||
| 19 | 09100-10155 Bolt (10x50)
SKU: 09100-10155 Weight: 0.250000 Brand: Price: $ 5.56 |
Bolt (10x50) | 2 | $ 5.56 | ||
| 20 | 09100-10264 Bolt (10x80)
SKU: 09100-10264 Weight: 0.120000 Brand: Price: $ 8.05 |
Bolt (10x80) | 4 | $ 8.05 | ||
| 21 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 6 | $ 1.86 | ||
| 22 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 12.60 |
Steering Cable Seal | 1 | $ 12.60 | ||
| 23 | 41141-94300 Steering Cable Attachment (NLA)
SKU: 41141-94300 Weight: 0.250000 Brand: Price: $ 42.48 |
Steering Cable Attachment (NLA) | 1 | $ 42.48 | ||
| 24 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
