Suzuki DT 75 Parts Listings 1988 to 1997

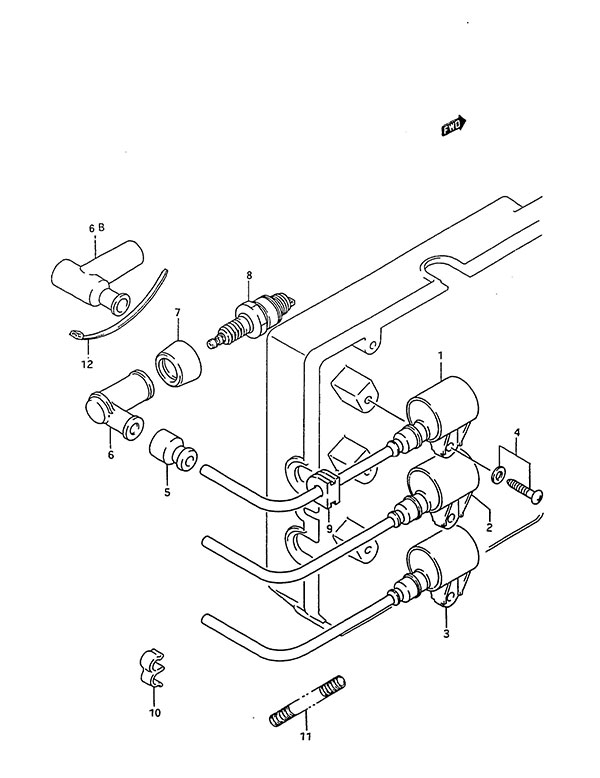

Fig. 13 - Ignition Coil
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33410-95D11 Ignition Coil Assembly
SKU: 33410-95D11 Weight: 0.260000 Brand: Price: $ 65.91 |
Ignition Coil Assembly | 1 | $ 65.91 | ||
| 2 | 33410-95D11 Ignition Coil Assembly
SKU: 33410-95D11 Weight: 0.260000 Brand: Price: $ 65.91 |
Ignition Coil Assembly | 1 | $ 65.91 | ||
| 3 | 33430-95600 Ignition Coil Assembly
SKU: 33430-95600 Weight: 0.187500 Brand: Price: $ 93.22 |
Ignition Coil Assembly | 1 | $ 93.22 | ||
| 4 | 03242-05253 Screw (NLA)
SKU: 03242-05253 Weight: 0.100000 Brand: Price: $ 1.17 |
Screw (NLA) | 3 | $ 1.17 | ||
| 5 | 33542-38B00 Spark Plug Cap Seal
SKU: 33542-38B00 Weight: 0.060000 Brand: Price: $ 4.58 |
Spark Plug Cap Seal | 3 | $ 4.58 | ||
| 6 | 33510-95520 Spark Plug Cap
SKU: 33510-95520 Weight: 0.060000 Brand: Price: $ 18.63 |
Spark Plug Cap | 3 | $ 18.63 | 1988 | |
| 6B | 33510-87D20 Spark Plug Cap
SKU: 33510-87D20 Weight: 0.060000 Brand: Price: $ 35.00 |
Spark Plug Cap | 3 | $ 35.00 | 1989 to 1997 | |
| 7 | 33541-93950 Spark Plug Seal
SKU: 33541-93950 Weight: 0.060000 Brand: Price: $ 9.53 |
Spark Plug Seal | 3 | $ 9.53 | ||
| 8 | 09482-00370 NGK BR8HS Spark Plug
SKU: 09482-00370 Weight: 0.187500 Brand: Price: $ 3.57 |
NGK BR8HS Spark Plug | 3 | $ 3.57 | ||
| 9 | 09309-06007 Grommet (NLA)
SKU: 09309-06007 Weight: 0.060000 Brand: Price: $ 2.06 |
Grommet (NLA) | 3 | $ 2.06 | ||
| 10 | 09408-00033 Clamp
SKU: 09408-00033 Weight: 0.100000 Brand: Price: $ 2.45 |
Clamp | 1 | $ 2.45 | ||
| 11 | 33446-98E20 High Tension Protect Tube (NLA)
SKU: 33446-98E20 Weight: 0.100000 Brand: Price: $ 2.96 |
High Tension Protect Tube (NLA) | 1 | $ 2.96 | L:500->60 | |
| 12 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 3 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
