Suzuki DT 75 Parts Listings 1995 to 1997

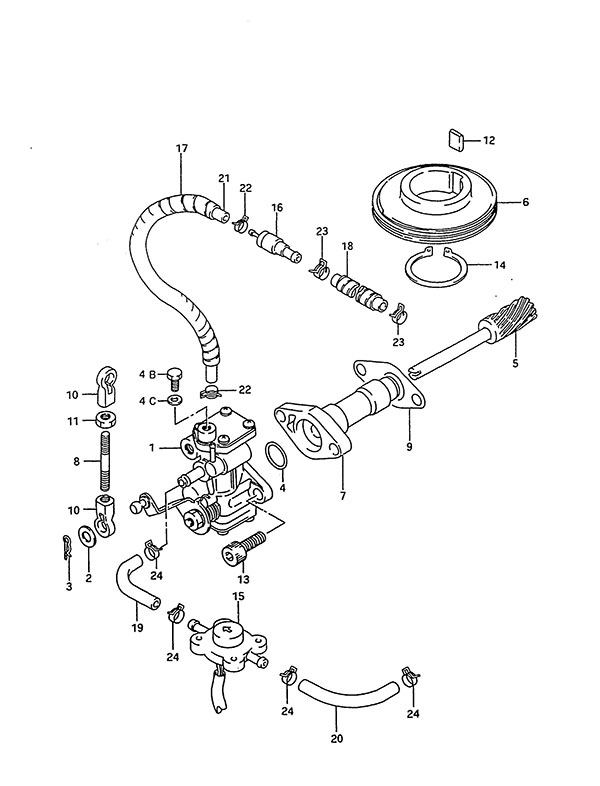

Fig. 7A - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16100-95E10 Oil Pump Assembly (NLA)
SKU: 16100-95E10 Weight: 0.100000 Brand: Price: $ 181.74 |
Oil Pump Assembly (NLA) | 1 | $ 181.74 | ||
| 2 | 13432-33100 Washer
SKU: 13432-33100 Weight: 0.060000 Brand: Price: $ 3.04 |
Washer | 1 | $ 3.04 | ||
| 3 | 16195-87D00 Snap Pin
SKU: 16195-87D00 Weight: 0.060000 Brand: Price: $ 2.37 |
Snap Pin | 1 | $ 2.37 | ||
| 4 | 16198-87D00 Oil Pump O-Ring
SKU: 16198-87D00 Weight: 0.060000 Brand: Price: $ 1.65 |
Oil Pump O-Ring | 1 | $ 1.65 | ||
| 4B | 16091-94900 Bolt (NLA)
SKU: 16091-94900 Weight: 0.100000 Brand: Price: $ 2.27 |
Bolt (NLA) | 1 | $ 2.27 | ||
| 4C | 16092-92440 Gasket (NLA)
SKU: 16092-92440 Weight: 0.100000 Brand: Price: $ 1.28 |
Gasket (NLA) | 1 | $ 1.28 | ||
| 5 | 16321-95502 Oil Pump Drive Gear
SKU: 16321-95502 Weight: 0.500000 Brand: Price: $ 136.29 |
Oil Pump Drive Gear | 1 | $ 136.29 | ||
| 6 | 16331-95511 Oil Pump Driven Gear
SKU: 16331-95511 Weight: 0.150000 Brand: Price: $ 31.85 |
Oil Pump Driven Gear | 1 | $ 31.85 | ||
| 7 | 16340-95520 Driven Gear Retainer (NLA)
SKU: 16340-95520 Weight: 0.200000 Brand: Price: $ 25.96 |
Driven Gear Retainer (NLA) | 1 | $ 25.96 | ||
| 8 | 19171-92D10 Oil Pump Control Rod (NLA)
SKU: 19171-92D10 Weight: 0.100000 Brand: Price: $ 2.47 |
Oil Pump Control Rod (NLA) | 1 | $ 2.47 | ||
| 9 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 10 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 11 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 12 | 09421-10001 Key (NLA)
SKU: 09421-10001 Weight: 0.060000 Brand: Price: $ 1.71 |
Key (NLA) | 1 | $ 1.71 | ||
| 13 | 07130-06307 BOLT
SKU: 07130-06307 Weight: 0.100000 Brand: Price: $ 3.74 |
BOLT | 2 | $ 3.74 | ||
| 14 | 08331-31309 CIRCLIP
SKU: 08331-31309 Weight: 0.100000 Brand: Price: $ 2.59 |
CIRCLIP | 1 | $ 2.59 | ||
| 15 | 16250-94710 Oil Filter/Flow Sensor
SKU: 16250-94710 Weight: 0.080000 Brand: Price: $ 32.05 |
Oil Filter/Flow Sensor | 1 | $ 32.05 | ||
| 16-1 | 16710-92E01 Oil Check Valve (Single)
SKU: 16710-92E01 Weight: 0.060000 Brand: Price: $ 19.39 |
Oil Check Valve (Single) | 1 | $ 19.39 | 1995 | |
| 16-2 | 16710-94641 Oil Check Valve (Double)
SKU: 16710-94641 Weight: 0.060000 Brand: Price: $ 27.53 |
Oil Check Valve (Double) | 1 | $ 27.53 | 1996 to 1997 | |
| 17 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->290 | |
| 18 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | Valve to 3 Way L:2000->100 | |
| 19 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Sensor to Pump L:600->65 | |
| 20 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Tank to Sensor L:600->100 | |
| 21 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | Pump to Valve L:600-350 | |
| 22 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 2 | $ 2.12 | Pump to Valve | |
| 23 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 2 | $ 2.02 | Valve to Nozzle | |
| 24 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
