Suzuki DT 75 Parts Listings 1988 to 1994

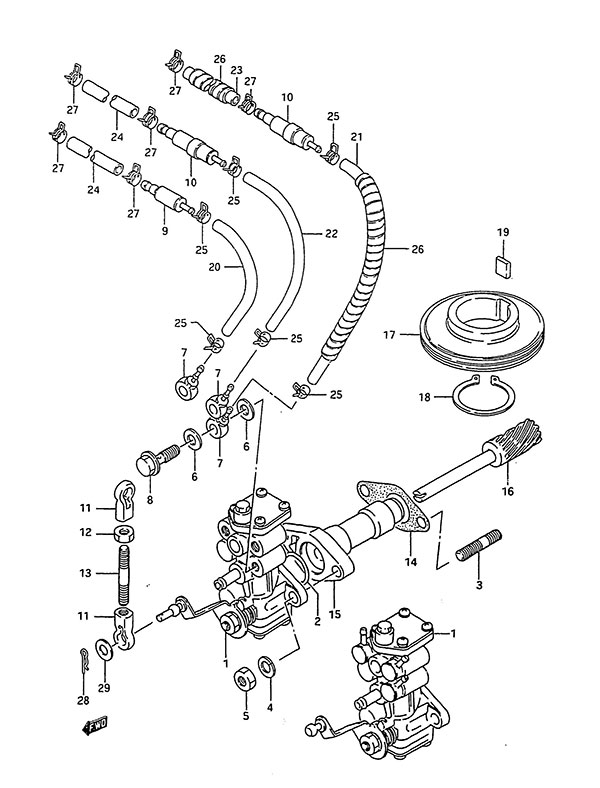

Fig. 7 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16100-95531 Oil Pump Assembly
SKU: 16100-95531 Weight: 0.500000 Brand: Price: $ 329.03 |
Oil Pump Assembly | 1 | $ 329.03 | ||
| 2 | 16198-87D00 Oil Pump O-Ring
SKU: 16198-87D00 Weight: 0.060000 Brand: Price: $ 1.65 |
Oil Pump O-Ring | 1 | $ 1.65 | ||
| 3 | 01421-06307 BOLTSTUD
SKU: 01421-06307 Weight: 0.200000 Brand: Price: $ 2.62 |
BOLTSTUD | 2 | $ 2.62 | ||
| 4 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 5 | 09140-06013 Nut (NLA)
SKU: 09140-06013 Weight: 0.100000 Brand: Price: $ 0.66 |
Nut (NLA) | 2 | $ 0.66 | ||
| 6 | 09168-06023 Gasket
SKU: 09168-06023 Weight: 0.060000 Brand: Price: $ 2.04 |
Gasket | 6 | $ 2.04 | S/N 011645 Older | |
| 7 | 09363-02002 Union
SKU: 09363-02002 Weight: 0.060000 Brand: Price: $ 8.37 |
Union | 3 | $ 8.37 | S/N 011645 Older | |
| 8 | 09360-06012 Union Bolt
SKU: 09360-06012 Weight: 0.100000 Brand: Price: $ 3.62 |
Union Bolt | 3 | $ 3.62 | S/N 011645 Older | |
| 9 | 16710-92E01 Oil Check Valve (Single)
SKU: 16710-92E01 Weight: 0.060000 Brand: Price: $ 19.39 |
Oil Check Valve (Single) | 1 | $ 19.39 | ||
| 10 | 16710-94641 Oil Check Valve (Double)
SKU: 16710-94641 Weight: 0.060000 Brand: Price: $ 27.53 |
Oil Check Valve (Double) | 2 | $ 27.53 | ||
| 11 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 12 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 13 | 16411-95500 Control Rod (NLA)
SKU: 16411-95500 Weight: 0.100000 Brand: Price: $ 2.45 |
Control Rod (NLA) | 1 | $ 2.45 | ||
| 14 | 16731-95520 Oil Pump Retainer Gasket (NLA)
SKU: 16731-95520 Weight: 0.060000 Brand: Price: $ 2.75 |
Oil Pump Retainer Gasket (NLA) | 1 | $ 2.75 | ||
| 15 | 16340-95520 Driven Gear Retainer (NLA)
SKU: 16340-95520 Weight: 0.200000 Brand: Price: $ 25.96 |
Driven Gear Retainer (NLA) | 1 | $ 25.96 | ||
| 16 | 16331-95511 Oil Pump Driven Gear
SKU: 16331-95511 Weight: 0.150000 Brand: Price: $ 31.85 |
Oil Pump Driven Gear | 1 | $ 31.85 | ||
| 17 | 16321-95502 Oil Pump Drive Gear
SKU: 16321-95502 Weight: 0.500000 Brand: Price: $ 136.29 |
Oil Pump Drive Gear | 1 | $ 136.29 | ||
| 18 | 08331-31309 CIRCLIP
SKU: 08331-31309 Weight: 0.100000 Brand: Price: $ 2.59 |
CIRCLIP | 1 | $ 2.59 | ||
| 19 | 09421-10001 Key (NLA)
SKU: 09421-10001 Weight: 0.060000 Brand: Price: $ 1.71 |
Key (NLA) | 1 | $ 1.71 | ||
| 20-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | Pump to Valve L:600->50 1988 to 1990 | |
| 20-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | Pump to Valve L:600->50 1991 to 1994 | |
| 21-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | Pump to Valve L:600->80 1988 to 1990 | |
| 21-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | Pump to Valve L:600->80 1991 to 1994 | |
| 22-1 | 09351-25703-600 Hose (2.5x7x600)
SKU: 09351-25703-600 Weight: 0.100000 Brand: Price: $ 6.08 |
Hose (2.5x7x600) | 1 | $ 6.08 | Pump to Valve L:600->190 1988 to 1990 | |
| 22-2 | 09355-25705-600 Hose (2.5x7x600)
SKU: 09355-25705-600 Weight: 0.080000 Brand: Price: $ 7.06 |
Hose (2.5x7x600) | 1 | $ 7.06 | Pump to Valve L:600->190 1991 to 1994 | |
| 23 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | Valve to Nozzle L:2000->40 | |
| 24 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 2 | $ 9.26 | Valve to Nozzle L:2000->100 | |
| 25 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 6 | $ 2.12 | ||
| 26 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 3 | $ 8.45 | ||
| 27 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 6 | $ 2.02 | ||
| 28 | 16195-87D00 Snap Pin
SKU: 16195-87D00 Weight: 0.060000 Brand: Price: $ 2.37 |
Snap Pin | 1 | $ 2.37 | ||
| 29 | 13432-33100 Washer
SKU: 13432-33100 Weight: 0.060000 Brand: Price: $ 3.04 |
Washer | 1 | $ 3.04 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
