Suzuki DT 75 Parts Listings 1988 to 1997

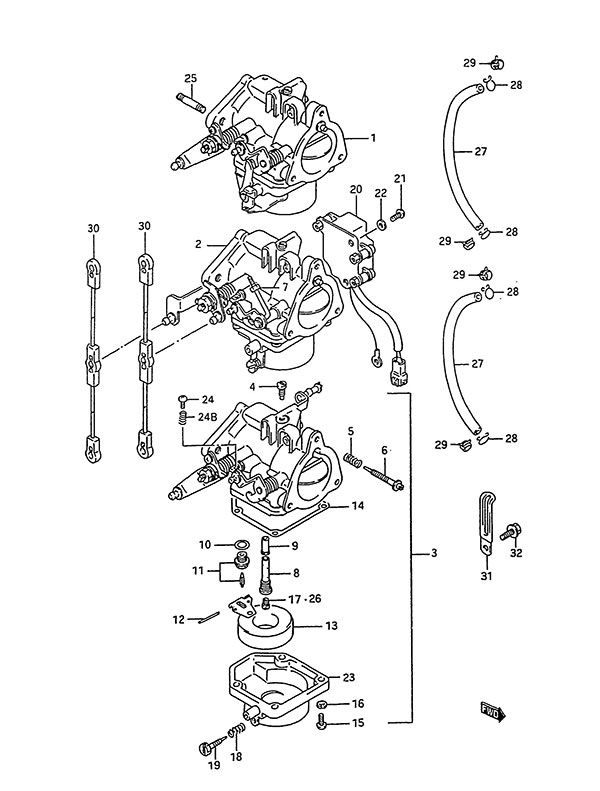

Fig. 4 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13201-956R1 Top Carburetor Assembly (NLA)
SKU: 13201-956R1 Weight: 0.100000 Brand: Price: $ 266.21 |
Top Carburetor Assembly (NLA) | 1 | $ 266.21 | ||
| 2-1 | 13202-95643 2nd Carburetor Assembly (NLA)
SKU: 13202-95643 Weight: 0.100000 Brand: Price: $ 315.52 |
2nd Carburetor Assembly (NLA) | 1 | $ 315.52 | S/N 913596 Older | |
| 2-2 | 13202-956R3 2nd Carburetor Assembly (NLA)
SKU: 13202-956R3 Weight: 1.500000 Brand: Price: $ 633.11 |
2nd Carburetor Assembly (NLA) | 1 | $ 633.11 | 1991 to 1997 | |
| 3 | 13203-956R1 3rd Carburetor Assembly (NLA)
SKU: 13203-956R1 Weight: 1.500000 Brand: Price: $ 419.16 |
3rd Carburetor Assembly (NLA) | 1 | $ 419.16 | ||
| 4-1 | 09492-80005 Pilot Jet #80
SKU: 09492-80005 Weight: 0.060000 Brand: Price: $ 10.00 |
Pilot Jet #80 | 3 | $ 10.00 | 1988 to 1990 | |
| 4-2 | 09492-87001 Pilot Jet #87.5 (NLA)
SKU: 09492-87001 Weight: 0.060000 Brand: Price: $ 7.94 |
Pilot Jet #87.5 (NLA) | 3 | $ 7.94 | 1991 to 1997 | |
| 5 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 3 | $ 4.90 | ||
| 6 | 13269-93311 Pilot Air Screw
SKU: 13269-93311 Weight: 0.060000 Brand: Price: $ 8.28 |
Pilot Air Screw | 3 | $ 8.28 | ||
| 7 | 13582-95216 Nut (NLA)
SKU: 13582-95216 Weight: 0.100000 Brand: Price: $ 3.88 |
Nut (NLA) | 1 | $ 3.88 | 2nd Carb | |
| 8 | 13236-96300 Main Nozzle
SKU: 13236-96300 Weight: 0.125000 Brand: Price: $ 24.25 |
Main Nozzle | 3 | $ 24.25 | ||
| 9 | 13237-94400 Upper Nozzle
SKU: 13237-94400 Weight: 0.060000 Brand: Price: $ 3.47 |
Upper Nozzle | 3 | $ 3.47 | ||
| 10 | 13392-58600 Valve Seat Gasket
SKU: 13392-58600 Weight: 0.060000 Brand: Price: $ 1.91 |
Valve Seat Gasket | 3 | $ 1.91 | ||
| 11 | 13370-28110 Needle Valve Assembly
SKU: 13370-28110 Weight: 0.060000 Brand: Price: $ 49.35 |
Needle Valve Assembly | 3 | $ 49.35 | ||
| 12 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 3 | $ 3.28 | ||
| 13 | 13250-93012 Carburetor Float
SKU: 13250-93012 Weight: 0.060000 Brand: Price: $ 20.17 |
Carburetor Float | 3 | $ 20.17 | ||
| 14 | 13251-93320 Float Chamber Gasket
SKU: 13251-93320 Weight: 0.060000 Brand: Price: $ 8.56 |
Float Chamber Gasket | 3 | $ 8.56 | ||
| 15 | 13249-95520 Screw (NLA)
SKU: 13249-95520 Weight: 0.060000 Brand: Price: $ 2.35 |
Screw (NLA) | 12 | $ 2.35 | ||
| 16 | 09162-05002 Lock Washer
SKU: 09162-05002 Weight: 0.125000 Brand: Price: $ 1.27 |
Lock Washer | 12 | $ 1.27 | ||
| 17-1 | 09491-27008 Main Jet #135
SKU: 09491-27008 Weight: 0.100000 Brand: Price: $ 10.63 |
Main Jet #135 | 3 | $ 10.63 | 1988 to 1991 | |
| 17-2 | 09491-28011 Main Jet #140
SKU: 09491-28011 Weight: 0.100000 Brand: Price: $ 16.18 |
Main Jet #140 | 3 | $ 16.18 | 1992 to 1997 | |
| 18 | 13271-93311 Air Screw Spring
SKU: 13271-93311 Weight: 0.060000 Brand: Price: $ 4.90 |
Air Screw Spring | 3 | $ 4.90 | ||
| 19 | 13616-94500 Drain Bolt
SKU: 13616-94500 Weight: 0.060000 Brand: Price: $ 7.95 |
Drain Bolt | 3 | $ 7.95 | ||
| 20 | 37810-95606 Throttle Valve Sensor Assembly
SKU: 37810-95606 Weight: 0.180000 Brand: Price: $ 232.07 |
Throttle Valve Sensor Assembly | 1 | $ 232.07 | ||
| 21 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 22 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 2 | $ 1.85 | ||
| 23 | 13240-94600 Float Chamber Assembly
SKU: 13240-94600 Weight: 0.200000 Brand: Price: $ 70.55 |
Float Chamber Assembly | 3 | $ 70.55 | ||
| 24 | 13267-93900 Screw
SKU: 13267-93900 Weight: 0.060000 Brand: Price: $ 3.29 |
Screw | 1 | $ 3.29 | ||
| 24B | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 1 | $ 4.61 | ||
| 25 | 01411-08207 Stud Bolt (NLA)
SKU: 01411-08207 Weight: 0.100000 Brand: Price: $ 2.03 |
Stud Bolt (NLA) | 3 | $ 2.03 | ||
| 26-1 | 09491-26016 Main Jet #130
SKU: 09491-26016 Weight: 0.060000 Brand: Price: $ 15.28 |
Main Jet #130 | 3 | $ 15.28 | Optional | |
| 26-2 | 09491-29002 Main Jet #145
SKU: 09491-29002 Weight: 0.060000 Brand: Price: $ 9.70 |
Main Jet #145 | 3 | $ 9.70 | Optional | |
| 27 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | L:600->110 | |
| 28 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 4 | $ 1.86 | 1988 to 1990 | |
| 29 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | 1991 to 1997 | |
| 30 | 13510-94700 Throttle Rod Assembly (NLA)
SKU: 13510-94700 Weight: 0.060000 Brand: Price: $ 9.73 |
Throttle Rod Assembly (NLA) | 2 | $ 9.73 | ||
| 32 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 33 | 13910-94701 Carburetor Repair Kit
SKU: 13910-94701 Weight: 0.060000 Brand: Price: $ 32.39 |
Carburetor Repair Kit | 3 | $ 32.39 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
