Suzuki DT 75 Parts Listings 1988 to 1997

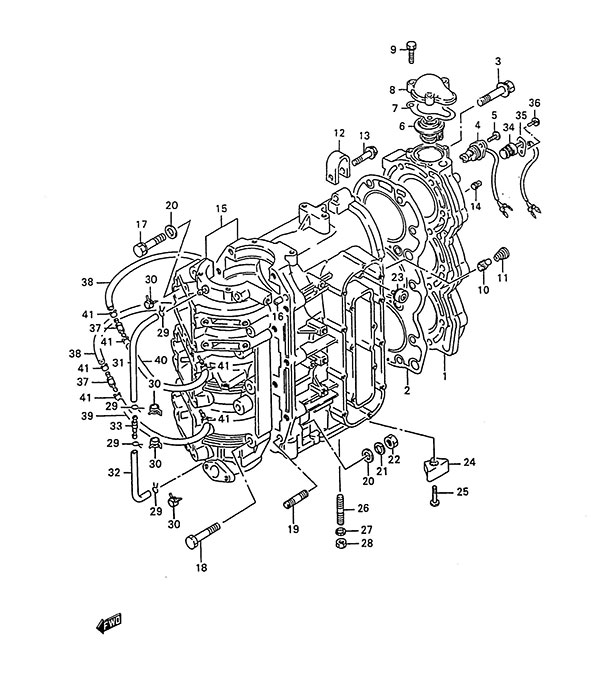

Fig. 1 - Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11111-95630-0ED Cylinder Head (NLA)
SKU: 11111-95630-0ED Weight: 6.000000 Brand: Price: $ 368.97 |
Cylinder Head (NLA) | 1 | $ 368.97 | ||
| 2 | 11141-95621 Cylinder Head Gasket
SKU: 11141-95621 Weight: 0.300000 Brand: Price: $ 59.41 |
Cylinder Head Gasket | 1 | $ 59.41 | ||
| 3 | 01560-10557 BOLT
SKU: 01560-10557 Weight: 0.125000 Brand: Price: $ 4.11 |
BOLT | 14 | $ 4.11 | ||
| 4-1 | 34870-87D10 Cooling Water Sensor (NLA)
SKU: 34870-87D10 Weight: 0.080000 Brand: Price: $ 83.37 |
Cooling Water Sensor (NLA) | 1 | $ 83.37 | 1990 to 1991 | |
| 4-2 | 34820-95D20 Cylinder Temp Sensor
SKU: 34820-95D20 Weight: 0.250000 Brand: Price: $ 68.04 |
Cylinder Temp Sensor | 1 | $ 68.04 | 1992 to 1997 | |
| 5 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 2 | $ 2.49 | ||
| 6-1 | 17670-95303 Thermostat (42c)
SKU: 17670-95303 Weight: 0.160000 Brand: Price: $ 35.03 |
Thermostat (42c) | 1 | $ 35.03 | ||
| 6-2 | 17670-95293 Thermostat 62c
SKU: 17670-95293 Weight: 0.160000 Brand: Price: $ 28.07 |
Thermostat 62c | 1 | $ 28.07 | Optional | |
| 7 | 17685-95510 Thermostat Cover Gasket
SKU: 17685-95510 Weight: 0.060000 Brand: Price: $ 3.62 |
Thermostat Cover Gasket | 1 | $ 3.62 | ||
| 8 | 17681-95502-0ED Thermostat Cover (NLA)
SKU: 17681-95502-0ED Weight: 0.250000 Brand: Price: $ 29.97 |
Thermostat Cover (NLA) | 1 | $ 29.97 | ||
| 9 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 3 | $ 2.74 | ||
| 10 | 17611-95201 Water Bypass Valve
SKU: 17611-95201 Weight: 0.060000 Brand: Price: $ 10.91 |
Water Bypass Valve | 1 | $ 10.91 | ||
| 11 | 09441-12001 Spring (SUS)
SKU: 09441-12001 Weight: 0.060000 Brand: Price: $ 3.07 |
Spring (SUS) | 1 | $ 3.07 | ||
| 12 | 11291-94402 Engine Hook (NLA)
SKU: 11291-94402 Weight: 0.100000 Brand: Price: $ 2.44 |
Engine Hook (NLA) | 1 | $ 2.44 | ||
| 13 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 1 | $ 3.54 | ||
| 14 | 09246-04005 Plug
SKU: 09246-04005 Weight: 0.060000 Brand: Price: $ 4.11 |
Plug | 1 | $ 4.11 | ||
| 15 | 11301-95606-0ED Cylinder Assembly (NLA)
SKU: 11301-95606-0ED Weight: 0.100000 Brand: Price: $ 1,387.33 |
Cylinder Assembly (NLA) | 1 | $ 1,387.33 | ||
| 16 | 04211-09109 DOWEL PIN
SKU: 04211-09109 Weight: 0.060000 Brand: Price: $ 1.66 |
DOWEL PIN | 2 | $ 1.66 | ||
| 17 | 01560-10457 Bolt (10x45) (NLA)
SKU: 01560-10457 Weight: 0.100000 Brand: Price: $ 2.07 |
Bolt (10x45) (NLA) | 3 | $ 2.07 | ||
| 18 | 01560-10557 BOLT
SKU: 01560-10557 Weight: 0.125000 Brand: Price: $ 4.11 |
BOLT | 10 | $ 4.11 | ||
| 19 | 01421-10457 BOLT,STUD
SKU: 01421-10457 Weight: 0.100000 Brand: Price: $ 3.98 |
BOLT,STUD | 1 | $ 3.98 | ||
| 20 | 08322-01107 Washer
SKU: 08322-01107 Weight: 0.060000 Brand: Price: $ 1.87 |
Washer | 1 | $ 1.87 | ||
| 21 | 08321-01107 Lock Washer
SKU: 08321-01107 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 22 | 08310-00107 Nut
SKU: 08310-00107 Weight: 0.060000 Brand: Price: $ 2.21 |
Nut | 1 | $ 2.21 | ||
| 23 | 11130-94600 Zinc Anode
SKU: 11130-94600 Weight: 0.060000 Brand: Price: $ 9.01 |
Zinc Anode | 1 | $ 9.01 | 1988 to 1991 | |
| 24 | 11281-87D00 Zinc Anode
SKU: 11281-87D00 Weight: 0.180000 Brand: Price: $ 6.49 |
Zinc Anode | 1 | $ 6.49 | ||
| 25 | 09126-06005 Screw (6x30)
SKU: 09126-06005 Weight: 0.060000 Brand: Price: $ 2.12 |
Screw (6x30) | 1 | $ 2.12 | ||
| 26 | 09108-08137 Stud Bolt (8x40)
SKU: 09108-08137 Weight: 0.200000 Brand: Price: $ 5.23 |
Stud Bolt (8x40) | 1 | $ 5.23 | ||
| 27 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 1 | $ 1.49 | ||
| 28 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 1 | $ 2.52 | ||
| 29 | 09401-06101 Clamp
SKU: 09401-06101 Weight: 0.060000 Brand: Price: $ 2.04 |
Clamp | 4 | $ 2.04 | 1988 to 1990 | |
| 30 | 09401-06405 Clamp
SKU: 09401-06405 Weight: 0.060000 Brand: Price: $ 2.12 |
Clamp | 4 | $ 2.12 | 1991 to 1997 | |
| 31 | 09355-30001-600 Hose (3x7x600)
SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 8.71 |
Hose (3x7x600) | 1 | $ 8.71 | L:600->285 | |
| 32 | 09355-30001-600 Hose (3x7x600)
SKU: 09355-30001-600 Weight: 0.200000 Brand: Price: $ 8.71 |
Hose (3x7x600) | 1 | $ 8.71 | L:600->120 | |
| 33 | 16710-95211 Check Valve
SKU: 16710-95211 Weight: 0.060000 Brand: Price: $ 17.43 |
Check Valve | 1 | $ 17.43 | ||
| 34 | 34850-95D30 Heat Sensor Assembly
SKU: 34850-95D30 Weight: 0.080000 Brand: Price: $ 105.05 |
Heat Sensor Assembly | 1 | $ 105.05 | 1992 to 1997 | |
| 35 | 34853-94700 Heat Sensor Supporter
SKU: 34853-94700 Weight: 0.100000 Brand: Price: $ 3.71 |
Heat Sensor Supporter | 1 | $ 3.71 | 1992 to 1997 | |
| 36 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 2 | $ 2.09 | 1992 to 1997 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
