Suzuki DT 85 Parts Listings 1988 to 2000

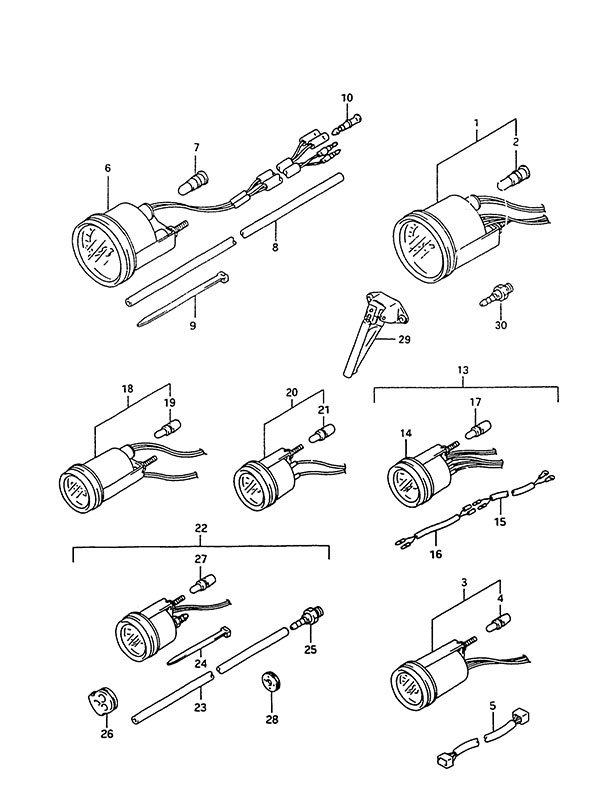

Fig. 37 - Opt: Meter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34200-92E02 Tachometer (NLA)
SKU: 34200-92E02 Weight: 1.000000 Brand: Price: $ 116.95 |
Tachometer (NLA) | 1 | $ 116.95 | ||
| 2 | 09471-12179 Bulb (Red)
SKU: 09471-12179 Weight: 0.060000 Brand: Price: $ 6.52 |
Bulb (Red) | 1 | $ 6.52 | ||
| 3 | 34800-92E00 Trim Meter Assembly (NLA)
SKU: 34800-92E00 Weight: 0.100000 Brand: Price: $ 79.95 |
Trim Meter Assembly (NLA) | 1 | $ 79.95 | ||
| 4 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 5 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | ||
| 6 | 34100-92E00 Speedometer (80mph) (NLA)
SKU: 34100-92E00 Weight: 0.100000 Brand: Price: $ 81.95 |
Speedometer (80mph) (NLA) | 1 | $ 81.95 | ||
| 7 | 09471-12179 Bulb (Red)
SKU: 09471-12179 Weight: 0.060000 Brand: Price: $ 6.52 |
Bulb (Red) | 1 | $ 6.52 | ||
| 8 | 34191-92E00 Water Pressure Tubing
SKU: 34191-92E00 Weight: 0.300000 Brand: Price: $ 33.64 |
Water Pressure Tubing | 1 | $ 33.64 | ||
| 9 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 10 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 13 | 34300-92E00 Fuel Gauge Set (NLA)
SKU: 34300-92E00 Weight: 0.100000 Brand: Price: $ 85.95 |
Fuel Gauge Set (NLA) | 1 | $ 85.95 | ||
| 14 | 34320-92E00 Fuel Gauge (NLA)
SKU: 34320-92E00 Weight: 0.100000 Brand: Price: $ 71.54 |
Fuel Gauge (NLA) | 1 | $ 71.54 | ||
| 15 | 34310-92E00 Fuel Gauge Lead (NLA)
SKU: 34310-92E00 Weight: 0.100000 Brand: Price: $ 41.14 |
Fuel Gauge Lead (NLA) | 1 | $ 41.14 | ||
| 16 | 34360-92E00 Adapter Harness (NLA)
SKU: 34360-92E00 Weight: 1.000000 Brand: Price: $ 31.27 |
Adapter Harness (NLA) | 1 | $ 31.27 | ||
| 17 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 18 | 34500-92E00 Hour Meter (NLA)
SKU: 34500-92E00 Weight: 0.100000 Brand: Price: $ 82.95 |
Hour Meter (NLA) | 1 | $ 82.95 | ||
| 19 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 20 | 34600-92E00 Volt Meter (NLA)
SKU: 34600-92E00 Weight: 0.100000 Brand: Price: $ 64.95 |
Volt Meter (NLA) | 1 | $ 64.95 | ||
| 21 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 22-1 | 34650-92E00 Water Pressure Gauge (NLA)
SKU: 34650-92E00 Weight: 1.000000 Brand: Price: $ 72.95 |
Water Pressure Gauge (NLA) | 1 | $ 72.95 | ||
| 22-2 | 34650-92E10 Water Pressure Gauge (NLA)
SKU: 34650-92E10 Weight: 0.100000 Brand: Price: $ 72.95 |
Water Pressure Gauge (NLA) | 1 | $ 72.95 | ||
| 23 | 34191-92E00 Water Pressure Tubing
SKU: 34191-92E00 Weight: 0.300000 Brand: Price: $ 33.64 |
Water Pressure Tubing | 1 | $ 33.64 | ||
| 24 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 25 | 34652-92E00 Union (NLA)
SKU: 34652-92E00 Weight: 0.060000 Brand: Price: $ 11.19 |
Union (NLA) | 1 | $ 11.19 | ||
| 26 | 36658-95600 Cable Grommet (NLA)
SKU: 36658-95600 Weight: 0.100000 Brand: Price: $ 5.94 |
Cable Grommet (NLA) | 1 | $ 5.94 | ||
| 26 | 36658-95600 Cable Grommet (NLA)
SKU: 36658-95600 Weight: 0.100000 Brand: Price: $ 5.94 |
Cable Grommet (NLA) | 1 | $ 5.94 | ||
| 27 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 28 | 09320-08028 Grommet
SKU: 09320-08028 Weight: 0.100000 Brand: Price: $ 3.09 |
Grommet | 1 | $ 3.09 | ||
| 29 | 34190-87D00 Speedometer Sensor
SKU: 34190-87D00 Weight: 0.350000 Brand: Price: $ 44.58 |
Speedometer Sensor | 1 | $ 44.58 | ||
| 30 | 09362-09007 Union (NLA)
SKU: 09362-09007 Weight: 0.060000 Brand: Price: $ 36.01 |
Union (NLA) | 1 | $ 36.01 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
