Suzuki DT 85 Parts Listings 1988 to 1994

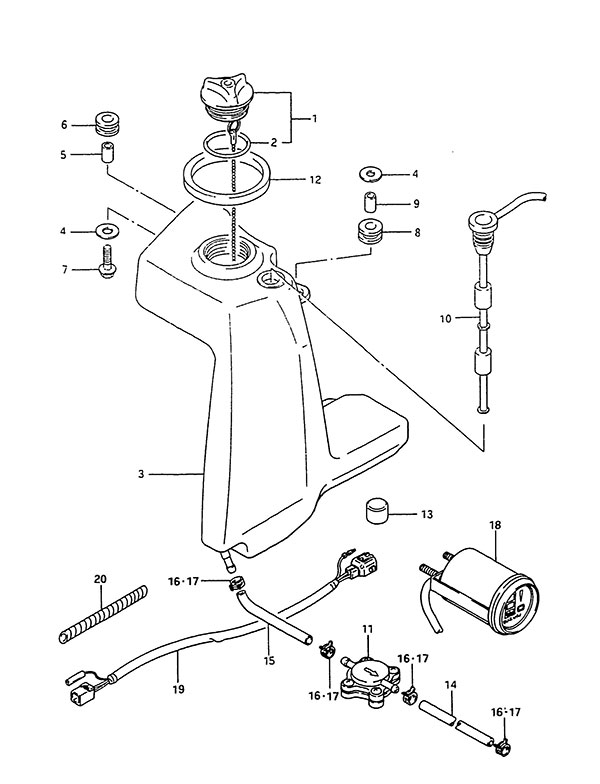

Fig. 32 - Oil Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 69201-95500 Suzuki Oil Tank Cap (NLA)
SKU: 69201-95500 Weight: 0.120000 Brand: Price: $ 33.71 |
Suzuki Oil Tank Cap (NLA) | 1 | $ 33.71 | ||
| 2 | 09280-41006 O-Ring
SKU: 09280-41006 Weight: 0.060000 Brand: Price: $ 3.43 |
O-Ring | 1 | $ 3.43 | ||
| 3 | 69101-95500 Oil Tank (NLA)
SKU: 69101-95500 Weight: 3.000000 Brand: Price: $ 106.42 |
Oil Tank (NLA) | 1 | $ 106.42 | ||
| 4 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 2 | $ 1.78 | ||
| 19-5 | 36660-92E90 Monitor Gauge Harness (6 ft) (NLA)
SKU: 36660-92E90 Weight: 0.100000 Brand: Price: $ 69.95 |
Monitor Gauge Harness (6 ft) (NLA) | 1 | $ 69.95 | Opt: 1993 to 1994 | |
| 5 | 09180-06310 Spacer (6.5x10x10)
SKU: 09180-06310 Weight: 0.060000 Brand: Price: $ 1.91 |
Spacer (6.5x10x10) | 1 | $ 1.91 | ||
| 6 | 09320-10075 Cushion
SKU: 09320-10075 Weight: 0.060000 Brand: Price: $ 1.92 |
Cushion | 1 | $ 1.92 | ||
| 7 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 8 | 09320-12027 Cushion
SKU: 09320-12027 Weight: 0.060000 Brand: Price: $ 2.15 |
Cushion | 1 | $ 2.15 | ||
| 9 | 09180-08301 Spacer
SKU: 09180-08301 Weight: 0.100000 Brand: Price: $ 1.95 |
Spacer | 1 | $ 1.95 | ||
| 10 | 34860-94741 Oil Level Switch Assembly
SKU: 34860-94741 Weight: 0.200000 Brand: Price: $ 115.02 |
Oil Level Switch Assembly | 1 | $ 115.02 | ||
| 11 | 16250-94710 Oil Filter/Flow Sensor
SKU: 16250-94710 Weight: 0.080000 Brand: Price: $ 32.05 |
Oil Filter/Flow Sensor | 1 | $ 32.05 | ||
| 12 | 65281-95500 Oil Tank Grommet (NLA)
SKU: 65281-95500 Weight: 0.060000 Brand: Price: $ 6.60 |
Oil Tank Grommet (NLA) | 1 | $ 6.60 | ||
| 13 | 09329-18002 Cushion (NLA)
SKU: 09329-18002 Weight: 0.100000 Brand: Price: $ 1.42 |
Cushion (NLA) | 1 | $ 1.42 | ||
| 14-1 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | Tank to Sensor L:2000->100 1988 to 1990 | |
| 14-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Tank to Sensor L:600->100 1991 to 1994 | |
| 15-1 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | Sensor to Pump L:2000->65 1988 to 1990 | |
| 15-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Sensor to Pump L:600->65 1991 to 1994 | |
| 16 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 4 | $ 2.02 | ||
| 17 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | 1991 to 1994 | |
| 18-1 | 34701-92X50 Monitor Gauge Assembly (NLA)
SKU: 34701-92X50 Weight: 1.060000 Brand: Price: $ 239.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 239.95 | 1988 to 1992 | |
| 18-2 | 34700-92E11 Monitor Gauge Assembly (NLA)
SKU: 34700-92E11 Weight: 7.000000 Brand: Price: $ 229.95 |
Monitor Gauge Assembly (NLA) | 1 | $ 229.95 | 1993 to 1994 | |
| 19-1 | 36660-94610 Monitor Gauge Harness (21 ft) (NLA)
SKU: 36660-94610 Weight: 1.900000 Brand: Price: $ 102.41 |
Monitor Gauge Harness (21 ft) (NLA) | 1 | $ 102.41 | ||
| 19-2 | 36660-94690 Monitor Wiring Harness (NLA)
SKU: 36660-94690 Weight: 0.100000 Brand: Price: $ 55.72 |
Monitor Wiring Harness (NLA) | 1 | $ 55.72 | ||
| 19-3 | 36660-95610 Monitor Gauge Harness (21 ft)
SKU: 36660-95610 Weight: 0.100000 Brand: Price: $ 205.70 |
Monitor Gauge Harness (21 ft) | 1 | $ 205.70 | 1993 to 1994 | |
| 19-4 | 36660-92E90 Monitor Gauge Harness (6 ft) (NLA)
SKU: 36660-92E90 Weight: 0.100000 Brand: Price: $ 69.95 |
Monitor Gauge Harness (6 ft) (NLA) | 1 | $ 69.95 | Opt: 1993 to 1994 | |
| 20 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
