Suzuki DT 85 Parts Listings 1995 to 1997

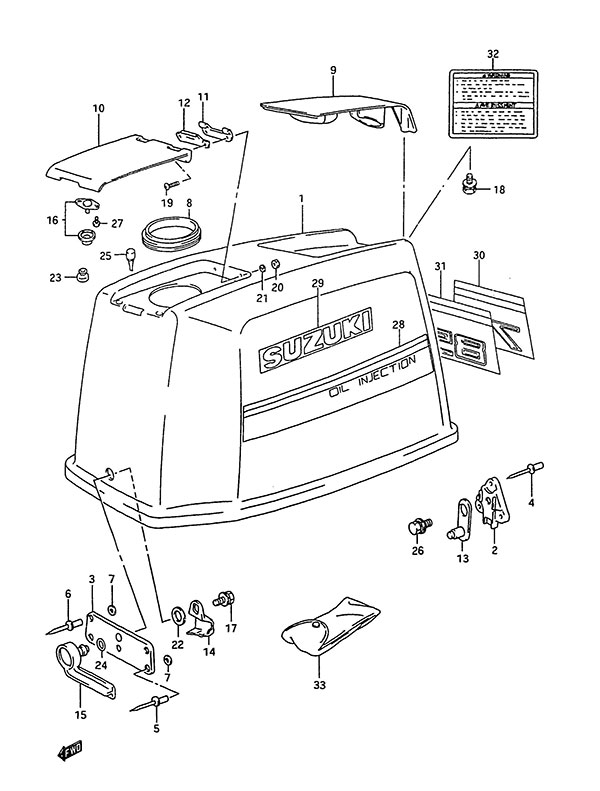

Fig. 30A - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61410-95800-0ED Engine Cover (NLA)
SKU: 61410-95800-0ED Weight: 30.000000 Brand: Price: $ 700.12 |
Engine Cover (NLA) | 1 | $ 700.12 | ||
| 2 | 61621-96303 Fastener Bracket (NLA)
SKU: 61621-96303 Weight: 0.060000 Brand: Price: $ 15.26 |
Fastener Bracket (NLA) | 1 | $ 15.26 | ||
| 3 | 61651-94701 Front Hook Holder (NLA)
SKU: 61651-94701 Weight: 0.100000 Brand: Price: $ 12.91 |
Front Hook Holder (NLA) | 1 | $ 12.91 | ||
| 4 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 3 | $ 2.82 | ||
| 5 | 09229-04026 Rivet (NLA)
SKU: 09229-04026 Weight: 0.100000 Brand: Price: $ 0.98 |
Rivet (NLA) | 3 | $ 0.98 | ||
| 6 | 09229-04027 Rivet (NLA)
SKU: 09229-04027 Weight: 0.100000 Brand: Price: $ 1.19 |
Rivet (NLA) | 2 | $ 1.19 | ||
| 7 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 5 | $ 1.85 | ||
| 8 | 61414-95501 Oil Filler Gasket (NLA)
SKU: 61414-95501 Weight: 0.060000 Brand: Price: $ 6.45 |
Oil Filler Gasket (NLA) | 1 | $ 6.45 | ||
| 9 | 61431-95501-0ED Tilt Up Handle (NLA)
SKU: 61431-95501-0ED Weight: 1.500000 Brand: Price: $ 64.74 |
Tilt Up Handle (NLA) | 1 | $ 64.74 | ||
| 10 | 61481-95522-0ED Oil Tank Filler Lid
SKU: 61481-95522-0ED Weight: 0.200000 Brand: Price: $ 37.83 |
Oil Tank Filler Lid | 1 | $ 37.83 | ||
| 11 | 61482-94510 Oil Filler Lid Hinge
SKU: 61482-94510 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 12 | 61485-95500 Oil Filler Lid Spring
SKU: 61485-95500 Weight: 0.060000 Brand: Price: $ 4.84 |
Oil Filler Lid Spring | 1 | $ 4.84 | ||
| 13 | 61610-94420 Fastener
SKU: 61610-94420 Weight: 0.080000 Brand: Price: $ 16.13 |
Fastener | 1 | $ 16.13 | ||
| 14 | 61641-94700 Front Hook (NLA)
SKU: 61641-94700 Weight: 0.100000 Brand: Price: $ 5.55 |
Front Hook (NLA) | 1 | $ 5.55 | ||
| 15 | 61645-94701-0ED Front Hook Lever (NLA)
SKU: 61645-94701-0ED Weight: 0.120000 Brand: Price: $ 25.71 |
Front Hook Lever (NLA) | 1 | $ 25.71 | ||
| 16 | 61670-94600 Oil Lid Striker Assy (NLA)
SKU: 61670-94600 Weight: 0.060000 Brand: Price: $ 3.87 |
Oil Lid Striker Assy (NLA) | 1 | $ 3.87 | ||
| 17 | 09118-06095 Bolt (6x12)
SKU: 09118-06095 Weight: 0.200000 Brand: Price: $ 4.31 |
Bolt (6x12) | 1 | $ 4.31 | ||
| 18 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 19-1 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | 1995 to 1996 | |
| 19-2 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | 1997 | |
| 20 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 21-1 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | 1995 to 1996 | |
| 21-2 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | 1997 | |
| 22 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 1 | $ 3.38 | ||
| 23 | 09250-12012 Cap (NLA)
SKU: 09250-12012 Weight: 0.060000 Brand: Price: $ 5.52 |
Cap (NLA) | 1 | $ 5.52 | 1995 | |
| 24 | 09280-13005 O-Ring
SKU: 09280-13005 Weight: 0.060000 Brand: Price: $ 1.86 |
O-Ring | 1 | $ 1.86 | ||
| 25 | 09321-05019 Cushion
SKU: 09321-05019 Weight: 0.060000 Brand: Price: $ 2.74 |
Cushion | 2 | $ 2.74 | ||
| 26 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 27 | 03241-0410A SCREW
SKU: 03241-0410A Weight: 0.060000 Brand: Price: $ 1.32 |
SCREW | 2 | $ 1.32 | ||
| 28 | 61440-96E10 Engine Cover Stripe Set (NLA)
SKU: 61440-96E10 Weight: 0.060000 Brand: Price: $ 24.72 |
Engine Cover Stripe Set (NLA) | 1 | $ 24.72 | ||
| 29 | 68111-42031-1RR Suzuki Mark
SKU: 68111-42031-1RR Weight: 0.100000 Brand: Price: $ 23.47 |
Suzuki Mark | 2 | $ 23.47 | ||
| 31 | 61435-95E40 Rear Emblem Mark (NLA)
SKU: 61435-95E40 Weight: 0.060000 Brand: Price: $ 19.63 |
Rear Emblem Mark (NLA) | 1 | $ 19.63 | ||
| 32 | 61581-98620 Engine Cover Label
SKU: 61581-98620 Weight: 0.060000 Brand: Price: $ 9.56 |
Engine Cover Label | 1 | $ 9.56 | ||
| 33 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
