Suzuki DT 85 Parts Listings 1988

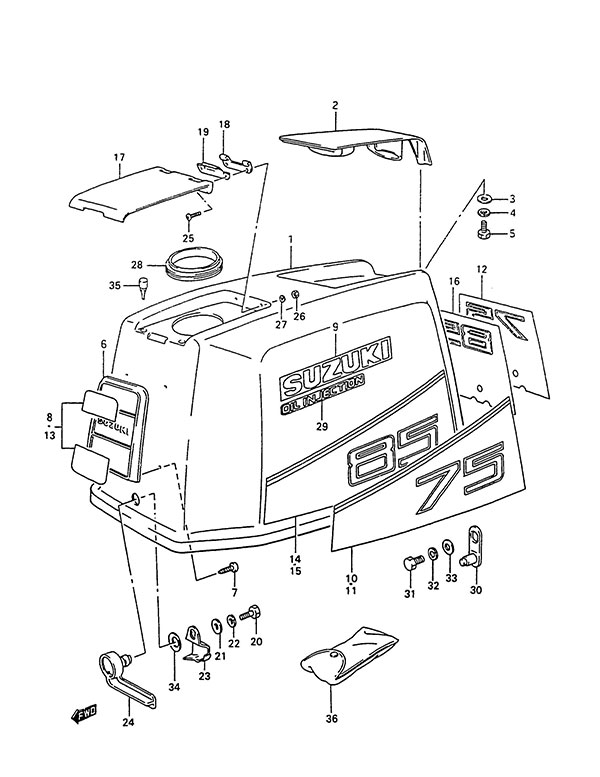

Fig. 28 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61410-95671-0ED Engine Cover (NLA)
SKU: 61410-95671-0ED Weight: 30.000000 Brand: Price: $ 590.42 |
Engine Cover (NLA) | 1 | $ 590.42 | ||
| 2 | 61431-95501-0ED Tilt Up Handle (NLA)
SKU: 61431-95501-0ED Weight: 1.500000 Brand: Price: $ 64.74 |
Tilt Up Handle (NLA) | 1 | $ 64.74 | ||
| 3 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 4 | $ 1.97 | ||
| 4 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 4 | $ 1.49 | ||
| 5 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 6 | 61421-94421-019 Front Emblem
SKU: 61421-94421-019 Weight: 0.200000 Brand: Price: $ 45.77 |
Front Emblem | 1 | $ 45.77 | ||
| 7 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 4 | $ 1.27 | ||
| 9 | 68112-43400-019 Suzuki Emblem
SKU: 68112-43400-019 Weight: 0.200000 Brand: Price: $ 12.45 |
Suzuki Emblem | 2 | $ 12.45 | ||
| 13-1 | 61422-95570-8EF Front Emblem Mark (NLA)
SKU: 61422-95570-8EF Weight: 0.060000 Brand: Price: $ 4.65 |
Front Emblem Mark (NLA) | 1 | $ 4.65 | For Silver | |
| 13-2 | 61422-95570-26M Front Emblem Mark (NLA)
SKU: 61422-95570-26M Weight: 0.100000 Brand: Price: $ 4.96 |
Front Emblem Mark (NLA) | 1 | $ 4.96 | For White | |
| 14-1 | 61443-95650-70G Starboard Engine Cover Decal (NLA)
SKU: 61443-95650-70G Weight: 0.100000 Brand: Price: $ 27.23 |
Starboard Engine Cover Decal (NLA) | 1 | $ 27.23 | For Silver | |
| 14-2 | 61443-95650-8EH Starboard Engine Cover Decal (NLA)
SKU: 61443-95650-8EH Weight: 0.100000 Brand: Price: $ 28.31 |
Starboard Engine Cover Decal (NLA) | 1 | $ 28.31 | For White | |
| 15-1 | 61453-95650-70G Port Engine Cover Decal (NLA)
SKU: 61453-95650-70G Weight: 0.100000 Brand: Price: $ 27.23 |
Port Engine Cover Decal (NLA) | 1 | $ 27.23 | For Silver | |
| 15-2 | 61453-95650-8EH Port Engine Cover Decal (NLA)
SKU: 61453-95650-8EH Weight: 0.100000 Brand: Price: $ 26.04 |
Port Engine Cover Decal (NLA) | 1 | $ 26.04 | For White | |
| 16-1 | 61435-95E00-70G Rear Emblem Mark (NLA)
SKU: 61435-95E00-70G Weight: 0.100000 Brand: Price: $ 13.18 |
Rear Emblem Mark (NLA) | 1 | $ 13.18 | For Silver | |
| 16-2 | 61435-95E00-8EH Rear Emblem Mark (NLA)
SKU: 61435-95E00-8EH Weight: 0.100000 Brand: Price: $ 12.27 |
Rear Emblem Mark (NLA) | 1 | $ 12.27 | For White | |
| 17 | 61481-95522-0ED Oil Tank Filler Lid
SKU: 61481-95522-0ED Weight: 0.200000 Brand: Price: $ 37.83 |
Oil Tank Filler Lid | 1 | $ 37.83 | ||
| 18 | 61482-94510 Oil Filler Lid Hinge
SKU: 61482-94510 Weight: 0.060000 Brand: Price: $ 4.67 |
Oil Filler Lid Hinge | 1 | $ 4.67 | ||
| 19 | 61485-95500 Oil Filler Lid Spring
SKU: 61485-95500 Weight: 0.060000 Brand: Price: $ 4.84 |
Oil Filler Lid Spring | 1 | $ 4.84 | ||
| 20 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 1 | $ 2.10 | ||
| 21 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 1 | $ 1.97 | ||
| 22 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | ||
| 23 | 61641-94700 Front Hook (NLA)
SKU: 61641-94700 Weight: 0.100000 Brand: Price: $ 5.55 |
Front Hook (NLA) | 1 | $ 5.55 | ||
| 24 | 61645-94701-0ED Front Hook Lever (NLA)
SKU: 61645-94701-0ED Weight: 0.120000 Brand: Price: $ 25.71 |
Front Hook Lever (NLA) | 1 | $ 25.71 | ||
| 25 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 26 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 27 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
| 28 | 61414-95501 Oil Filler Gasket (NLA)
SKU: 61414-95501 Weight: 0.060000 Brand: Price: $ 6.45 |
Oil Filler Gasket (NLA) | 1 | $ 6.45 | ||
| 29 | 61442-94600-019 Oil Injection Mark (NLA)
SKU: 61442-94600-019 Weight: 0.062500 Brand: Price: $ 4.27 |
Oil Injection Mark (NLA) | 2 | $ 4.27 | ||
| 30 | 61610-94420 Fastener
SKU: 61610-94420 Weight: 0.080000 Brand: Price: $ 16.13 |
Fastener | 1 | $ 16.13 | ||
| 31 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 32 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 33 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 1 | $ 1.85 | ||
| 34 | 09164-13005 Wave Washer
SKU: 09164-13005 Weight: 0.060000 Brand: Price: $ 3.38 |
Wave Washer | 1 | $ 3.38 | ||
| 35 | 09321-05019 Cushion
SKU: 09321-05019 Weight: 0.060000 Brand: Price: $ 2.74 |
Cushion | 2 | $ 2.74 | ||
| 36 | 09800-01016 Tool Set
SKU: 09800-01016 Weight: 0.600000 Brand: Price: $ 20.72 |
Tool Set | 1 | $ 20.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
