Suzuki DT 85 Parts Listings 1988 to 2000

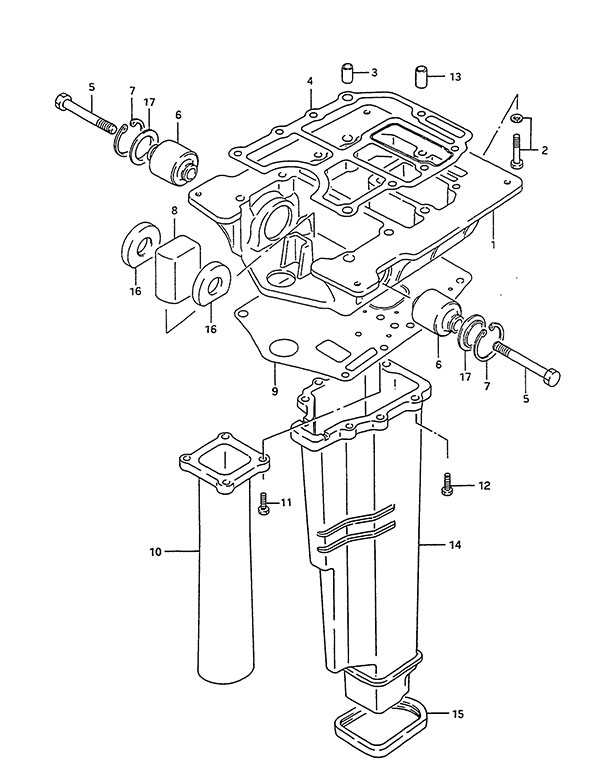

Fig. 23 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 51111-95602-0ED Engine Holder (NLA)
SKU: 51111-95602-0ED Weight: 10.000000 Brand: Price: $ 300.34 |
Engine Holder (NLA) | 1 | $ 300.34 | ||
| 2 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 2 | $ 6.05 | ||
| 3 | 09206-11004 Pin (11x14)
SKU: 09206-11004 Weight: 0.200000 Brand: Price: $ 5.45 |
Pin (11x14) | 2 | $ 5.45 | ||
| 4 | 51211-95630 Engine Holder Gasket (NLA)
SKU: 51211-95630 Weight: 0.160000 Brand: Price: $ 33.82 |
Engine Holder Gasket (NLA) | 1 | $ 33.82 | ||
| 5 | 09100-12052 Bolt (12x70)
SKU: 09100-12052 Weight: 0.160000 Brand: Price: $ 11.80 |
Bolt (12x70) | 2 | $ 11.80 | ||
| 6-1 | 54130-95620 Upper Mount (NLA)
SKU: 54130-95620 Weight: 0.500000 Brand: Price: $ 32.97 |
Upper Mount (NLA) | 2 | $ 32.97 | ||
| 6-2 | 54130-95611 Upper Mount (NLA)
SKU: 54130-95611 Weight: 1.000000 Brand: Price: $ 33.05 |
Upper Mount (NLA) | 2 | $ 33.05 | Opt: Hard Type | |
| 7 | 09381-38002 Circlip (NLA)
SKU: 09381-38002 Weight: 0.100000 Brand: Price: $ 3.66 |
Circlip (NLA) | 2 | $ 3.66 | ||
| 8 | 54135-95200 Upper Thrust Mount (NLA)
SKU: 54135-95200 Weight: 0.100000 Brand: Price: $ 7.86 |
Upper Thrust Mount (NLA) | 1 | $ 7.86 | ||
| 9 | 52113-95630 Drive Shaft Housing Gasket
SKU: 52113-95630 Weight: 0.500000 Brand: Price: $ 54.23 |
Drive Shaft Housing Gasket | 1 | $ 54.23 | ||
| 10 | 14211-95602 Exhaust Tube
SKU: 14211-95602 Weight: 3.000000 Brand: Price: $ 113.53 |
Exhaust Tube | 1 | $ 113.53 | ||
| 11 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 4 | $ 3.08 | ||
| 12 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 7 | $ 3.08 | ||
| 13 | 09206-11017 Pin (11x20)
SKU: 09206-11017 Weight: 0.200000 Brand: Price: $ 5.46 |
Pin (11x20) | 1 | $ 5.46 | ||
| 14 | 52311-94701 Exhaust Tube Housing (L) (NLA)
SKU: 52311-94701 Weight: 5.000000 Brand: Price: $ 231.57 |
Exhaust Tube Housing (L) (NLA) | 1 | $ 231.57 | ||
| 15 | 52332-94711 Exhaust Tube Seal
SKU: 52332-94711 Weight: 0.200000 Brand: Price: $ 10.35 |
Exhaust Tube Seal | 1 | $ 10.35 | ||
| 16 | 54140-95270 Upper Mount Stopper (NLA)
SKU: 54140-95270 Weight: 0.100000 Brand: Price: $ 6.99 |
Upper Mount Stopper (NLA) | 2 | $ 6.99 | ||
| 17 | 54411-95600 Upper Mount Washer (NLA)
SKU: 54411-95600 Weight: 0.100000 Brand: Price: $ 2.39 |
Upper Mount Washer (NLA) | 2 | $ 2.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
