Suzuki DT 85 Parts Listings 1988 to 1994

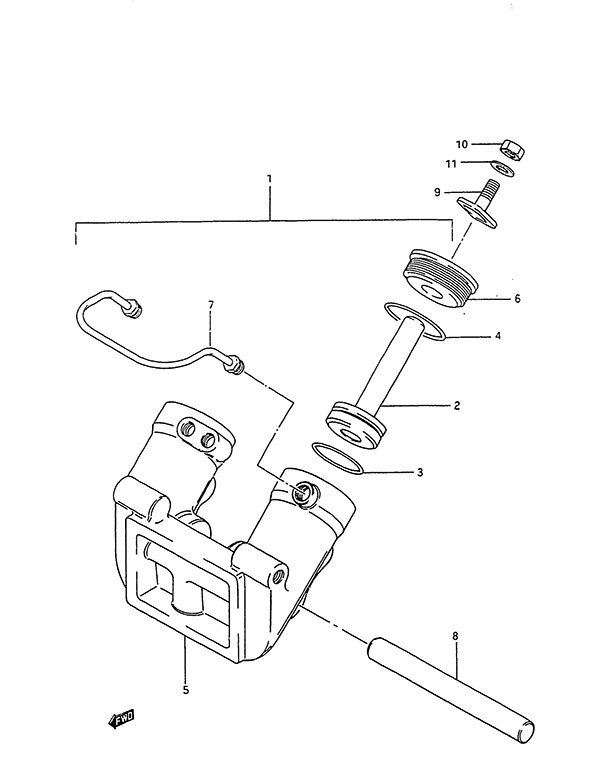

Fig. 22 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48600-94511-0ED Trim Cylinder Assembly (NLA)
SKU: 48600-94511-0ED Weight: 10.000000 Brand: Price: $ 689.87 |
Trim Cylinder Assembly (NLA) | 1 | $ 689.87 | ||
| 2 | 48601-94501 Piston & Piston Rod Assembly (NLA)
SKU: 48601-94501 Weight: 0.100000 Brand: Price: $ 71.26 |
Piston & Piston Rod Assembly (NLA) | 2 | $ 71.26 | ||
| 3 | 48627-94500 Trim Piston O-Ring
SKU: 48627-94500 Weight: 0.060000 Brand: Price: $ 3.77 |
Trim Piston O-Ring | 4 | $ 3.77 | ||
| 4 | 48633-94500 Trim Cylinder O-Ring
SKU: 48633-94500 Weight: 0.060000 Brand: Price: $ 3.68 |
Trim Cylinder O-Ring | 4 | $ 3.68 | ||
| 5 | 48641-94510 Trim Cylinder (NLA)
SKU: 48641-94510 Weight: 0.100000 Brand: Price: $ 465.98 |
Trim Cylinder (NLA) | 1 | $ 465.98 | ||
| 6 | 48630-94500 Trim Cylinder Head
SKU: 48630-94500 Weight: 0.200000 Brand: Price: $ 67.26 |
Trim Cylinder Head | 2 | $ 67.26 | ||
| 7 | 48760-94501 Trim Cylinder Outlet Tube (NLA)
SKU: 48760-94501 Weight: 1.000000 Brand: Price: $ 18.62 |
Trim Cylinder Outlet Tube (NLA) | 1 | $ 18.62 | ||
| 8 | 48121-94510 Tilt Cylinder Lower Shaft (NLA)
SKU: 48121-94510 Weight: 0.100000 Brand: Price: $ 14.25 |
Tilt Cylinder Lower Shaft (NLA) | 1 | $ 14.25 | ||
| 9 | 48311-94501 Trim Cylinder Ram Pad
SKU: 48311-94501 Weight: 0.200000 Brand: Price: $ 49.72 |
Trim Cylinder Ram Pad | 2 | $ 49.72 | ||
| 10 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 11 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
