Suzuki DT 85 Parts Listings 1995 to 2000

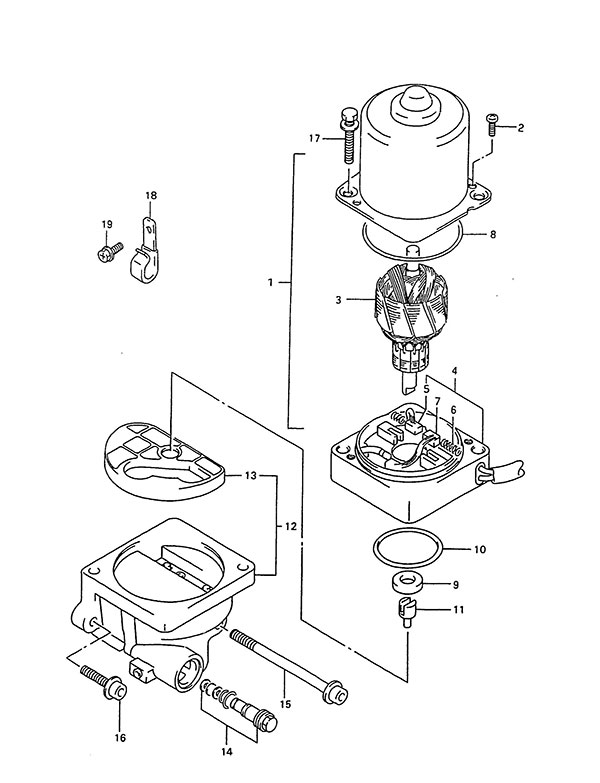

Fig. 20A - Power Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-95E01-0ED PTT Motor Assembly
SKU: 38100-95E01-0ED Weight: 5.000000 Brand: Price: $ 793.12 |
PTT Motor Assembly | 1 | $ 793.12 | ||
| 2 | 31111-87D60 Screw
SKU: 31111-87D60 Weight: 0.060000 Brand: Price: $ 3.60 |
Screw | 2 | $ 3.60 | ||
| 3 | 31311-95E00 Armature (NLA)
SKU: 31311-95E00 Weight: 0.100000 Brand: Price: $ 269.41 |
Armature (NLA) | 1 | $ 269.41 | ||
| 4 | 31173-95E01 Brush Holder Assembly
SKU: 31173-95E01 Weight: 2.000000 Brand: Price: $ 359.76 |
Brush Holder Assembly | 1 | $ 359.76 | ||
| 5 | 31133-95E00 Brush
SKU: 31133-95E00 Weight: 0.060000 Brand: Price: $ 12.25 |
Brush | 1 | $ 12.25 | ||
| 6 | 31135-97E00 Spring
SKU: 31135-97E00 Weight: 0.060000 Brand: Price: $ 4.64 |
Spring | 2 | $ 4.64 | ||
| 7 | 31136-94900 Breaker (NLA)
SKU: 31136-94900 Weight: 0.060000 Brand: Price: $ 64.19 |
Breaker (NLA) | 1 | $ 64.19 | ||
| 8 | 31123-87D60 O-Ring
SKU: 31123-87D60 Weight: 0.060000 Brand: Price: $ 12.85 |
O-Ring | 1 | $ 12.85 | ||
| 9 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 23.27 |
Oil Seal | 1 | $ 23.27 | ||
| 10 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 | ||
| 11 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 12 | 48502-95E00 PTT Pump Assembly
SKU: 48502-95E00 Weight: 2.000000 Brand: Price: $ 472.69 |
PTT Pump Assembly | 1 | $ 472.69 | ||
| 13 | 48582-95E01 Filter
SKU: 48582-95E01 Weight: 0.060000 Brand: Price: $ 38.93 |
Filter | 1 | $ 38.93 | ||
| 14 | 48864-95E00 Manual Valve Set
SKU: 48864-95E00 Weight: 0.250000 Brand: Price: $ 135.83 |
Manual Valve Set | 1 | $ 135.83 | ||
| 15 | 48862-95E00 Bolt
SKU: 48862-95E00 Weight: 0.100000 Brand: Price: $ 11.40 |
Bolt | 1 | $ 11.40 | ||
| 16 | 48862-95E10 Bolt
SKU: 48862-95E10 Weight: 0.060000 Brand: Price: $ 13.20 |
Bolt | 2 | $ 13.20 | ||
| 17 | 31281-95E00 Through Bolt
SKU: 31281-95E00 Weight: 0.060000 Brand: Price: $ 8.95 |
Through Bolt | 2 | $ 8.95 | ||
| 18 | 09403-17304 Clamp
SKU: 09403-17304 Weight: 0.100000 Brand: Price: $ 3.11 |
Clamp | 1 | $ 3.11 | ||
| 19 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
