Suzuki DT 85 Parts Listings 1988 to 1994

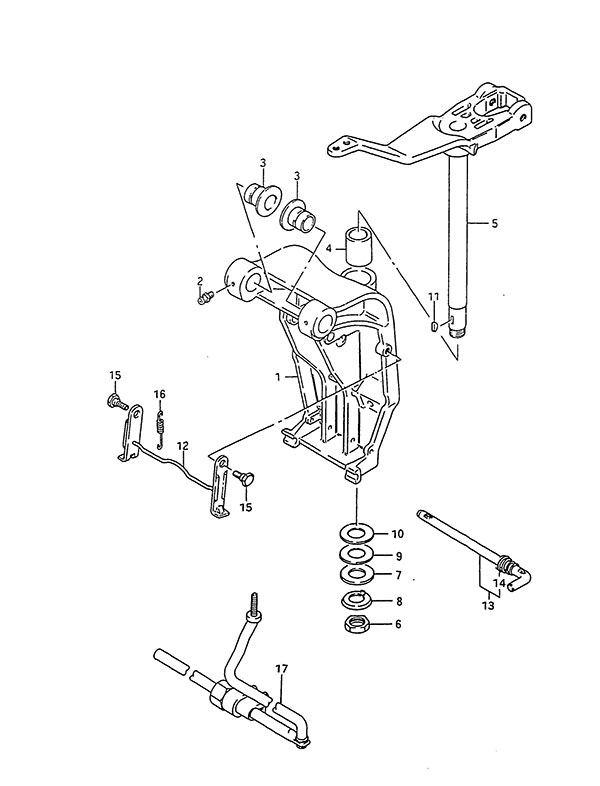

Fig. 18 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-95530-0ED Swivel Bracket
SKU: 43111-95530-0ED Weight: 10.000000 Brand: Price: $ 491.19 |
Swivel Bracket | 1 | $ 491.19 | ||
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 3 | 43211-95510 Bushing (NLA)
SKU: 43211-95510 Weight: 0.060000 Brand: Price: $ 7.24 |
Bushing (NLA) | 2 | $ 7.24 | ||
| 4 | 43711-95500 Bushing (NLA)
SKU: 43711-95500 Weight: 0.100000 Brand: Price: $ 8.86 |
Bushing (NLA) | 2 | $ 8.86 | ||
| 5 | 43750-95604-0ED Steering Bracket (NLA)
SKU: 43750-95604-0ED Weight: 10.000000 Brand: Price: $ 225.01 |
Steering Bracket (NLA) | 1 | $ 225.01 | ||
| 6 | 09140-24010 Nut
SKU: 09140-24010 Weight: 0.100000 Brand: Price: $ 4.50 |
Nut | 1 | $ 4.50 | ||
| 7 | 09160-25052 Washer (NLA)
SKU: 09160-25052 Weight: 0.100000 Brand: Price: $ 2.21 |
Washer (NLA) | 1 | $ 2.21 | ||
| 8 | 09166-25007 Washer (NLA)
SKU: 09166-25007 Weight: 0.100000 Brand: Price: $ 1.01 |
Washer (NLA) | 1 | $ 1.01 | ||
| 9 | 09181-26006 Shim (0.3) (NLA)
SKU: 09181-26006 Weight: 0.100000 Brand: Price: $ 2.03 |
Shim (0.3) (NLA) | 1 | $ 2.03 | ||
| 11 | 09420-05003 Key (NLA)
SKU: 09420-05003 Weight: 0.100000 Brand: Price: $ 2.00 |
Key (NLA) | 1 | $ 2.00 | ||
| 12 | 41220-95501-0ED Tilt Lock Lever (NLA)
SKU: 41220-95501-0ED Weight: 0.500000 Brand: Price: $ 23.82 |
Tilt Lock Lever (NLA) | 1 | $ 23.82 | ||
| 13 | 45420-95500 Tilt Lock Pin
SKU: 45420-95500 Weight: 0.250000 Brand: Price: $ 35.98 |
Tilt Lock Pin | 1 | $ 35.98 | ||
| 14 | 09441-24002 Spring (NLA)
SKU: 09441-24002 Weight: 0.100000 Brand: Price: $ 1.96 |
Spring (NLA) | 1 | $ 1.96 | ||
| 15-1 | 09111-10049 Bolt (10x24.8) (NLA)
SKU: 09111-10049 Weight: 0.100000 Brand: Price: $ 3.72 |
Bolt (10x24.8) (NLA) | 1 | $ 3.72 | 1988 to 1990 | |
| 15-2 | 09111-10045 Bolt (10x20.8) (NLA)
SKU: 09111-10045 Weight: 0.100000 Brand: Price: $ 3.66 |
Bolt (10x20.8) (NLA) | 1 | $ 3.66 | 1991 to 1994 | |
| 16 | 09443-10029 Tilt Lock Lever Spring (NLA)
SKU: 09443-10029 Weight: 0.100000 Brand: Price: $ 2.44 |
Tilt Lock Lever Spring (NLA) | 1 | $ 2.44 | ||
| 17 | 43770-99E03 Steering Tensioner Assembly
SKU: 43770-99E03 Weight: 5.000000 Brand: Price: $ 513.86 |
Steering Tensioner Assembly | 1 | $ 513.86 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
