Suzuki DT 85 Parts Listings 1988 to 2000

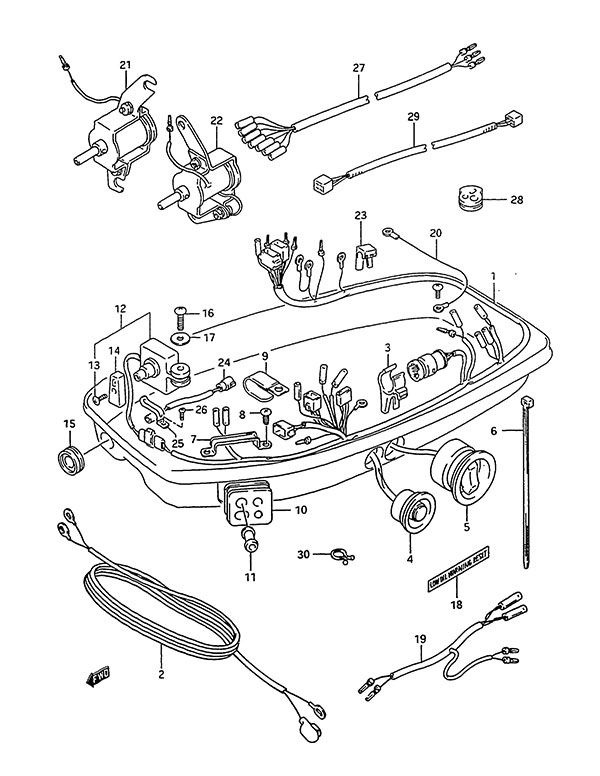

Fig. 16 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 36610-95601 Wiring Harness Assembly (NLA)
SKU: 36610-95601 Weight: 5.000000 Brand: Price: $ 141.83 |
Wiring Harness Assembly (NLA) | 1 | $ 141.83 | 1988 to 1992 | |
| 1-2 | 36610-95610 Wiring Harness Assembly (NLA)
SKU: 36610-95610 Weight: 5.000000 Brand: Price: $ 200.39 |
Wiring Harness Assembly (NLA) | 1 | $ 200.39 | 1993 to 2000 | |
| 2 | 33810-95602 Starter Motor Cable
SKU: 33810-95602 Weight: 5.000000 Brand: Price: $ 101.74 |
Starter Motor Cable | 1 | $ 101.74 | ||
| 3 | 36616-95301 Connector Holder
SKU: 36616-95301 Weight: 0.100000 Brand: Price: $ 6.21 |
Connector Holder | 1 | $ 6.21 | ||
| 4 | 37930-95612 Oil Warning Reset Switch Assembly
SKU: 37930-95612 Weight: 0.200000 Brand: Price: $ 36.86 |
Oil Warning Reset Switch Assembly | 1 | $ 36.86 | ||
| 5 | 37850-95612 PTT Switch Assembly
SKU: 37850-95612 Weight: 0.120000 Brand: Price: $ 104.20 |
PTT Switch Assembly | 1 | $ 104.20 | ||
| 6-1 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 6-2 | 09407-12402 Clamp
SKU: 09407-12402 Weight: 0.100000 Brand: Price: $ 3.09 |
Clamp | 1 | $ 3.09 | ||
| 7 | 36659-95501 Clamp (NLA)
SKU: 36659-95501 Weight: 0.060000 Brand: Price: $ 3.85 |
Clamp (NLA) | 1 | $ 3.85 | ||
| 8 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 2 | $ 2.06 | ||
| 9 | 09403-17303 Clamp (NLA)
SKU: 09403-17303 Weight: 0.100000 Brand: Price: $ 2.29 |
Clamp (NLA) | 1 | $ 2.29 | ||
| 10 | 36656-94701 Cable Grommet
SKU: 36656-94701 Weight: 0.125000 Brand: Price: $ 9.53 |
Cable Grommet | 1 | $ 9.53 | ||
| 11 | 36664-95600 Indicator Wire Grommet (NLA)
SKU: 36664-95600 Weight: 0.100000 Brand: Price: $ 2.40 |
Indicator Wire Grommet (NLA) | 1 | $ 2.40 | ||
| 14 | 37921-95D00 Knob (NLA)
SKU: 37921-95D00 Weight: 0.100000 Brand: Price: $ 4.82 |
Knob (NLA) | 1 | $ 4.82 | 1989 to 1990 | |
| 12-1 | 37920-95D00 Ignition Timing Switch Assembly (NLA)
SKU: 37920-95D00 Weight: 0.140000 Brand: Price: $ 78.43 |
Ignition Timing Switch Assembly (NLA) | 1 | $ 78.43 | 1988 | |
| 12-2 | 37920-95500 Ignition Timing Switch Assembly (NLA)
SKU: 37920-95500 Weight: 0.100000 Brand: Price: $ 53.66 |
Ignition Timing Switch Assembly (NLA) | 1 | $ 53.66 | 1989 to 1990 | |
| 13 | 02112-0408A SCREW
SKU: 02112-0408A Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW | 1 | $ 1.11 | 1989 to 1990 | |
| 15 | 37925-95D00 Ignition Timing Switch Cushion (NLA)
SKU: 37925-95D00 Weight: 0.100000 Brand: Price: $ 2.47 |
Ignition Timing Switch Cushion (NLA) | 1 | $ 2.47 | 1989 to 1990 | |
| 16 | 03112-05203 Screw (NLA)
SKU: 03112-05203 Weight: 0.100000 Brand: Price: $ 0.98 |
Screw (NLA) | 1 | $ 0.98 | 1989 to 1990 | |
| 17 | 09160-05043 Washer (5.5x16x1.2)
SKU: 09160-05043 Weight: 0.100000 Brand: Price: $ 0.00 |
Washer (5.5x16x1.2) | 1 | $ 0.00 | 1989 to 1990 | |
| 18 | 37935-95602 Low Oil Warning Reset Label (NLA)
SKU: 37935-95602 Weight: 0.062500 Brand: Price: $ 1.83 |
Low Oil Warning Reset Label (NLA) | 1 | $ 1.83 | ||
| 19 | 36645-94712 Relay Control Lead (NLA)
SKU: 36645-94712 Weight: 0.100000 Brand: Price: $ 8.06 |
Relay Control Lead (NLA) | 1 | $ 8.06 | ||
| 20 | 36895-94700 Lead (NLA)
SKU: 36895-94700 Weight: 0.100000 Brand: Price: $ 2.32 |
Lead (NLA) | 1 | $ 2.32 | ||
| 22 | 38600-95555 Choke Solenoid Assembly (NLA)
SKU: 38600-95555 Weight: 0.820000 Brand: Price: $ 115.02 |
Choke Solenoid Assembly (NLA) | 1 | $ 115.02 | ||
| 23 | 36641-95500 Wiring Harness Stopper (NLA)
SKU: 36641-95500 Weight: 0.100000 Brand: Price: $ 1.21 |
Wiring Harness Stopper (NLA) | 3 | $ 1.21 | ||
| 24 | 37940-94701 Ignition Timing Resistor (NLA)
SKU: 37940-94701 Weight: 0.060000 Brand: Price: $ 23.41 |
Ignition Timing Resistor (NLA) | 1 | $ 23.41 | 1991 to 1994 | |
| 25 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 3 | $ 1.86 | ||
| 26-1 | 03241-0510A SCREW
SKU: 03241-0510A Weight: 0.200000 Brand: Price: $ 1.27 |
SCREW | 1 | $ 1.27 | 1988 to 1993 | |
| 26-2 | 03212-0512B SCREW
SKU: 03212-0512B Weight: 0.060000 Brand: Price: $ 2.62 |
SCREW | 1 | $ 2.62 | 1994 to 2000 | |
| 27 | 36630-92E00 Instrument Wire Assembly
SKU: 36630-92E00 Weight: 0.260000 Brand: Price: $ 67.69 |
Instrument Wire Assembly | 1 | $ 67.69 | 1993 to 2000 | |
| 28 | 36658-95600 Cable Grommet (NLA)
SKU: 36658-95600 Weight: 0.100000 Brand: Price: $ 5.94 |
Cable Grommet (NLA) | 1 | $ 5.94 | ||
| 29 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | ||
| 30-1 | 09408-00021 Clamp (NLA)
SKU: 09408-00021 Weight: 0.100000 Brand: Price: $ 0.85 |
Clamp (NLA) | 1 | $ 0.85 | Reset Switch Terminal | |
| 30-2 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | PTT Switch Terminal |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
