Suzuki DT 85 Parts Listings 1988 to 2000

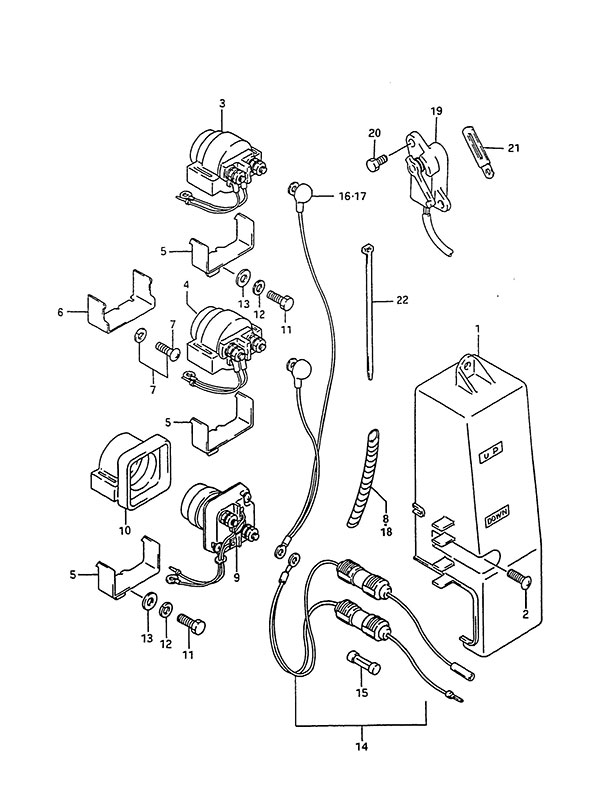

Fig. 15 - Relay
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31810-95600 Motor Relay Cover (NLA)
SKU: 31810-95600 Weight: 0.100000 Brand: Price: $ 13.49 |
Motor Relay Cover (NLA) | 1 | $ 13.49 | ||
| 2 | 02112-06167 SCREW 6X16
SKU: 02112-06167 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW 6X16 | 2 | $ 1.44 | ||
| 3-1 | 38410-94540 PTT Relay Assembly (NLA)
SKU: 38410-94540 Weight: 0.380000 Brand: Price: $ 131.56 |
PTT Relay Assembly (NLA) | 1 | $ 131.56 | 1988 to 1989 | |
| 3-2 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 1 | $ 140.10 | 1990 to 2000 | |
| 4-1 | 38410-94540 PTT Relay Assembly (NLA)
SKU: 38410-94540 Weight: 0.380000 Brand: Price: $ 131.56 |
PTT Relay Assembly (NLA) | 1 | $ 131.56 | 1988 to 1989 | |
| 4-2 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 1 | $ 140.10 | 1990 to 2000 | |
| 5-1 | 38412-94500 PTT Bracket (NLA)
SKU: 38412-94500 Weight: 0.100000 Brand: Price: $ 3.06 |
PTT Bracket (NLA) | 3 | $ 3.06 | S/N 011537 Older | |
| 5-2 | 38412-94500 PTT Bracket (NLA)
SKU: 38412-94500 Weight: 0.100000 Brand: Price: $ 3.06 |
PTT Bracket (NLA) | 2 | $ 3.06 | S/N 011538 Newer | |
| 5-3 | 38412-94500 PTT Bracket (NLA)
SKU: 38412-94500 Weight: 0.100000 Brand: Price: $ 3.06 |
PTT Bracket (NLA) | 1 | $ 3.06 | 1995 to 2000 | |
| 6-1 | 38412-94700 Relay Bracket (NLA)
SKU: 38412-94700 Weight: 0.100000 Brand: Price: $ 4.18 |
Relay Bracket (NLA) | 1 | $ 4.18 | S/N 011538 Newer | |
| 6-2 | 38412-94700 Relay Bracket (NLA)
SKU: 38412-94700 Weight: 0.100000 Brand: Price: $ 4.18 |
Relay Bracket (NLA) | 2 | $ 4.18 | 1995 to 2000 | |
| 7 | 02112-36167 SCREW
SKU: 02112-36167 Weight: 0.060000 Brand: Price: $ 2.34 |
SCREW | 3 | $ 2.34 | S/N 011538 Newer | |
| 8 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 9 | 31800-94401 Starter Relay
SKU: 31800-94401 Weight: 0.340000 Brand: Price: $ 140.18 |
Starter Relay | 1 | $ 140.18 | ||
| 10 | 38422-94520 Relay Damper (NLA)
SKU: 38422-94520 Weight: 0.250000 Brand: Price: $ 11.22 |
Relay Damper (NLA) | 1 | $ 11.22 | ||
| 11 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 12 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 13 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | ||
| 14 | 36740-94771 Fuse Case Assembly (NLA)
SKU: 36740-94771 Weight: 0.100000 Brand: Price: $ 25.52 |
Fuse Case Assembly (NLA) | 1 | $ 25.52 | ||
| 15 | 09481-25001 25 Amp Fuse
SKU: 09481-25001 Weight: 0.060000 Brand: Price: $ 2.06 |
25 Amp Fuse | 1 | $ 2.06 | ||
| 16 | 33831-95600 PTT Relay Cable (NLA)
SKU: 33831-95600 Weight: 0.100000 Brand: Price: $ 6.40 |
PTT Relay Cable (NLA) | 1 | $ 6.40 | ||
| 17 | 33832-95601 PTT Relay Ground Cable (NLA)
SKU: 33832-95601 Weight: 0.100000 Brand: Price: $ 9.32 |
PTT Relay Ground Cable (NLA) | 1 | $ 9.32 | ||
| 19-1 | 34801-94700 Trim Sender (NLA)
SKU: 34801-94700 Weight: 0.100000 Brand: Price: $ 130.94 |
Trim Sender (NLA) | 1 | $ 130.94 | ||
| 19-2 | 34801-94710 Trim Sender
SKU: 34801-94710 Weight: 1.000000 Brand: Price: $ 284.37 |
Trim Sender | 1 | $ 284.37 | Opt: 1995 to 2000 | |
| 20 | 09100-06113 Bolt (6x16)
SKU: 09100-06113 Weight: 0.200000 Brand: Price: $ 1.93 |
Bolt (6x16) | 2 | $ 1.93 | ||
| 21 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 22-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 22-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 5 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
