Suzuki DT 85 Parts Listings 1988 to 2000

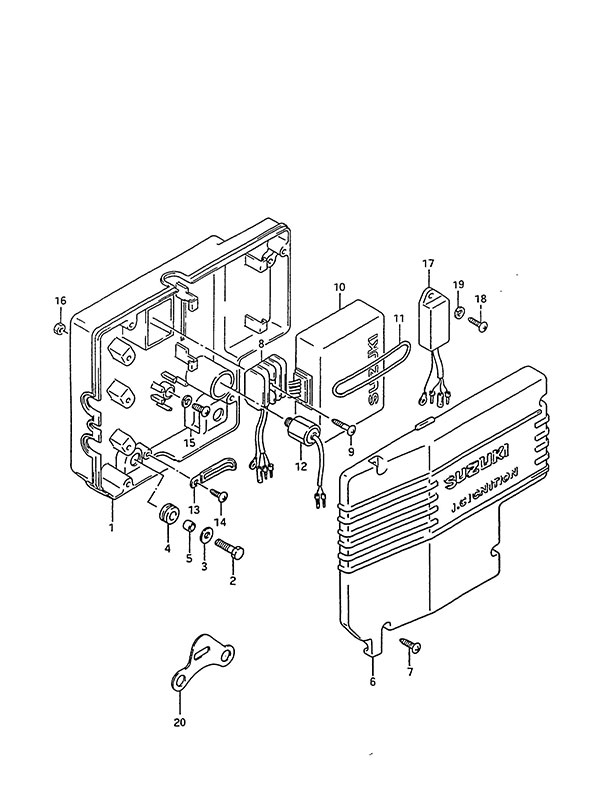

Fig. 14 - Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32890-95611 Electric Parts Holder (NLA)
SKU: 32890-95611 Weight: 0.100000 Brand: Price: $ 29.45 |
Electric Parts Holder (NLA) | 1 | $ 29.45 | ||
| 2 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 3 | 09160-06052 Washer
SKU: 09160-06052 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer | 4 | $ 1.44 | ||
| 4 | 09320-08001 Cushion
SKU: 09320-08001 Weight: 0.060000 Brand: Price: $ 2.95 |
Cushion | 4 | $ 2.95 | ||
| 5 | 09180-06248 Spacer
SKU: 09180-06248 Weight: 0.060000 Brand: Price: $ 2.12 |
Spacer | 4 | $ 2.12 | ||
| 6 | 32891-95601 Electric Parts Holder Cover (NLA)
SKU: 32891-95601 Weight: 0.100000 Brand: Price: $ 35.73 |
Electric Parts Holder Cover (NLA) | 1 | $ 35.73 | ||
| 7 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 4 | $ 2.49 | ||
| 8-1 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | 1988 to 1990 | |
| 8-2 | 32800-95D10 Rectifier & Regulator Assembly (NLA)
SKU: 32800-95D10 Weight: 0.200000 Brand: Price: $ 124.48 |
Rectifier & Regulator Assembly (NLA) | 1 | $ 124.48 | 1991 to 1993 | |
| 8-3 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | 1994 to 2000 | |
| 9-1 | 03212-05253 Screw (NLA)
SKU: 03212-05253 Weight: 0.060000 Brand: Price: $ 1.60 |
Screw (NLA) | 1 | $ 1.60 | 1988 to 1990 | |
| 9-2 | 03241-06303 Screw (NLA)
SKU: 03241-06303 Weight: 0.100000 Brand: Price: $ 0.82 |
Screw (NLA) | 1 | $ 0.82 | 1991 to 1993 | |
| 9-3 | 03242-05253 Screw (NLA)
SKU: 03242-05253 Weight: 0.100000 Brand: Price: $ 1.17 |
Screw (NLA) | 1 | $ 1.17 | 1994 to 2000 | |
| 10-1 | 32900-95601 CDI Unit Assembly (NLA)
SKU: 32900-95601 Weight: 5.000000 Brand: Price: $ 1,170.16 |
CDI Unit Assembly (NLA) | 1 | $ 1,170.16 | 1988 | |
| 10-2 | 32900-95630 CDI Unit Assembly
SKU: 32900-95630 Weight: 1.300000 Brand: Price: $ 1,196.46 |
CDI Unit Assembly | 1 | $ 1,196.46 | 1989 to 2000 | |
| 11 | 09280-70005 O-Ring
SKU: 09280-70005 Weight: 0.060000 Brand: Price: $ 6.34 |
O-Ring | 2 | $ 6.34 | ||
| 12-1 | 34820-95D00 Engine Temp Sensor (NLA)
SKU: 34820-95D00 Weight: 0.100000 Brand: Price: $ 66.14 |
Engine Temp Sensor (NLA) | 1 | $ 66.14 | 1988 | |
| 12-2 | 34820-94600 Engine Temp Sensor (NLA)
SKU: 34820-94600 Weight: 0.060000 Brand: Price: $ 113.27 |
Engine Temp Sensor (NLA) | 1 | $ 113.27 | 1989 | |
| 13 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 14 | 03212-0512B SCREW
SKU: 03212-0512B Weight: 0.060000 Brand: Price: $ 2.62 |
SCREW | 1 | $ 2.62 | ||
| 15 | 02112-36207 Screw (NLA)
SKU: 02112-36207 Weight: 0.060000 Brand: Price: $ 1.35 |
Screw (NLA) | 1 | $ 1.35 | ||
| 16 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 17 | 34250-87D11 Tachometer Control Unit (NLA)
SKU: 34250-87D11 Weight: 0.100000 Brand: Price: $ 80.29 |
Tachometer Control Unit (NLA) | 1 | $ 80.29 | ||
| 18 | 03212-0516B SCREW
SKU: 03212-0516B Weight: 0.060000 Brand: Price: $ 2.49 |
SCREW | 1 | $ 2.49 | ||
| 19 | 08322-01057 Washer
SKU: 08322-01057 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | ||
| 20 | 34853-94600 Engine Temp Support (NLA)
SKU: 34853-94600 Weight: 0.100000 Brand: Price: $ 2.44 |
Engine Temp Support (NLA) | 1 | $ 2.44 | 1988 to 1989 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
