Suzuki DT 85 Parts Listings 1988 to 2000

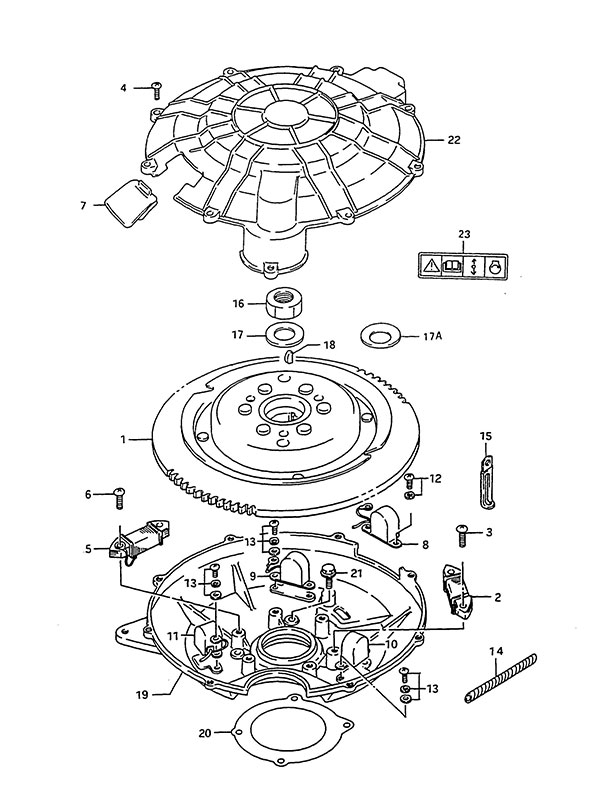

Fig. 12 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32102-95601 Flywheel (NLA)
SKU: 32102-95601 Weight: 10.000000 Brand: Price: $ 721.02 |
Flywheel (NLA) | 1 | $ 721.02 | 1988 to 1993 | |
| 1-2 | 32102-95611 Flywheel (NLA)
SKU: 32102-95611 Weight: 10.000000 Brand: Price: $ 571.73 |
Flywheel (NLA) | 1 | $ 571.73 | 1994 to 2000 | |
| 2-1 | 32120-95600 Battery Charge Coil (NLA)
SKU: 32120-95600 Weight: 0.250000 Brand: Price: $ 169.16 |
Battery Charge Coil (NLA) | 1 | $ 169.16 | 1988 to 1993 | |
| 2-2 | 32120-94720 Battery Charge Coil
SKU: 32120-94720 Weight: 0.400000 Brand: Price: $ 92.66 |
Battery Charge Coil | 1 | $ 92.66 | 1994 to 2000 | |
| 3 | 02112-36257 SCREW
SKU: 02112-36257 Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 2 | $ 2.72 | ||
| 4-1 | 09125-06022 Screw (NLA)
SKU: 09125-06022 Weight: 0.100000 Brand: Price: $ 1.09 |
Screw (NLA) | 9 | $ 1.09 | 1988 to 1994 | |
| 4-2 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 9 | $ 1.38 | 1995 to 2000 | |
| 5-1 | 32140-95600 Capacitor Charge Coil (NLA)
SKU: 32140-95600 Weight: 0.220000 Brand: Price: $ 138.91 |
Capacitor Charge Coil (NLA) | 1 | $ 138.91 | 1988 to 1993 | |
| 5-2 | 32140-94710 Capacitor Charge Coil
SKU: 32140-94710 Weight: 0.320000 Brand: Price: $ 110.79 |
Capacitor Charge Coil | 1 | $ 110.79 | 1994 to 2000 | |
| 6 | 02112-36207 Screw (NLA)
SKU: 02112-36207 Weight: 0.060000 Brand: Price: $ 1.35 |
Screw (NLA) | 2 | $ 1.35 | ||
| 7 | 11422-94700 Cap (NLA)
SKU: 11422-94700 Weight: 0.100000 Brand: Price: $ 3.00 |
Cap (NLA) | 1 | $ 3.00 | 1988 | |
| 8-1 | 32150-94600 Gear Counter Coil
SKU: 32150-94600 Weight: 0.200000 Brand: Price: $ 148.56 |
Gear Counter Coil | 1 | $ 148.56 | 1988 | |
| 8-2 | 32150-87E20 Gear Counter Coil (NLA)
SKU: 32150-87E20 Weight: 0.200000 Brand: Price: $ 140.57 |
Gear Counter Coil (NLA) | 1 | $ 140.57 | 1989 to 2000 | |
| 9 | 32160-94710 Ignition Timing Coil #1 (NLA)
SKU: 32160-94710 Weight: 0.250000 Brand: Price: $ 131.61 |
Ignition Timing Coil #1 (NLA) | 1 | $ 131.61 | ||
| 10 | 32170-94710 Ignition Timing Coil #2
SKU: 32170-94710 Weight: 0.125000 Brand: Price: $ 174.84 |
Ignition Timing Coil #2 | 1 | $ 174.84 | ||
| 11 | 32180-94710 #3 Ignition Timing Coil (NLA)
SKU: 32180-94710 Weight: 0.100000 Brand: Price: $ 131.61 |
#3 Ignition Timing Coil (NLA) | 1 | $ 131.61 | ||
| 12 | 02112-35127 SCREW 5X12
SKU: 02112-35127 Weight: 0.060000 Brand: Price: $ 1.54 |
SCREW 5X12 | 2 | $ 1.54 | ||
| 13 | 02112-75107 Screw (NLA)
SKU: 02112-75107 Weight: 0.100000 Brand: Price: $ 1.94 |
Screw (NLA) | 6 | $ 1.94 | ||
| 14 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 15 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 16 | 09140-18007 Nut (NLA)
SKU: 09140-18007 Weight: 0.120000 Brand: Price: $ 3.77 |
Nut (NLA) | 1 | $ 3.77 | ||
| 17 | 09160-18011 Washer
SKU: 09160-18011 Weight: 0.062500 Brand: Price: $ 5.96 |
Washer | 1 | $ 5.96 | ||
| 17A | 09164-18001 Washer
SKU: 09164-18001 Weight: 0.200000 Brand: Price: $ 3.30 |
Washer | 1 | $ 3.30 | ||
| 18 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.52 |
Woodruff Key 5mm | 1 | $ 2.52 | ||
| 19 | 11411-95601-0ED Upper Oil Seal Housing (NLA)
SKU: 11411-95601-0ED Weight: 0.100000 Brand: Price: $ 64.74 |
Upper Oil Seal Housing (NLA) | 1 | $ 64.74 | ||
| 20 | 11421-95610 Upper Oil Seal Hsg Gasket
SKU: 11421-95610 Weight: 0.060000 Brand: Price: $ 7.55 |
Upper Oil Seal Hsg Gasket | 1 | $ 7.55 | ||
| 21 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 22 | 11511-95600 Magneto Cover (NLA)
SKU: 11511-95600 Weight: 0.100000 Brand: Price: $ 16.61 |
Magneto Cover (NLA) | 1 | $ 16.61 | ||
| 23 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
