Suzuki DT 85 Parts Listings 1988 to 2000

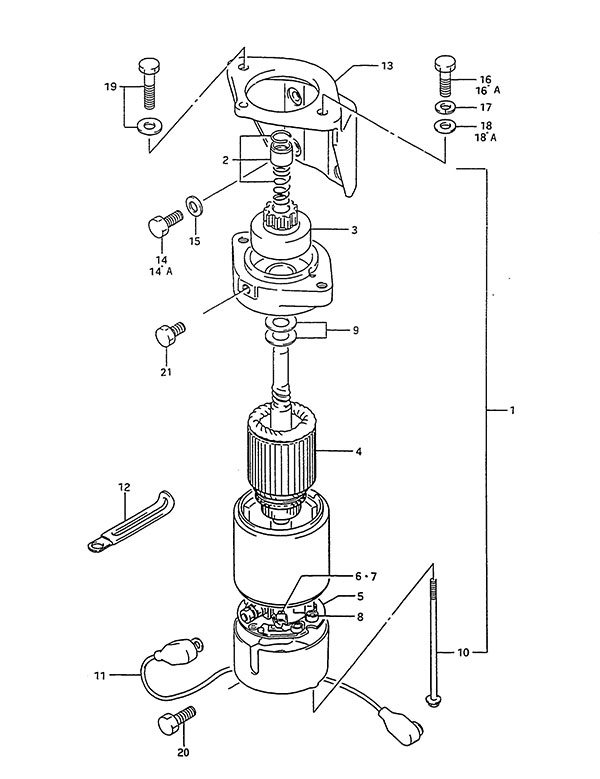

Fig. 11 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-95601 Starter Motor Assembly (NLA)
SKU: 31100-95601 Weight: 10.000000 Brand: Price: $ 855.97 |
Starter Motor Assembly (NLA) | 1 | $ 855.97 | ||
| 2 | 31312-94601 Pinion Stopper Set
SKU: 31312-94601 Weight: 0.250000 Brand: Price: $ 13.39 |
Pinion Stopper Set | 1 | $ 13.39 | ||
| 3 | 31320-95240 Pinion Assembly (NLA)
SKU: 31320-95240 Weight: 0.600000 Brand: Price: $ 210.00 |
Pinion Assembly (NLA) | 1 | $ 210.00 | ||
| 4 | 31310-94600 Armature (NLA)
SKU: 31310-94600 Weight: 5.000000 Brand: Price: $ 347.90 |
Armature (NLA) | 1 | $ 347.90 | ||
| 5 | 31173-95310 Brush Holder
SKU: 31173-95310 Weight: 0.160000 Brand: Price: $ 62.73 |
Brush Holder | 1 | $ 62.73 | ||
| 6 | 31131-95310 Brush (+)
SKU: 31131-95310 Weight: 0.060000 Brand: Price: $ 25.72 |
Brush (+) | 2 | $ 25.72 | ||
| 7 | 31131-95241 Brush
SKU: 31131-95241 Weight: 0.060000 Brand: Price: $ 14.27 |
Brush | 1 | $ 14.27 | ||
| 8 | 31135-95310 Spring (NLA)
SKU: 31135-95310 Weight: 0.060000 Brand: Price: $ 4.46 |
Spring (NLA) | 3 | $ 4.46 | ||
| 9 | 31360-87D00 Washer Kit (NLA)
SKU: 31360-87D00 Weight: 0.100000 Brand: Price: $ 4.35 |
Washer Kit (NLA) | 1 | $ 4.35 | ||
| 10 | 31281-94700 Through Bolt (NLA)
SKU: 31281-94700 Weight: 0.100000 Brand: Price: $ 3.99 |
Through Bolt (NLA) | 2 | $ 3.99 | ||
| 11 | 33820-95601 Starter Sub Cable Assembly (NLA)
SKU: 33820-95601 Weight: 5.000000 Brand: Price: $ 11.69 |
Starter Sub Cable Assembly (NLA) | 1 | $ 11.69 | ||
| 12 | 09404-10205 Clamp (NLA)
SKU: 09404-10205 Weight: 0.060000 Brand: Price: $ 1.60 |
Clamp (NLA) | 1 | $ 1.60 | ||
| 13 | 31911-95600-0ED Starting Motor Bracket (NLA)
SKU: 31911-95600-0ED Weight: 0.100000 Brand: Price: $ 34.03 |
Starting Motor Bracket (NLA) | 1 | $ 34.03 | ||
| 14 | 01500-08207 BOLT
SKU: 01500-08207 Weight: 0.200000 Brand: Price: $ 2.54 |
BOLT | 4 | $ 2.54 | 1988 to 1993 | |
| 14A | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 4 | $ 2.74 | 1994 to 2000 | |
| 15 | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 4 | $ 1.85 | 1988 to 1993 | |
| 16 | 01500-08257 BOLT
SKU: 01500-08257 Weight: 0.060000 Brand: Price: $ 2.52 |
BOLT | 1 | $ 2.52 | 1988 to 1993 | |
| 16A | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 | 1994 to 2000 | |
| 17 | 08321-01087 Lock Washer
SKU: 08321-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | 1988 to 1993 | |
| 18 | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | 1988 to 1993 | |
| 18A | 09160-08130 Washer (8.5x24x1.6)
SKU: 09160-08130 Weight: 0.125000 Brand: Price: $ 2.04 |
Washer (8.5x24x1.6) | 2 | $ 2.04 | 1994 to 2000 | |
| 19 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 1 | $ 3.54 | ||
| 20 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 21 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
