Suzuki DT 85 Parts Listings 1988 to 2000

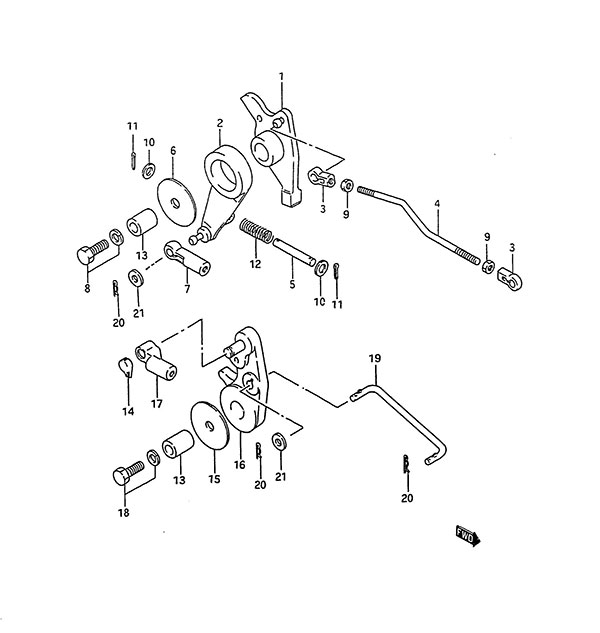

Fig. 9 - Throttle Link
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 19121-95600 Throttle Control Lever (NLA)
SKU: 19121-95600 Weight: 0.200000 Brand: Price: $ 9.68 |
Throttle Control Lever (NLA) | 1 | $ 9.68 | ||
| 2-1 | 19122-94702 Throttle Control Arm
SKU: 19122-94702 Weight: 0.200000 Brand: Price: $ 11.85 |
Throttle Control Arm | 1 | $ 11.85 | 1988 to 1994 Requires Ref# 20 21 | |
| 2-2 | 19122-94702 Throttle Control Arm
SKU: 19122-94702 Weight: 0.200000 Brand: Price: $ 11.85 |
Throttle Control Arm | 1 | $ 11.85 | 1995 to 2000 | |
| 3 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 2 | $ 4.52 | ||
| 4 | 19135-95611 Throttle Lever Rod (NLA)
SKU: 19135-95611 Weight: 0.100000 Brand: Price: $ 4.56 |
Throttle Lever Rod (NLA) | 1 | $ 4.56 | ||
| 5 | 19137-94700 Throttle Lever Damper Pin (NLA)
SKU: 19137-94700 Weight: 0.060000 Brand: Price: $ 5.76 |
Throttle Lever Damper Pin (NLA) | 1 | $ 5.76 | ||
| 6 | 19211-95600 Throttle Lever Washer (NLA)
SKU: 19211-95600 Weight: 0.060000 Brand: Price: $ 3.27 |
Throttle Lever Washer (NLA) | 1 | $ 3.27 | ||
| 7 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.35 |
Cable Connector | 1 | $ 5.35 | ||
| 8 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 1 | $ 6.05 | ||
| 9 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 10 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
| 11 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 12 | 09440-09021 Spring
SKU: 09440-09021 Weight: 0.060000 Brand: Price: $ 2.20 |
Spring | 1 | $ 2.20 | ||
| 13 | 09180-08150 Spacer (8.1x15x17) (NLA)
SKU: 09180-08150 Weight: 0.100000 Brand: Price: $ 5.67 |
Spacer (8.1x15x17) (NLA) | 2 | $ 5.67 | ||
| 14 | 19113-95300 Connector Cap
SKU: 19113-95300 Weight: 0.060000 Brand: Price: $ 2.26 |
Connector Cap | 1 | $ 2.26 | ||
| 15 | 19211-95600 Throttle Lever Washer (NLA)
SKU: 19211-95600 Weight: 0.060000 Brand: Price: $ 3.27 |
Throttle Lever Washer (NLA) | 1 | $ 3.27 | ||
| 16 | 23211-95601 Clutch Control Arm (NLA)
SKU: 23211-95601 Weight: 0.100000 Brand: Price: $ 17.78 |
Clutch Control Arm (NLA) | 1 | $ 17.78 | ||
| 17 | 67467-95201 Cable Connector
SKU: 67467-95201 Weight: 0.060000 Brand: Price: $ 5.49 |
Cable Connector | 1 | $ 5.49 | ||
| 18 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 1 | $ 6.05 | ||
| 19 | 23111-94701 Clutch Link (NLA)
SKU: 23111-94701 Weight: 0.100000 Brand: Price: $ 12.93 |
Clutch Link (NLA) | 1 | $ 12.93 | ||
| 20 | 09385-06003 Pin (NLA)
SKU: 09385-06003 Weight: 0.060000 Brand: Price: $ 1.21 |
Pin (NLA) | 3 | $ 1.21 | ||
| 21 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 3 | $ 1.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
