Suzuki DT 85 Parts Listings 1988 to 2000

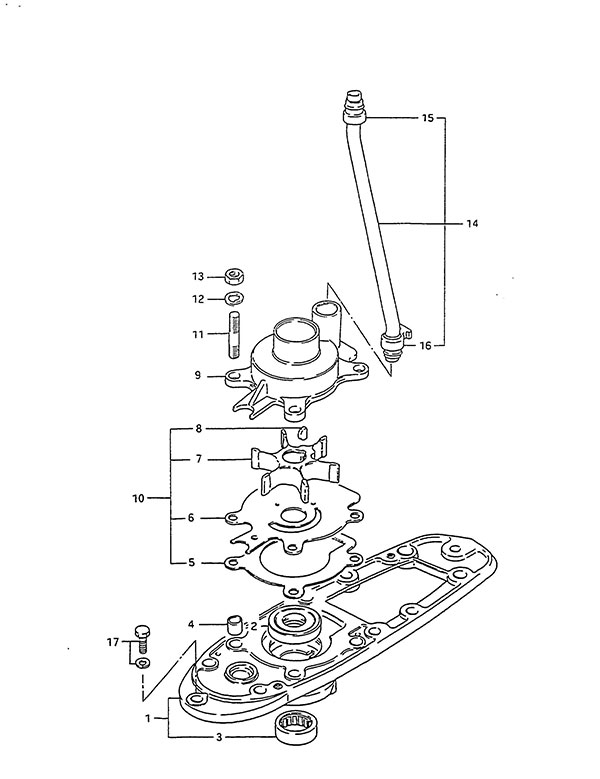

Fig. 8 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 56130-95511-0ED Drive Shaft Housing (NLA)
SKU: 56130-95511-0ED Weight: 1.800000 Brand: Price: $ 293.26 |
Drive Shaft Housing (NLA) | 1 | $ 293.26 | ||
| 2-1 | 09282-20007 Oil Seal (NLA)
SKU: 09282-20007 Weight: 0.060000 Brand: Price: $ 8.93 |
Oil Seal (NLA) | 2 | $ 8.93 | S/N 461087 Older | |
| 2-2 | 09282-20008 Oil Seal
SKU: 09282-20008 Weight: 0.060000 Brand: Price: $ 9.79 |
Oil Seal | 2 | $ 9.79 | S/N 461088 Newer | |
| 3 | 09263-25025 Bearing (25x33x15)
SKU: 09263-25025 Weight: 0.250000 Brand: Price: $ 25.46 |
Bearing (25x33x15) | 1 | $ 25.46 | ||
| 4 | 09206-11016 Pin (11x12) (NLA)
SKU: 09206-11016 Weight: 0.060000 Brand: Price: $ 3.33 |
Pin (11x12) (NLA) | 4 | $ 3.33 | ||
| 5 | 17472-95200 Water Pump Plate Gasket
SKU: 17472-95200 Weight: 0.060000 Brand: Price: $ 2.46 |
Water Pump Plate Gasket | 1 | $ 2.46 | ||
| 6 | 17471-95504 Water Pump Plate
SKU: 17471-95504 Weight: 0.120000 Brand: Price: $ 10.14 |
Water Pump Plate | 1 | $ 10.14 | ||
| 7 | 17461-95302 Water Pump Impeller
SKU: 17461-95302 Weight: 0.060000 Brand: Price: $ 34.66 |
Water Pump Impeller | 1 | $ 34.66 | ||
| 8 | 09420-04005 Key
SKU: 09420-04005 Weight: 0.060000 Brand: Price: $ 5.13 |
Key | 1 | $ 5.13 | ||
| 9-1 | 17411-95206 Water Pump Case (NLA)
SKU: 17411-95206 Weight: 1.020000 Brand: Price: $ 113.20 |
Water Pump Case (NLA) | 1 | $ 113.20 | 1988 to 1996 Requires Ref# 13-2 | |
| 9-2 | 17411-95206 Water Pump Case (NLA)
SKU: 17411-95206 Weight: 1.020000 Brand: Price: $ 113.20 |
Water Pump Case (NLA) | 1 | $ 113.20 | 1997 to 2000 | |
| 10 | 17400-95351 Water Pump Repair Kit DT75 / DT85
SKU: 17400-95351 Weight: 0.200000 Brand: Price: $ 50.39 |
Water Pump Repair Kit DT75 / DT85 | 1 | $ 50.39 | Optional | |
| 11 | 09108-08088 Stud Bolt (NLA)
SKU: 09108-08088 Weight: 0.600000 Brand: Price: $ 2.84 |
Stud Bolt (NLA) | 4 | $ 2.84 | ||
| 12 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 4 | $ 1.49 | ||
| 13-1 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 4 | $ 2.52 | 1988 to 1996 | |
| 13-2 | 09140-08019 Nut (8mm)
SKU: 09140-08019 Weight: 0.060000 Brand: Price: $ 2.02 |
Nut (8mm) | 4 | $ 2.02 | 1997 to 2000 | |
| 14 | 17560-95503 Water Tube (L)(NLA)
SKU: 17560-95503 Weight: 0.200000 Brand: Price: $ 21.12 |
Water Tube (L)(NLA) | 1 | $ 21.12 | ||
| 15 | 17563-95500 Water Tube Bushing (NLA)
SKU: 17563-95500 Weight: 0.060000 Brand: Price: $ 3.17 |
Water Tube Bushing (NLA) | 1 | $ 3.17 | Upper | |
| 16 | 17564-95502 Water Pump Bushing
SKU: 17564-95502 Weight: 0.060000 Brand: Price: $ 2.77 |
Water Pump Bushing | 1 | $ 2.77 | Lower | |
| 17 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 1 | $ 5.05 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
