Suzuki DT 85 Parts Listings 1995 to 2000

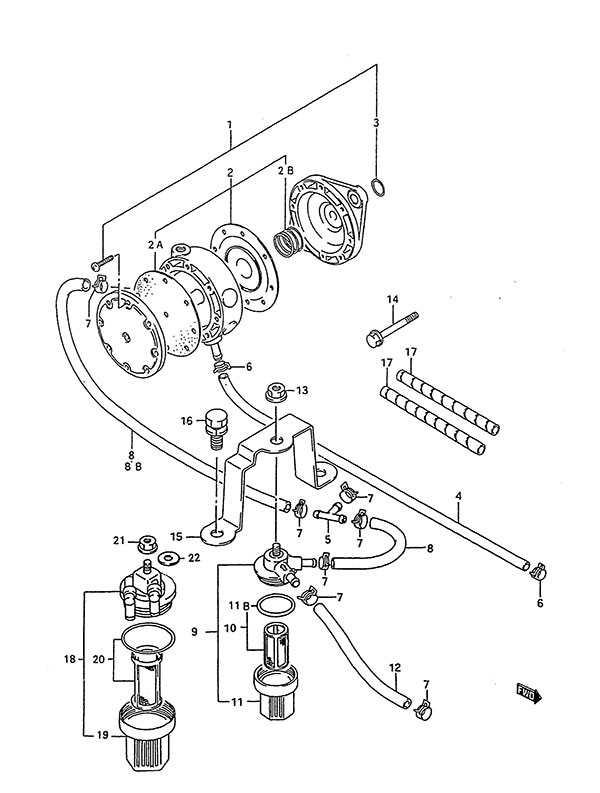

Fig. 6A - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-9560V Fuel Pump Assembly (NLA)
SKU: 15100-9560V Weight: 0.760000 Brand: Price: $ 179.19 |
Fuel Pump Assembly (NLA) | 1 | $ 179.19 | ||
| 2 | 15100-7281V Fuel Pump Diaphragm Set
SKU: 15100-7281V Weight: 0.125000 Brand: Price: $ 30.28 |
Fuel Pump Diaphragm Set | 1 | $ 30.28 | ||
| 2A | 15142-68010 Fuel Pump Gasket
SKU: 15142-68010 Weight: 0.060000 Brand: Price: $ 4.67 |
Fuel Pump Gasket | 1 | $ 4.67 | ||
| 2B | 15182-68011 Spring
SKU: 15182-68011 Weight: 0.060000 Brand: Price: $ 1.10 |
Spring | 1 | $ 1.10 | ||
| 3 | 15165-93010 Fuel Pump O-Ring
SKU: 15165-93010 Weight: 0.060000 Brand: Price: $ 3.53 |
Fuel Pump O-Ring | 1 | $ 3.53 | ||
| 4 | 09352-50006-00B Hose (5x9x2000)
SKU: 09352-50006-00B Weight: 0.250000 Brand: Price: $ 17.89 |
Hose (5x9x2000) | 1 | $ 17.89 | Pump to Carb L:2000->650 | |
| 5 | 09367-08005 3 Way
SKU: 09367-08005 Weight: 0.060000 Brand: Price: $ 4.18 |
3 Way | 1 | $ 4.18 | ||
| 6 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 2 | $ 1.78 | ||
| 7 | 09401-10409 Clip
SKU: 09401-10409 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 6 | $ 2.27 | ||
| 8-1 | 09352-70113-600 Hose (7x11x600)
SKU: 09352-70113-600 Weight: 0.125000 Brand: Price: $ 11.88 |
Hose (7x11x600) | 2 | $ 11.88 | Filter to Pump L:600->60 1995 to 1996 | |
| 8-2 | 09352-70113-600 Hose (7x11x600)
SKU: 09352-70113-600 Weight: 0.125000 Brand: Price: $ 11.88 |
Hose (7x11x600) | 1 | $ 11.88 | Filter to 3 Way L:600->50 1997 to 2000 | |
| 8B | 09352-70113-600 Hose (7x11x600)
SKU: 09352-70113-600 Weight: 0.125000 Brand: Price: $ 11.88 |
Hose (7x11x600) | 1 | $ 11.88 | 3 Way to Pump L:600->60 1997 to 2000 | |
| 9 | 15410-95541 Fuel Filter Assy
SKU: 15410-95541 Weight: 0.120000 Brand: Price: $ 24.50 |
Fuel Filter Assy | 1 | $ 24.50 | 1995 to 1996 | |
| 10 | 15430-93411 Fuel Filter Strainer Set
SKU: 15430-93411 Weight: 0.060000 Brand: Price: $ 11.05 |
Fuel Filter Strainer Set | 1 | $ 11.05 | 1995 to 1996 | |
| 11 | 15413-93400 Fuel Strainer Cup (NLA)
SKU: 15413-93400 Weight: 0.060000 Brand: Price: $ 5.82 |
Fuel Strainer Cup (NLA) | 1 | $ 5.82 | 1995 to 1996 | |
| 11B | 15415-93400 Fuel Strainer O-Ring
SKU: 15415-93400 Weight: 0.060000 Brand: Price: $ 2.18 |
Fuel Strainer O-Ring | 1 | $ 2.18 | 1995 to 1996 | |
| 12 | 09352-70113-600 Hose (7x11x600)
SKU: 09352-70113-600 Weight: 0.125000 Brand: Price: $ 11.88 |
Hose (7x11x600) | 1 | $ 11.88 | Connector to Filter L:600->420 | |
| 13 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | 1995 to 1996 | |
| 14 | 02162-06207 SCREW
SKU: 02162-06207 Weight: 0.060000 Brand: Price: $ 1.51 |
SCREW | 2 | $ 1.51 | ||
| 15 | 15421-95513 Fuel Filter Bracket
SKU: 15421-95513 Weight: 0.100000 Brand: Price: $ 6.50 |
Fuel Filter Bracket | 1 | $ 6.50 | ||
| 16-1 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 2 | $ 3.07 | 1995 to 1996 | |
| 16-2 | 01570-06167 BOLT
SKU: 01570-06167 Weight: 0.100000 Brand: Price: $ 2.62 |
BOLT | 2 | $ 2.62 | 1997 to 2000 | |
| 17 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 2 | $ 8.45 | L:540->65 | |
| 18 | 15410-95541 Fuel Filter Assy
SKU: 15410-95541 Weight: 0.120000 Brand: Price: $ 24.50 |
Fuel Filter Assy | 1 | $ 24.50 | 1997 to 2000 | |
| 19 | 15413-87D10 Fuel Strainer Cup
SKU: 15413-87D10 Weight: 0.060000 Brand: Price: $ 9.10 |
Fuel Strainer Cup | 1 | $ 9.10 | 1997 to 2000 | |
| 20 | 15430-87D10 Fuel Filter Strainer Set
SKU: 15430-87D10 Weight: 0.060000 Brand: Price: $ 12.95 |
Fuel Filter Strainer Set | 1 | $ 12.95 | 1997 to 2000 | |
| 21 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | 1997 to 2000 | |
| 22 | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 1 | $ 1.85 | 1997 to 2000 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
