Suzuki DT 85 Parts Listings 1988 to 1994

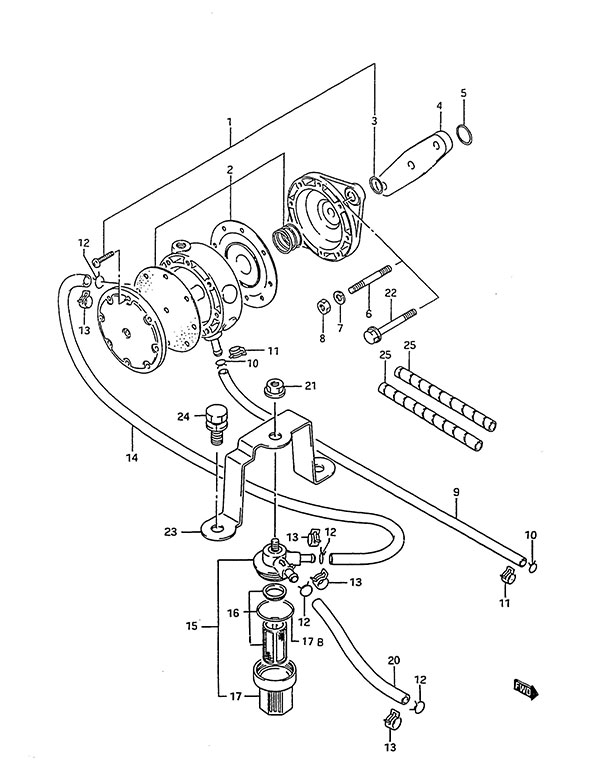

Fig. 6 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-9560V Fuel Pump Assembly (NLA)
SKU: 15100-9560V Weight: 0.760000 Brand: Price: $ 179.19 |
Fuel Pump Assembly (NLA) | 1 | $ 179.19 | ||
| 2 | 15100-7281V Fuel Pump Diaphragm Set
SKU: 15100-7281V Weight: 0.125000 Brand: Price: $ 30.28 |
Fuel Pump Diaphragm Set | 1 | $ 30.28 | ||
| 3 | 15165-93010 Fuel Pump O-Ring
SKU: 15165-93010 Weight: 0.060000 Brand: Price: $ 3.53 |
Fuel Pump O-Ring | 1 | $ 3.53 | ||
| 4 | 15322-93000 Fuel Pump Insulator(NLA)
SKU: 15322-93000 Weight: 0.060000 Brand: Price: $ 13.35 |
Fuel Pump Insulator(NLA) | 1 | $ 13.35 | ||
| 5 | 09280-12012 O-Ring
SKU: 09280-12012 Weight: 0.060000 Brand: Price: $ 4.73 |
O-Ring | 1 | $ 4.73 | ||
| 6 | 01421-06257 BOLT, STUD
SKU: 01421-06257 Weight: 0.125000 Brand: Price: $ 2.62 |
BOLT, STUD | 2 | $ 2.62 | 1988 to 1990 | |
| 7 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 2 | $ 1.85 | 1988 to 1990 | |
| 8 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 2 | $ 1.85 | 1988 to 1990 | |
| 9 | 09352-50006-00B Hose (5x9x2000)
SKU: 09352-50006-00B Weight: 0.250000 Brand: Price: $ 17.89 |
Hose (5x9x2000) | 1 | $ 17.89 | Pump to Carb L:2000->650 | |
| 10 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 2 | $ 1.86 | 1988 to 1990 | |
| 11 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 2 | $ 1.78 | 1991 to 1994 | |
| 12 | 09401-10401 Fuel Hose Clamp
SKU: 09401-10401 Weight: 0.125000 Brand: Price: $ 1.44 |
Fuel Hose Clamp | 4 | $ 1.44 | 1988 to 1990 | |
| 13 | 09401-10409 Clip
SKU: 09401-10409 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 4 | $ 2.27 | 1991 to 1994 | |
| 14 | 09352-70113-600 Hose (7x11x600)
SKU: 09352-70113-600 Weight: 0.125000 Brand: Price: $ 11.88 |
Hose (7x11x600) | 1 | $ 11.88 | Filter to Pump L:600->105 | |
| 15 | 15410-95541 Fuel Filter Assy
SKU: 15410-95541 Weight: 0.120000 Brand: Price: $ 24.50 |
Fuel Filter Assy | 1 | $ 24.50 | ||
| 16-1 | 15430-93412 Fuel Filter Strainer Set
SKU: 15430-93412 Weight: 0.060000 Brand: Price: $ 10.52 |
Fuel Filter Strainer Set | 1 | $ 10.52 | S/N 461652 Older | |
| 16-2 | 15430-93411 Fuel Filter Strainer Set
SKU: 15430-93411 Weight: 0.060000 Brand: Price: $ 11.05 |
Fuel Filter Strainer Set | 1 | $ 11.05 | S/N 461653 Newer | |
| 17 | 15413-93400 Fuel Strainer Cup (NLA)
SKU: 15413-93400 Weight: 0.060000 Brand: Price: $ 5.82 |
Fuel Strainer Cup (NLA) | 1 | $ 5.82 | ||
| 17B | 15415-93400 Fuel Strainer O-Ring
SKU: 15415-93400 Weight: 0.060000 Brand: Price: $ 2.18 |
Fuel Strainer O-Ring | 1 | $ 2.18 | ||
| 20 | 09352-70113-600 Hose (7x11x600)
SKU: 09352-70113-600 Weight: 0.125000 Brand: Price: $ 11.88 |
Hose (7x11x600) | 1 | $ 11.88 | Connector to Filter L:600->420 | |
| 21 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 22 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | 1991 to 1994 | |
| 23 | 15421-95513 Fuel Filter Bracket
SKU: 15421-95513 Weight: 0.100000 Brand: Price: $ 6.50 |
Fuel Filter Bracket | 1 | $ 6.50 | ||
| 24 | 09117-06040-XC0 Bolt (6x15)
SKU: 09117-06040-XC0 Weight: 0.060000 Brand: Price: $ 3.07 |
Bolt (6x15) | 2 | $ 3.07 | ||
| 25 | 16911-92E20 Protector
SKU: 16911-92E20 Weight: 0.060000 Brand: Price: $ 8.45 |
Protector | 1 | $ 8.45 | L:540->65 |
